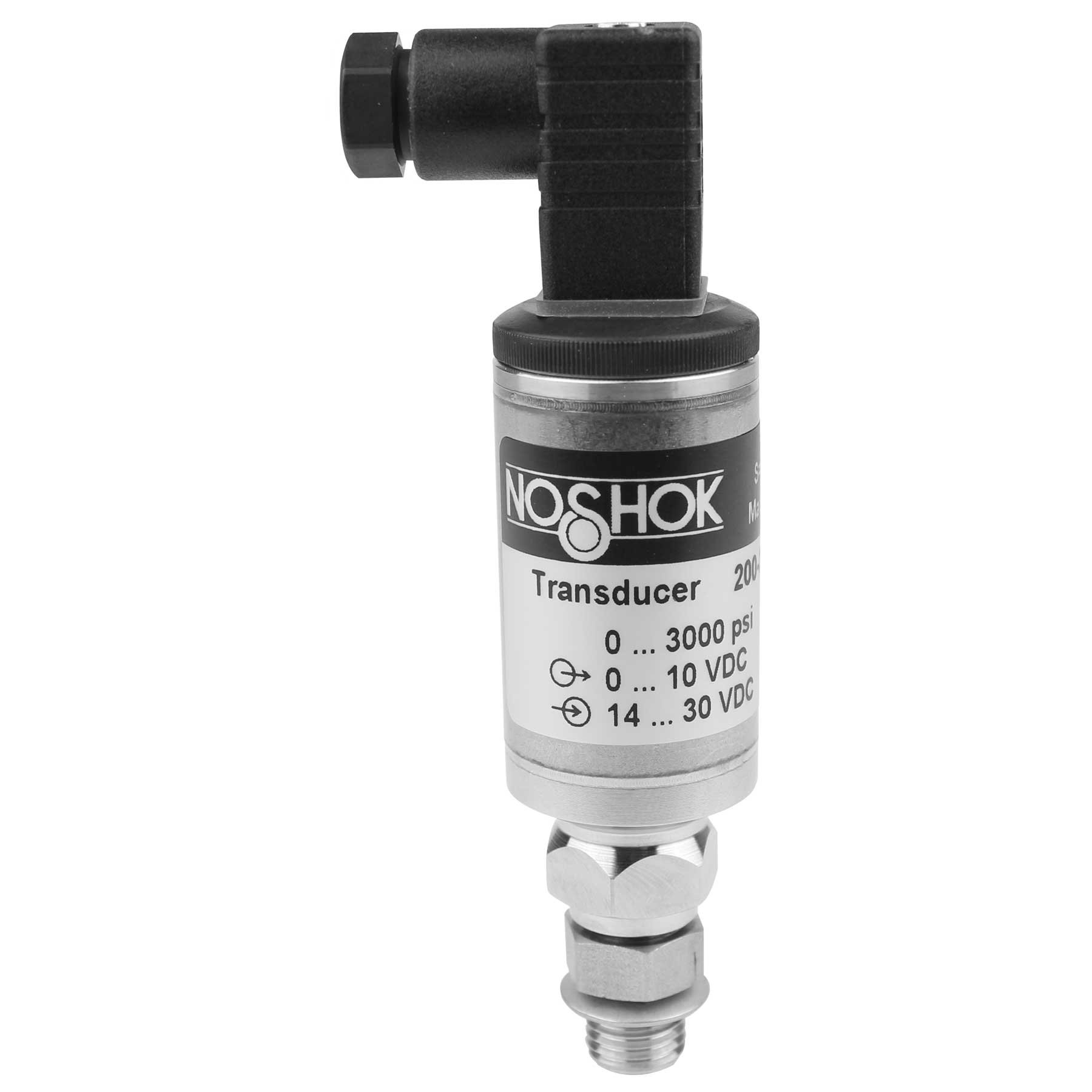

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

NOSHOK 200 Series High Performance Voltage Output Pressure Transducer

Be the first to review this item

Product Specifications
Manufacturer Series Number
200
Measurement Accuracy
+/-0.5%
Material Type
Stainless Steel 316
Temperature Range
-40/185  Degrees Fahrenheit
Brand Name
NOSHOK
Special Features
Stainless Steel 316
System of Measurement
Inch

This item is no longer available

Free Standard Shipping! on orders over $50.00.
(limited-time offer, certain restrictions apply) (Details)

  • Share
Currently showing 1-20 of 68 Next 20 »
Number of items ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All
Currently showing 1-20 of 68 Next 20 »
1 B008N0OB5Y Temporarily out of stock. Order now and we'll deliver when available. $439.74 Buy Options
1 B008N0OCA8 Temporarily out of stock. Order now and we'll deliver when available. $439.74 Buy Options
1 B008N0OD84 Temporarily out of stock. Order now and we'll deliver when available. $486.68 Buy Options
1 B008N0OEBK Temporarily out of stock. Order now and we'll deliver when available. $465.61 Buy Options
1 B008N0OFB4 Temporarily out of stock. Order now and we'll deliver when available. $512.15 Buy Options
1 B008N0OG4K Temporarily out of stock. Order now and we'll deliver when available. $439.74 Buy Options
1 B008N0OHGC Temporarily out of stock. Order now and we'll deliver when available. $439.74 Buy Options
1 B008N0OIFM Temporarily out of stock. Order now and we'll deliver when available. $439.74 Buy Options
1 B008N0OJRY Temporarily out of stock. Order now and we'll deliver when available. $465.61 Buy Options
1 B008N0OKT6 Temporarily out of stock. Order now and we'll deliver when available. $512.15 Buy Options
1 B008N0OLXQ Temporarily out of stock. Order now and we'll deliver when available. $439.74 Buy Options
1 B008N0ON0M Temporarily out of stock. Order now and we'll deliver when available. $486.68 Buy Options
1 B008N0OO1K Temporarily out of stock. Order now and we'll deliver when available. $439.74 Buy Options
1 B008N0OP0K Temporarily out of stock. Order now and we'll deliver when available. $486.68 Buy Options
1 B008N0OQRW Temporarily out of stock. Order now and we'll deliver when available. $439.74 Buy Options
1 B008N0OS6G Temporarily out of stock. Order now and we'll deliver when available. $439.74 Buy Options
1 B008N0OTGU Temporarily out of stock. Order now and we'll deliver when available. $486.68 Buy Options
1 B008N0OUH8 2 $410.02 Buy Options
1 B008N0OVKO 3 $477.81 Buy Options
1 B008N0OWLM Temporarily out of stock. Order now and we'll deliver when available. $439.74 Buy Options

Key Features

  • Highly repeatable, shock resistant transmitters with excellent long-term stability
  • Advanced diffused semi-conductor and sputtered thin film sensor for maximum stability
  • Welded stainless steel pressure chamber
  • High alternating load resistance; high overpressure protection
  • 3 year warranty

Product Description

High Performance Voltage Output Pressure Transducers are designed to provide a previously unequalled level of performance, utilizing diffused semiconductor and sputtered thin film strain gage technology. 200 Series transducers are highly repeatable, shock resistant and are extremely stable over long periods of time. CE compliance which includes substantial levels of RFI, EMI and ESD noise protection combined with reverse polarity and over-voltage protection hardens the product so it performs well in the most demanding applications. Advanced manufacturing techniques combined with technologically advanced standard features allow NOSHOK to offer a level of performance previously found only on transducers costing hundreds of dollars more. Final calibration tests performed on all NOSHOK transmitters prior to shipment ensures 100 percent "out of the box" reliability. Compact size, affordable price. Applicable for hydraulic and pneumatic systems, injection molding machines, railroad engine controls, HVAC systems, stamping and forming presses, refrigeration controls, industrial machinery and machine tools, pumps and compressors. Mini-Hirschmann (DIN EN 175301-803 Form C) electrical connection. 0 Vdc to 10 Vdc, 3-wire Output Signal. Process Connection: 1/4" NPT Male. 3 times Full Scale Proof Pressure. 3.8 times Full Scale Burst Pressure. +/-0.5 percent full scale (BFSL) Accuracy; (Includes the effects of non-linearity, hysteresis, non-repeatability, zero point and full scale errors). Repeatability: less than or equal to +/-0.05 percent Full Scale. Hysteresis: less than or equal to +/-0.1 percent Full Scale. Stability: less than or equal to +/-0.2 percent Full Scale for 1 year, non-accumulating. Response time: less than or equal to 1 ms (between 10 percent and 90 percent Full Scale). Power supply 10 Vdc to 30 Vdc, unregulated. Load limitations: less than or equal to (Vpower supply -10)/.020 Amp. 316 stainless steel Housing material.
