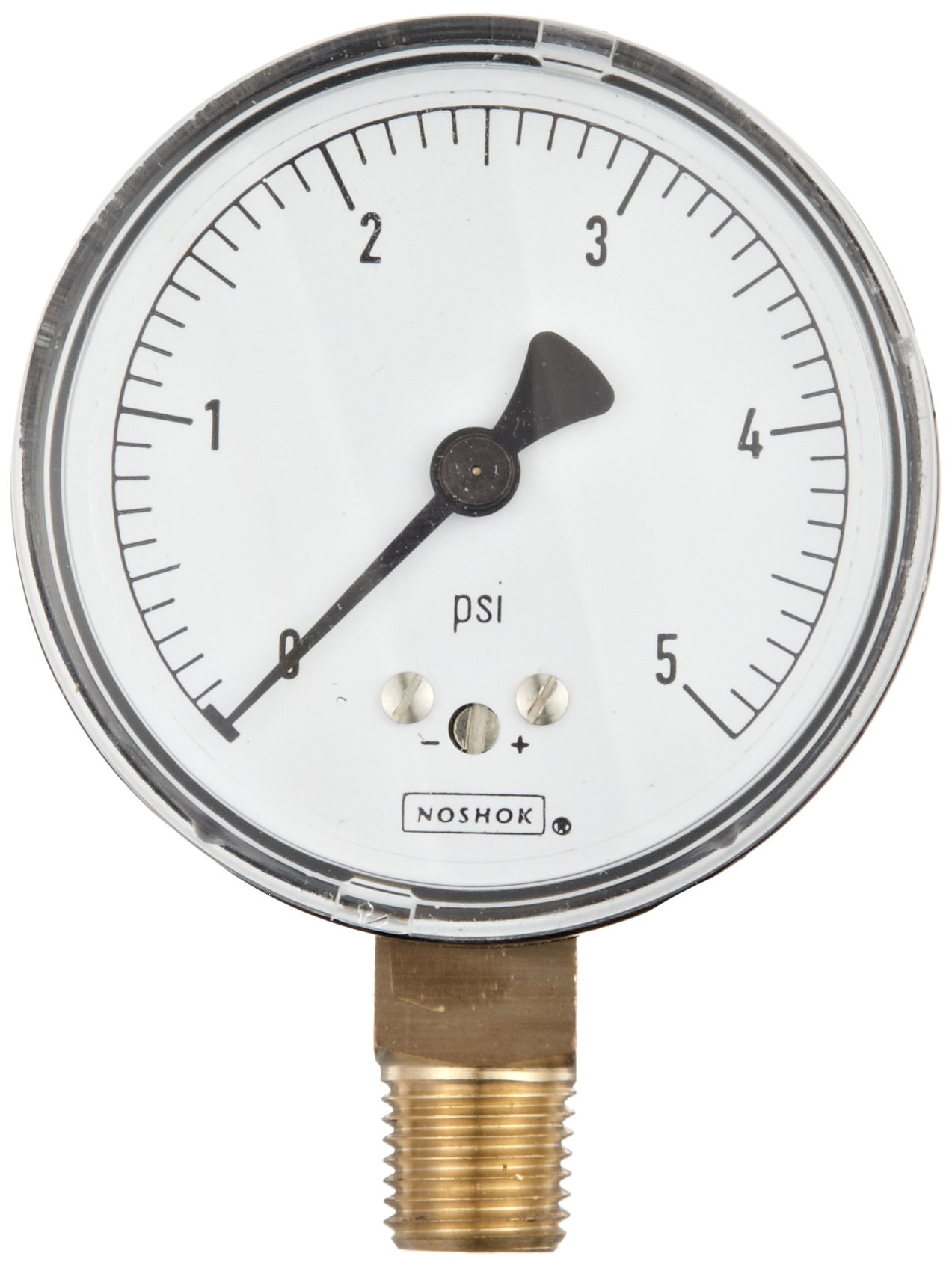

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

NOSHOK 200 Series Steel Dry Dial Indicating Low Pressure Diaphragm Gauge

Be the first to review this item

Product Specifications
Number of Items
1
Case
Steel
UNSPSC Code
41112412
Brand Name
NOSHOK

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Sep 3? Order in-stock items in the next 19 hrs 43 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 41 Next 20 »
Dial Size Special Features Pressure Range Mount Accuracy Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All
Currently showing 1-20 of 41 Next 20 »
2-1/2" -100-0"WC -100-0"WC Bottom Mount +/-1.5% 25-200-100-inH2O-vac B008N0RVMO yes $71.18 Buy Options
2-1/2" -100-0"WC -100-0"WC Center Back Mount +/-1.5% 25-210-100-inH2O-vac B008N0R6E2 Usually ships in 2 to 4 weeks $71.86 Buy Options
2-1/2" -15-0"WC -15-0"WC Center Back Mount +/-1.5% 25-210-15-inH2O-vac B008N0R7OG Usually ships in 2 to 4 weeks $71.86 Buy Options
2-1/2" -15-0"WC -15-0"WC Bottom Mount +/-1.5% 25-200-15-inH2O-vac B008N0RWJQ Usually ships in 2 to 4 weeks $71.18 Buy Options
2-1/2" -30-0"WC -30-0"WC Bottom Mount +/-1.5% 25-200-30-inH2O-vac B008N0RXKO Usually ships in 2 to 4 weeks $71.18 Buy Options
2-1/2" -30-0"WC -30-0"WC Center Back Mount +/-1.5% 25-210-30-inH2O-vac B008N0R8G8 yes $71.86 Buy Options
2-1/2" -60-0"WC -60-0"WC Bottom Mount +/-1.5% 25-200-60-inH2O-vac B008N0RYQ2 Usually ships in 2 to 4 weeks $71.18 Buy Options
2-1/2" -60-0"WC -60-0"WC Center Back Mount +/-1.5% 25-210-60-inH2O-vac B008N0R9L2 Usually ships in 2 to 4 weeks $71.86 Buy Options
2-1/2" 0-10 oz/in² 0-10 oz/in² Bottom Mount +/-1.5% 25-200-10-oz/in2 B008N0RCOG yes $71.18 Buy Options
2-1/2" 0-10 oz/in² 0-10 oz/in² Center Back Mount +/-1.5% 25-210-10-oz/in2 B008N0QKPS Usually ships in 2 to 4 weeks $71.86 Buy Options
2-1/2" 0-10 psi 0-10 psi Bottom Mount +/-1.5% 25-200-10-psi B008N0RE08 yes $71.18 Buy Options
2-1/2" 0-10 psi 0-10 psi Center Back Mount +/-1.5% 25-210-10-psi B008N0QLMU Usually ships in 2 to 4 weeks $71.86 Buy Options
2-1/2" 0-10"WC 0-10"WC Center Back Mount +/-1.5% 25-210-10-inH2O B008N0QMMO yes $71.86 Buy Options
2-1/2" 0-10"WC 0-10"WC Bottom Mount +/-1.5% 25-200-10-inH2O B008N0RF3E yes $71.18 Buy Options
2-1/2" 0-100 oz/in² 0-100 oz/in² Bottom Mount +/-1.5% 25-200-100-oz/in2 B008N0RGG0 Usually ships in 2 to 4 weeks $71.18 Buy Options
2-1/2" 0-100 oz/in² 0-100 oz/in² Center Back Mount +/-1.5% 25-210-100-oz/in2 B008N0QNHS Usually ships in 2 to 4 weeks $71.86 Buy Options
2-1/2" 0-100"WC 0-100"WC Center Back Mount +/-1.5% 25-210-100-inH2O B008N0QOFE Usually ships in 2 to 4 weeks $71.86 Buy Options
2-1/2" 0-15 oz/in² 0-15 oz/in² Center Back Mount +/-1.5% 25-210-15-oz/in2 B008N0QQCU Usually ships in 2 to 4 weeks $71.86 Buy Options
2-1/2" 0-15 oz/in² 0-15 oz/in² Bottom Mount +/-1.5% 25-200-15-oz/in2 B008N0RIIQ Usually ships in 2 to 4 weeks $71.18 Buy Options
2-1/2" 0-15"WC 0-15"WC Bottom Mount +/-1.5% 25-200-15-inH2O B008N0RJG2 Usually ships in 2 to 4 weeks $71.18 Buy Options

Key Features

  • Brass wetted parts for measuring non-corrosive liquid and gas pressure
  • Circular dry dial is 2.5" (63mm) in diameter, and enclosed in a steel case for corrosion resistance
  • Measures pressures with single or dual scale in inch water column (WC), psi, or oz./square inch
  • Display accuracy is + or - 1.5% of full scale value (ASME B40.100 Grade A)
  • Lower mount or center back male connection with 1/4" NPT rate

Product Description

The NoShok 200 series 2.5" (63 mm) pressure gauge has brass wetted parts, a dry circular dial enclosed in a steel case, a lower mount or center back male 1/4" NPT connection, and measures pressure with a single or dual scale with an accuracy of + or - 1.5%. The brass wetted parts are for measuring non-corrosive liquid and gas pressure. The black painted steel case provides corrosion resistance. The lens on the dry 2.5" dial is clear acrylic. The dial is white aluminum with black markings, is UV resistant, and has a black finished aluminum pointer. The gauge measures pressure with either a single or a dual scale in inch water column (WC), psi, or oz./square inch. The gauge is accurate to + or - 1.5% over the entire range of the gauge, American Society of Mechanical Engineers (ASME) B40.100 Grade A accuracy class. The male connection is mounted on the bottom or center back of the gauge and has a 1/4" NPT (National Pipe Thread) rate. The movement is brass and nickel-silver with highly polished bearing surfaces. The gauge has an ultra-sensitive copper alloy diaphragm capsule. The gauge operates in both fluctuating and static pressures up to 90% of the dial range. The ambient temperature for the gauge is 0 to 140 degrees F (-18 to 60 degrees C). The media temperature range is -4 to 140 degrees F (-20 to 60 degrees C). This pressure gauge is suitable for medical, biomedical, HVAC, gas distribution, filtration, burner and gas combustion service, and wastewater treatment applications.

Pressure gauges are instruments used to measure the pressure of a gas or liquid inside a vessel and, often, to help ensure the optimal amount of pressure for a given application. Pressure gauges can range from everyday instruments, such as those used to measure the air pressure in a car or bicycle tire, to highly accurate gauges used in mechanical and industrial processing. Most often, pressure gauges measure pressure relative to another reference. For instance, gauge pressure measures pressure relative to ambient air. An example of a pressure gauge measuring relative to ambient air is a tire pressure gauge or a blood pressure gauge. Differential pressure is the difference in pressure between two points, such as when measuring liquid flow along various points in a pipeline. An absolute pressure gauge measures pressure relative to a perfect vacuum, such as an atmospheric or barometric pressure gauge. All types of pressure gauges include either a male or a female mount to connect to the vessel where pressure is being measured, and display results on a dial with varying increments of measure across a given range.

NoShok manufactures temperature and pressure measurement instruments, including pressure gauges, transducers and indicators, level transmitters, temperature switches and transmitters, and bimetal thermometers. The company, founded in 1967, is headquartered in Berea, OH.
