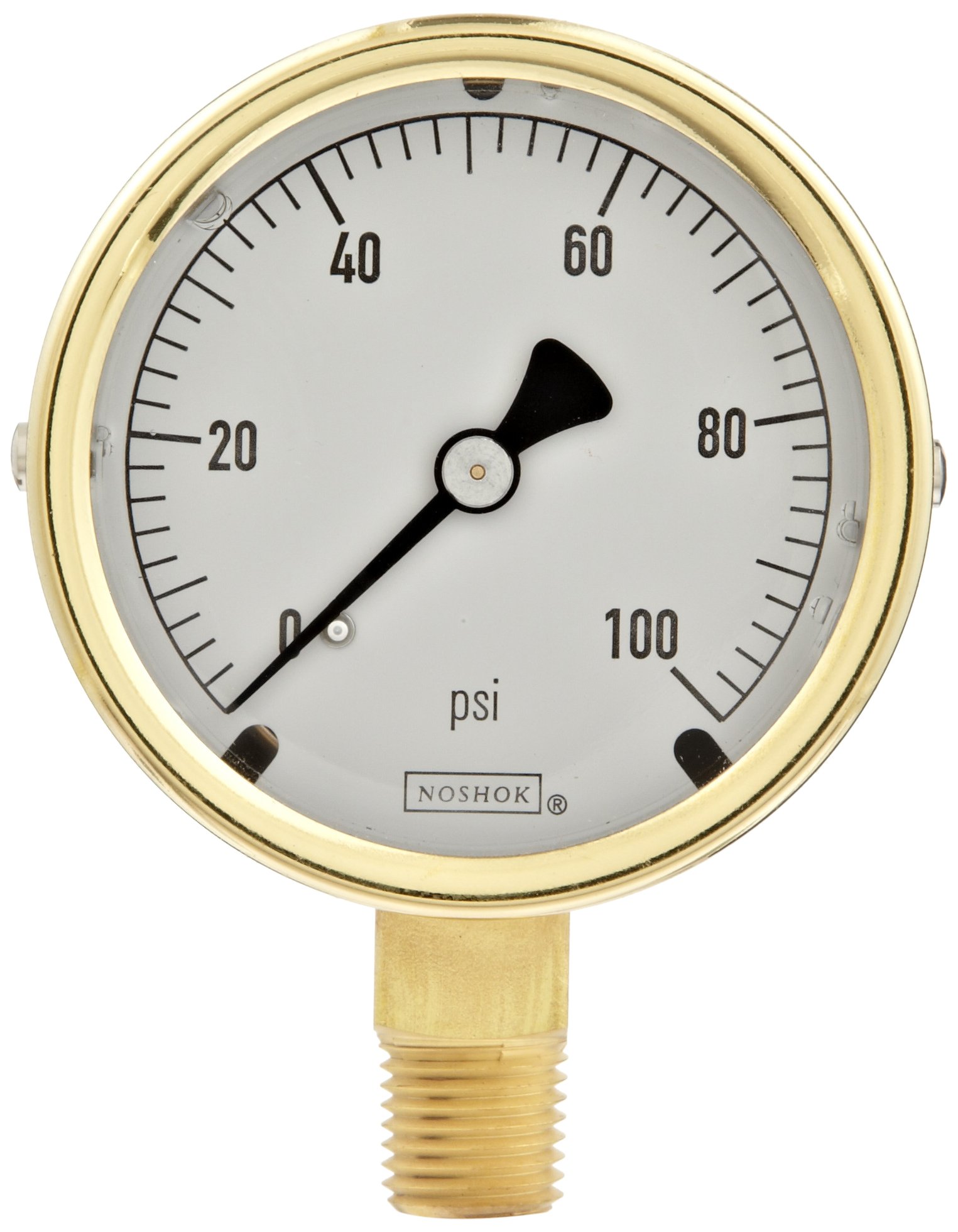

NOSHOK 300 Series Pressure Gauge

Be the first to review this item

Product Specifications
Manufacturer Series Number
300
Material Type
Brass
Temperature Range
0/160  Degrees Fahrenheit
Resolution
N/A
UNSPSC Code
41112412
Brand Name
NOSHOK
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Oct 27? Order in-stock items in the next 9 hrs 10 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-4 of 4
Size name Style name ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All
Currently showing 1-4 of 4
-30"Hg Vacuum-0 psi, 2-1/2" Dial Bottom Mount B008N0YHQW Usually ships in 1 to 2 months $87.21 Buy Options

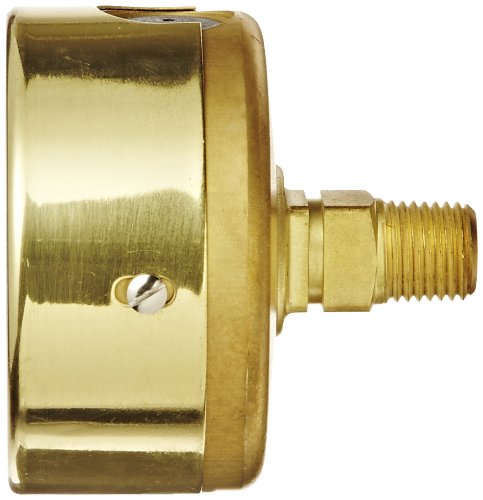

-30"Hg Vacuum-0 psi, 2-1/2" Dial Center Back Mount B008N0WQXI yes $93.00 Buy Options
-30"Hg Vacuum-0 psi, 4" Dial Bottom Mount B008N0ZIX8 Usually ships in 1 to 2 months $217.21 Buy Options
-30"Hg Vacuum-0 psi, 4" Dial Center Back Mount B008N0XMKO Usually ships in 1 to 2 months $226.00 Buy Options

Key Features

  • High quality liquid filled gauges designed for durability, accuracy and long life
  • Heavy one-piece die casting integrates the case, connection, movement and bourdon tube support into a solid unit to eliminate leakage
  • Glycerine fill greatly reduces effects of vibration, pulsation and shock
  • Dials are printed with bold UV resistant ink for ease of readability even after years of exposure to direct sunlight
  • 3 year warranty

Product Description

High quality liquid filled gauges designed for durability, accuracy and long life. Pressure ranges from vacuum through 15000 psi. 2-1/2" Dial sizes back connected; single scale. Heavy one-piece die casting integrates the case, connection, movement. and bourdon tube support into a solid unit to eliminate leakage. Glycerine fill greatly reduces effects of vibration, pulsation and shock. Dials are printed with bold UV resistant ink for ease of readability even after years. of exposure to direct sunlight. Used in demanding applications that are not corrosive to brass, where vibration and pulsation are present. Die cast brass natural brass finish. Phosphor bronze "C" tube. Brass and Nickel-Silver with highly polished bearing surfaces. Safety relief disc on the top of the case. +/-1.5 percent Full scale ASME grade A Accuracy. Aluminum, white background with black markings. Glycerine and water fill liquid. Dynamic Pressure: The working pressure should be limited to 60 percent of the dial range for long service life. Static Pressure: The working pressure, where no sharp fluctuations occur, should be limited to 90 percent of the dial range. 0 to 160 degree F Ambient temperature. -4 to 140 degree F Media temperature.
