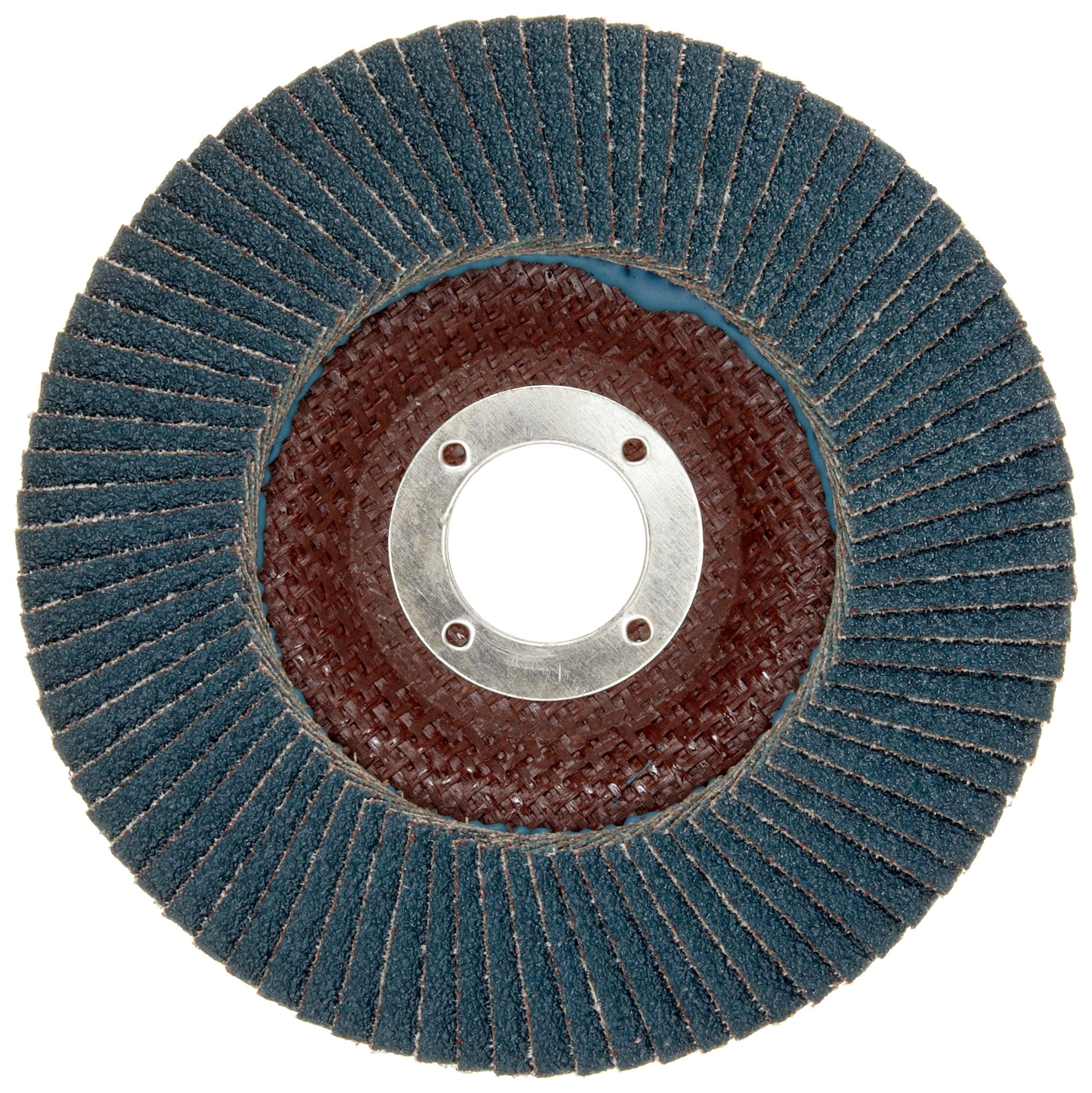

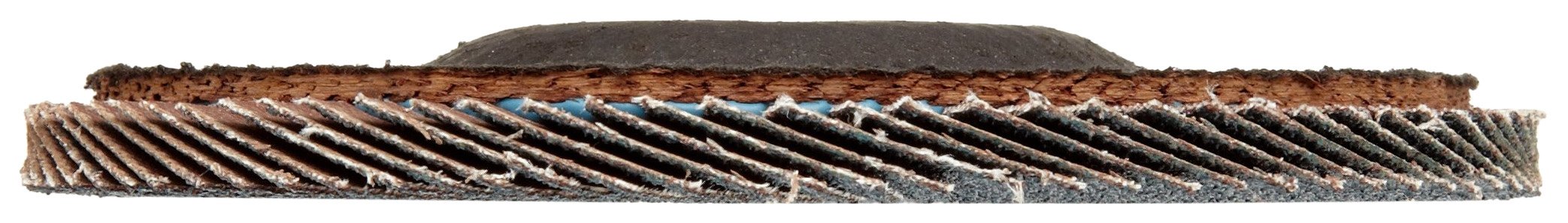

Norton Charger R822 High Performance Abrasive Flap Disc, Type 27, Threaded Hole, Fiberglass Backing, Zirconia Alumina

Be the first to review this item

Product Specifications
Attachment Type
Threaded Hole
Material Type
Fiberglass
Construction Type
Coated
Grit Material Type
Zirconia Alumina
Brand Name
Norton Abrasives - St. Gobain
Manufacturer Series Number
Charger R822 High Performance
Backing Type
Cloth
Style Name
Type 27
UNSPSC Code
31191506

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Oct 27? Order in-stock items in the next 7 hrs 29 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-8 of 8
Disc Diameter Grit Size Arbor Diameter Maximum Speed Pkg Qty Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All
Currently showing 1-8 of 8
4-1/2" 36 Grit 5/8-11" 13000 rpm 1 63642503510 B00208NM50 yes $4.59 Buy Options
4-1/2" 80 Grit 5/8-11" 13000 rpm 1 63642503513 B004MYGUGS yes $13.68 Buy Options
4-1/2" 60 Grit 5/8-11" 13000 rpm 1 63642503512 B004MYGUGI yes $13.68 Buy Options
4-1/2" 40 Grit 5/8-11" 13000 rpm 1 63642503511 B0025Q3Q0S yes $15.02 Buy Options
7" 80 Grit 5/8-11" 8500 rpm 1 63642503521 B004MYGUIG yes $22.23 Buy Options
7" 60 Grit 5/8-11" 8500 rpm 1 63642503520 B004MYGUI6 yes $22.23 Buy Options
7" 40 Grit 5/8-11" 8500 rpm 1 63642503519 B004MYGUHW yes $22.23 Buy Options
7" 36 Grit 5/8-11" 8500 rpm 1 63642503518 B004MYGUHM yes $22.23 Buy Options

Key Features

  • Zirconia alumina is self-sharpening and durable, allowing for a faster cut rate than aluminum oxide
  • Type 27 flat shape, for smoothing and blending on a flat surface
  • Full Y-weight polyester, resin bonding system with heavy-duty fiber backing for increased strength, durability and tear resistance
  • Durable fiberglass backing plate helps absorb vibration with no smearing
  • Supersize grinding aid provides a cooler cutting and faster cut rate

Product Description

Norton Jumbo Charger R822 flap discs are suitable for light stock removal, blending and finishing on a variety of metals. All Norton fiber discs feature a full resin bonding system with heavy-duty fiber backing for increased strength, durability and tear resistance.

This disc features a resin bond. Resin bonds have a good moisture resistance, are harder and less flexible than glue bonds, and have good heat resistance. Resin bonds are useful for abrasive operations with high operating speeds, impact, and sudden loading, as the resin bond is strong.

With a type 27 flap disc, hold the grinder in operation at an angle less than fifteen degrees to the work surface. Steeper angles will weaken the flap edges. The weight of the backing is designated by letters J, X, Y, T or M. J is the lightest and M is the heaviest. A more flexible backing will follow irregular contours of a workpiece better than a stiffer one. Stiffer backing is more suited for regular round or flat surfaces.

Coated abrasives have individual abrasive grains spaced at a predetermined distance from one another. This is a closed-coat disc. A closed coat covers 100 percent of the surface with abrasive grains, for more stiffness and better surface finish than an equivalent open coat, where abrasive grit covers 50 to 70 percent of the surface. This disc features a resin bond. Resin bonds have good moisture resistance, are harder and less flexible than glue bonds, and have good heat resistance and grain retention. Resin bonds are useful for abrasive operations with high operating speeds, impact, and sudden loading, as the resin bond is strong and can withstand rough treatment. Use with molded rubber back-up pads, using a hard pad for aggressive cutting, a medium pad for general purpose applications, or a soft pad for contours and fine finishing work.

Zirconia alumina is a self-sharpening abrasive that allows for a faster cut rate and longer life than aluminum oxide, due to its ability to fracture and refracture, creating new cutting edges. Zirconia alumina is often used for high stock removal on wood and metals.

Abrasives are used for a variety of applications from shaping a part to fine finishing, depending on the grit size. Low grit numbers like 40 are coarse and are used for removing excess material and shaping a part. High grit numbers like 400 are fine and help to create a smooth surface finish.

Norton Abrasives manufactures a wide variety of sanding, sanding, and polishing abrasives, and has been located in the United States since 1885. In 1990, Saint-Gobain purchased Norton, keeping its manufacturing facilities and offices in the same location. Norton/Saint-Gobain has been recognized as a Global 100 Sustainable Company, as well as earning ISO 9000 and 14001 certification for quality and environmental management standards.
