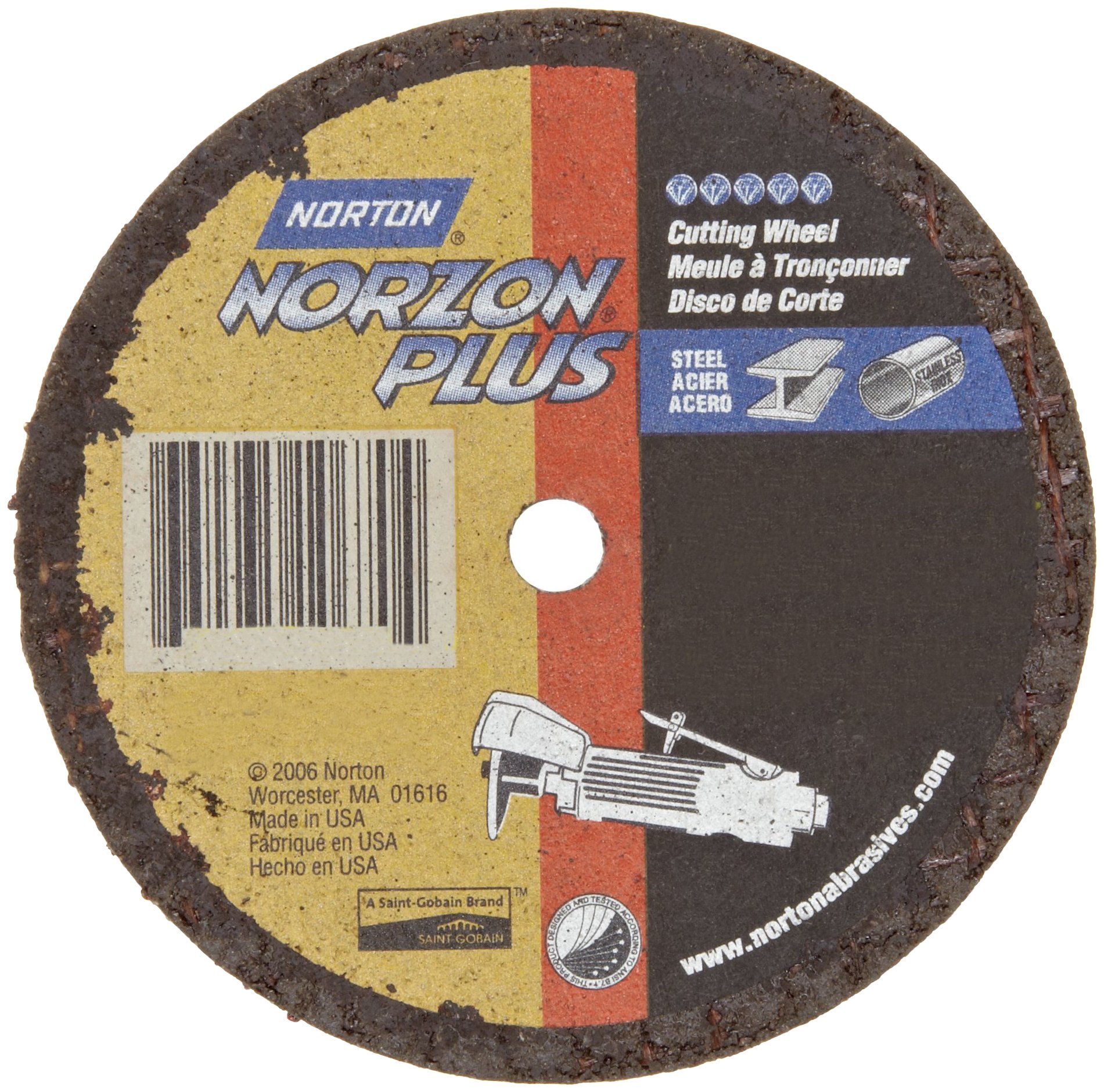

Norton NorZon Plus Small Diameter Reinforced Abrasive Flat Cut-off Wheel, Type 01, Zirconia Alumina

Be the first to review this item

Product Specifications
Construction Type
Bonded
Style Name
Type 1
UNSPSC Code
31191600
Grit Material Type
Zirconia Alumina
Brand Name
Norton Abrasives - St. Gobain

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Sep 3? Order in-stock items in the next 1 day 5 hrs 12 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-4 of 4
Wheel Diameter Wheel Thickness Arbor Diameter Fastening Type Maximum Speed Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All
Currently showing 1-4 of 4
3" 1/16" 3/8" Round Hole 25465 rpm 66243510671 B001VXTY5C yes $80.55 Buy Options
4" 0.35" 3/8" Round Hole 19100 rpm 66243510675 B0006NDQIY yes $96.61 Buy Options
4" 1/16" 1/4" Round Hole 19100 rpm 66243510676 B002080COE yes $99.33 Buy Options
4" 1/8" 3/8" Round Hole 19100 rpm 66243510841 B0006NDQJS yes $8.67 Buy Options

Key Features

  • Zirconia alumina is self-sharpening and durable, allowing for a faster cut rate than aluminum oxide
  • Type 01 wheels are straight (also called flat) cut-off wheels, and are used for peripheral grinding
  • Reinforced design helps provide safety, strength, and straight cuts
  • Resin bonds soften under the heat of grinding, releasing dulled abrasive grains
  • Small diameter wheel for use with horizontal or straight-shaft grinders

Product Description

Norton NorZon Plus Type 01 Right Cut wheels are contaminant free, without iron, sulfur or chlorine, making them suitable for the nuclear industry. Run the grinder at the highest possible speed marked on the wheel. This wheel is suitable for use with a horizontal or straight-shaft grinder.

Reinforced cutoff wheels are designed to resist breakage caused by severe cross-bending and are required on any operation where the work is not securely clamped. Resin bonds are organic bonds that soften under the heat of grinding, releasing dulled abrasive grains. Because of its forgiving nature, only an organic type bond is used in cutoff wheels. The resin-bonded wheel is more resilient than a vitrified wheel. The manufacturing term for a resin bond wheel is "cured," meaning the wheel has been heated to less than 500 degrees F. Straight (also called flat) wheels are the most common grinding wheel shape. Flat wheels are used for grinding on the periphery, or outside boundary edge, of the wheel and produce a slightly concave surface, called hollow ground, on the workpiece. These wheels can be used for cutting off, tool grinding (between centers or centerless), and removing mold marks and sand from castings, among others. They are frequently used with grinding machines. Using a harder grade wheel increases wheel life but also increases burn and requires more power, and decreases cut rate. Burn is the effect on a workpiece from thermal stress as abrasive cuts or rubs material away. The damage ranges from discoloration to cracking of the workpiece.

Zirconia alumina is a self-sharpening abrasive that allows for a faster cut rate and longer life than aluminum oxide, due to its ability to fracture and refracture, creating new cutting edges. Zirconia alumina is often used for high stock removal on wood and metals.

Abrasives are used for a variety of applications from shaping a part to fine finishing, depending on the grit size. Low grit numbers like 40 are coarse and are used for removing excess material and shaping a part. High grit numbers like 400 are fine and help to create a smooth surface finish.

Norton Abrasives manufactures a wide variety of sanding, grinding, and polishing abrasives, and has been located in the United States since 1885. In 1990, Saint-Gobain purchased Norton, keeping its manufacturing facilities and offices in the same location. Norton/Saint-Gobain has been recognized as a Global 100 Sustainable Company, as well as earning ISO 9000 and 14001 certification for quality and environmental management standards.
