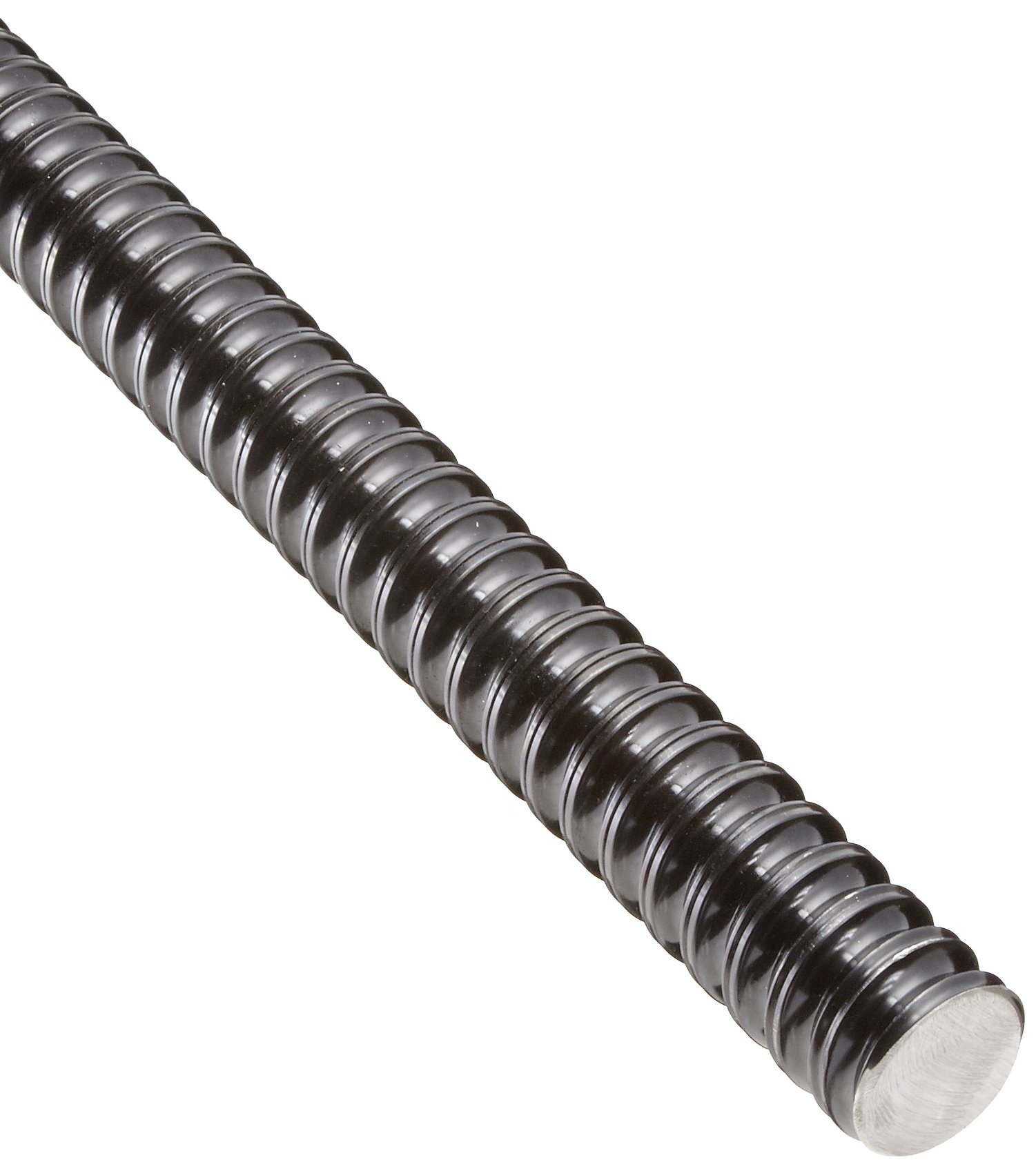

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Nook Right Hand Thread Standard Accuracy Ball Screw

Be the first to review this item

Product Specifications
Material Type
Steel
UNSPSC Code
26111535
Brand Name
Nook

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Oct 2? Order in-stock items in the next 22 hrs 1 min and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 30 Next 10 »
Lead type Item diameter string ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All
Currently showing 1-20 of 30 Next 10 »
0.0125 inches 0.375 inches B004ZNYT28 yes $52.12 Buy Options
0.0125 inches 0.375 inches B004ZNYN8I yes $101.73 Buy Options
0.0413 inches 1.171 inches B004ZNYT9G yes $197.80 Buy Options
0.0473 inches 1.5 inches B004ZNYTDW yes $243.64 Buy Options
0.2 inches 0.5 inches B004ZNYG26 yes $64.49 Buy Options
0.2 inches 0.5 inches B004ZNYGEY yes $196.03 Buy Options
0.2 inches 0.5 inches B004ZNYG80 yes $121.46 Buy Options
0.2 inches 0.631 inches B002P4XBFU yes $108.23 Buy Options
0.2 inches 0.75 inches B002P4SQF0 yes $130.69 Buy Options
0.2 inches 0.875 inches B004ZNYRKC yes $133.12 Buy Options
0.2 inches 1.15 inches B004ZNYRWA yes $192.38 Buy Options
0.2 inches 1.25 inches B004ZNY8HE yes $212.72 Buy Options
0.25 inches 1 inches B004ZNYEP0 yes $162.17 Buy Options
0.25 inches 1.5 inches B004ZNYLO4 yes $269.99 Buy Options
0.25 inches 2.5 inches B004ZNYC2K yes $527.82 Buy Options
0.5 inches 0.5 inches B004ZNYJZA yes $69.79 Buy Options
0.5 inches 0.5 inches B004ZNYKAY yes $131.75 Buy Options
0.5 inches 0.5 inches B004ZNYKJA yes $207.90 Buy Options
0.5 inches 0.631 inches B004ZNYHAC yes $82.37 Buy Options
0.5 inches 0.631 inches B004ZNYHSY yes $162.53 Buy Options

Key Features

  • Screw for a ball screw assembly with gothic arch thread form for translating rotary motion into linear motion
  • AISI 4150 steel for high fatigue strength and resistance to abrasion
  • Rolled thread for stronger, smoother surface than cut thread
  • Induction heat treated for hardness
  • Black oxide coated for resistance to corrosion

Product Description

This Nook ball screw with right-hand threads is the screw component for a ball screw assembly. It has a gothic arch, or ogival, thread form that serves as a raceway for ball bearings, which are pushed forward as the screw is turned, translating rotary motion into linear motion. It is made of American Iron and Steel Institute (ANSI) 4150 steel for high fatigue strength and resistance to abrasion. It has rolled thread for stronger, smoother surface than cut thread. It is induction heat treated for hardness and black oxide coated for resistance to corrosion. This ball screw is suitable for use in milling machines, routers, lathes, and forming machines, among others.

Nook Industries manufactures mechanical and electro-mechanical actuators, assemblies, and components. The company, founded in 1969 and headquartered in Cleveland, OH, meets International Organization for Standardization (ISO) standard 9001.
