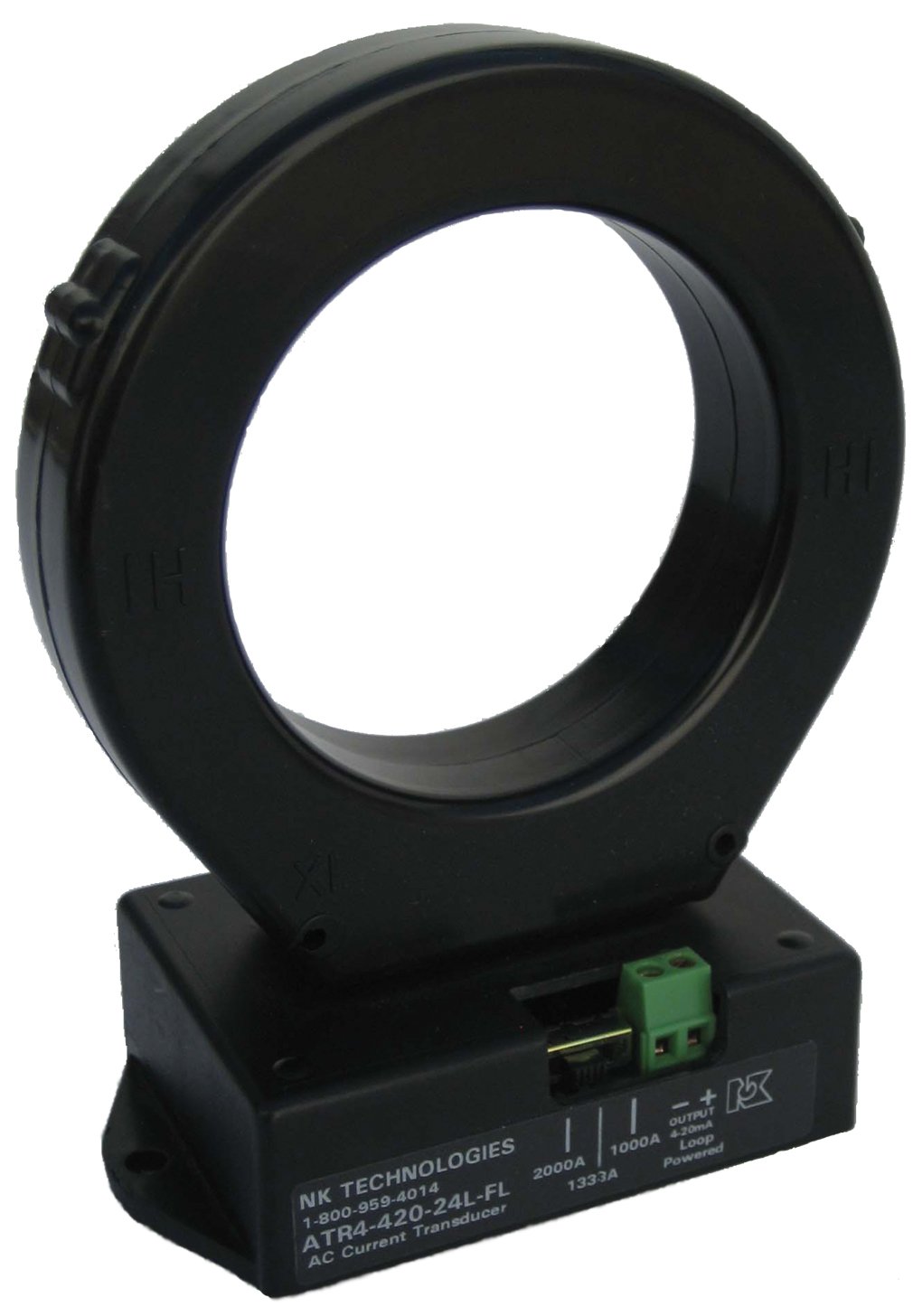

NK Technologies ATR Series RMS Current Transducer, Solid-core, FL Case Style

Be the first to review this item

Product Specifications
Power Source Type
12-40VDC
UNSPSC Code
41112109
Brand Name
NK Technologies

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Oct 27? Order in-stock items in the next 1 day 9 hrs 55 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-1 of 1
Input range description Output range description Electronic case type ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All
Currently showing 1-1 of 1
0-375, 0-500, & 0-750A 4-20mA Solid-core B005S7BT6Y yes $266.43 Buy Options

Key Features

  • True RMS measurement for distorted alternating current waveforms
  • 1.0% FS accuracy
  • Response time of 600 ms (10-90% step change)
  • Large aperture accommodates large diameter conductors or cables
  • UL Listed and CE certified for quality assurance

Product Description

This NK Technologies ATR series current transducer combines a solid-core current transformer and signal conditioner, and is suitable for use in industrial automation systems. The transducer provides true root-mean-square (RMS) measurement for sinusoidal alternating current waveforms, with an accuracy of 1.0% full scale (FS) and a response time of 600 ms (10-90% step change). A large aperture accommodates large diameter conductors or cables and user-selectable input current ranges reduce inventory needed. This current transducer is Underwriters Laboratories (UL) listed and Conformité Européenne (CE) certified for quality assurance. It is suitable for monitoring variable-frequency drive (VFD) and silicone control rectifier (SCR) alternating current (AC) loads and other “noisy” loads that produce distorted waveforms.

Specifications
Signal Output4-20 mADC
Frequency Range10-400 Hz
Insulation Voltage600 VAC
Operating Temperature-15 C to 50 C

Current transducers are used to detect electrical current flowing in a wire or cable, and to generate an electrical signal proportional to the current for measurement or control. The transducer consists of an electrical winding, a magnetic core, and a signal conditioner. When current flows through a wire, the transducer winding generates a current, which produces a magnetic field in the core, which then creates a proportional current or voltage output signal. Current transducers are used in industrial automation systems for monitoring, alarming, and equipment control.

NK Technologies manufactures electrical sensors. The company, founded in 1982 and headquartered in San Jose, CA, meets International Organization for Standardization (ISO) standards 9001 and 14001.
