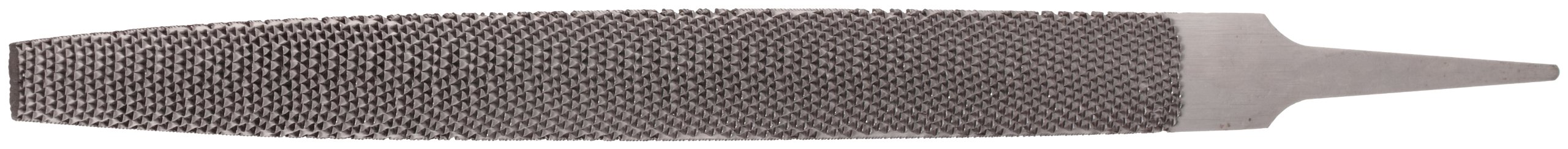

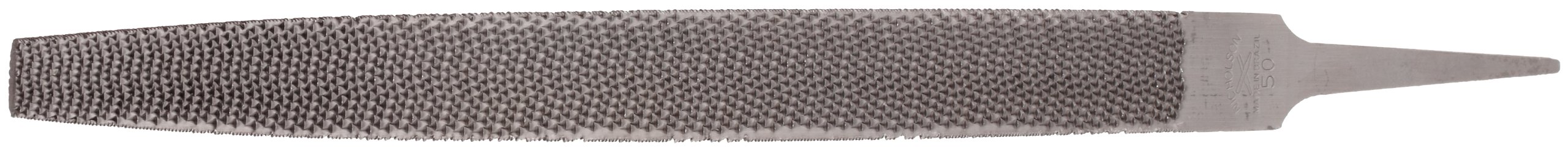

Nicholson Pattern Maker's Cabinet Rasp File, American Pattern, Rasp Cut, Half-Round

Be the first to review this item

Product Specifications
Overall Width
[ N/A ]  inches
Pattern Name
American Pattern
Item Shape
Half-Round
Cut Type
Rasp Cut
Style Name
Rasp File
UNSPSC Code
27111929
Thickness
[ N/A ]  inches
Brand Name
Apex Tool Group

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Sep 18? Order in-stock items in the next 9 hrs 51 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-2 of 2
Number of items ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All
Currently showing 1-2 of 2
1 B0036AYUBG yes $33.83 Buy Options
1 B0036AWRPW yes $40.13 Buy Options

Key Features

  • Half-round rasp for aggressive removal of wood or soft materials in cabinetry
  • File has narrow width that tapers to a point to ease access into holes and grooves
  • Single-cut teeth on edges for smoothing
  • American pattern file for non-precision material removal
  • Tang for use with an optional handle (sold separately)

Product Description

The Nicholson pattern maker's cabinet rasp file has a half-round shape with medium American pattern rasp-cut teeth for aggressive removal of wood or soft materials in holes, curves, and corners in cabinet making. The file tapers toward the point in width to ease access into holes and grooves. The rasp's density of six or more rows of teeth per inch provides a smoother finish than regular cabinet rasps. It has medium, single-cut American pattern teeth on the edges for smoothing with a medium-smooth finish. The tang can be used with an optional handle for secure gripping (sold separately).

Hand files are used to remove material and smooth and shape workpieces. They have forward-facing cutting teeth and cut when pushed over either a stationary or rotating workpiece. Single-cut teeth are single rows cut diagonally across the width of the file. Double-cut teeth have two sets of rows cut in opposite directions. American pattern files have three coarseness grades. Coarse, also known as bastard cut, is suitable for efficient, heavy material removal where finish is not a concern. Medium, also known as second cut, offers average material removal and finish quality. Fine, also known as smooth cut, provides the smoothest finish. Swiss pattern files have eight coarseness grades, from 00 (coarse), 0 (medium), and 1 to 6 (fine to finest), offering a smoother finish than equivalent American pattern files. For Swiss pattern files the length of the tool is the length of the blade, not counting the tang, which is the pointed end fitted for a handle; for American pattern files the length of the tool is its entire length, including the tang.

Nicholson manufactures hand tools and power tool accessories. The company is headquartered in Sparks, MD.
