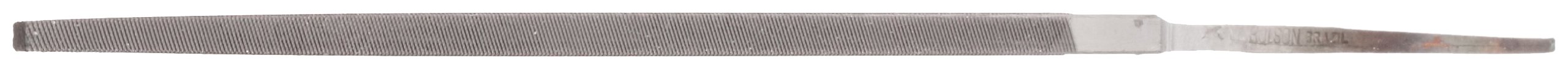

Nicholson Hand File, American Pattern, Double Cut, Square

Be the first to review this item

Product Specifications
Overall Width
[ N/A ]  inches
Pattern Name
American Pattern
Item Shape
Cut Type
Double Cut
Style Name
Hand File
[ N/A ]  inches
Brand Name
Apex Tool Group

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Mar 30? Order in-stock items in the next 16 hrs 57 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-13 of 13
Item length string Coarseness rating Part number ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the (and Amazon) catalog.


If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

All All All
Currently showing 1-13 of 13
10 inches Coarse 13196 B00018ADBM yes $5.79 Buy Options
10 inches Fine 13262 B0002FSG68 Usually ships in 24 hours $14.63 Buy Options
10 inches Medium 13229 B00018ADBW yes $13.59 Buy Options
12 inches Fine 13376 B000REJLS6 yes $17.40 Buy Options
12 inches Medium 13343 B000REI7F4 yes $18.48 Buy Options
14 inches Coarse 13425 B0002JT3X4 yes $21.58 Buy Options
4 inches Coarse 12790 B000REI7BI yes $7.56 Buy Options
4 inches Fine 12857 B000REGSSM yes $8.68 Buy Options
6 inches Coarse 12967 B000REJLPE yes $7.91 Buy Options
6 inches Fine 13033 B000RELOKE yes $9.11 Buy Options
6 inches Medium 13000 B001R1T8BI yes $9.17 Buy Options
8 inches Coarse 13081 B000REI7DG yes $9.11 Buy Options
8 inches Medium 13114 B000RELOM2 yes $12.00 Buy Options

Key Features

  • Square shape for filing slots, corners, and keyways, with tapered width to ease access into slots
  • American pattern file for non-precision material removal
  • Double-cut teeth on all sides for rapid removal of material
  • Tang for use with an optional handle (sold separately)

Product Description

The Nicholson hand file has a square shape with double-cut American pattern teeth for filing slots, corners, and keyways. The file tapers slightly toward the point to ease access into slots. It has double-cut American pattern teeth on all sides for rapid material removal. The tang can be used with an optional handle for secure gripping (sold separately).

Hand files are used to remove material and smooth and shape workpieces. They have forward-facing cutting teeth and cut when pushed over either a stationary or rotating workpiece. Single-cut teeth have single rows cut diagonally across the width of the file. Double-cut teeth have two sets of rows cut in opposite directions. American pattern files have three coarseness grades. Coarse, also known as bastard cut, is suitable for efficient, heavy material removal where finish is not a concern. Medium, also known as second cut, offers average material removal and finish quality. Fine, also known as smooth cut, provides the smoothest finish. Swiss pattern files have eight coarseness grades, from 00 (coarse), 0 (medium), and 1 to 6 (fine to finest), offering a smoother, more precise finish than equivalent American pattern files.

Nicholson manufactures hand tools and power tool accessories. The company is headquartered in Sparks, MD.
