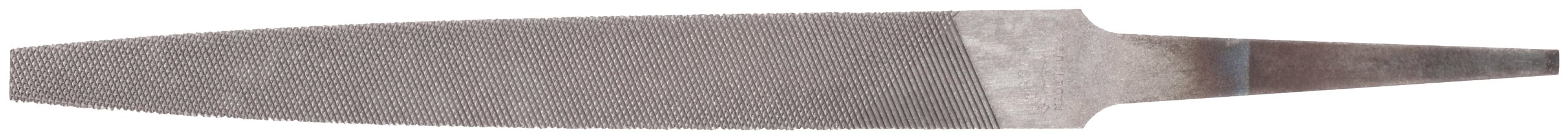

Nicholson Flat Hand File (Boxed), American Pattern, Double Cut, Rectangular

Be the first to review this item

Product Specifications
Overall Width
[ N/A ]  inches
Pattern Name
American Pattern
Item Shape
Rectangular
Thickness
[ N/A ]  inches
Brand Name
Apex Tool Group
Cut Type
Double Cut
UNSPSC Code
27111929
Style Name
Flat Hand File
Special Features
Boxed Packaging

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Oct 28? Order in-stock items in the next 1 day 15 hrs 58 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-17 of 17
Item length string Coarseness rating Part number ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All
Currently showing 1-17 of 17
10 inches Coarse 03665N B0002JT3R0 yes $9.92 Buy Options
10 inches Fine 03731N B00018ACTA yes $12.60 Buy Options
10 inches Medium 03698N B00018ACT0 yes $11.41 Buy Options
12 inches Bastard 03764 B000RELOMM
Out of Stock
$11.61 Buy Options
12 inches Fine 03830N B000REGSXC yes $17.04 Buy Options
12 inches Medium 03797N B000RELOMW yes $15.37 Buy Options
14 inches Coarse 03863N B00018ACUE yes $13.58 Buy Options
14 inches Fine 03929N B000186HBC yes $23.60 Buy Options
14 inches Medium 03896N B00018ACUO yes $21.52 Buy Options
16 inches Coarse 03980N B00018ACUY yes $24.69 Buy Options
4 inches Coarse 03367N B000REGSRI yes $6.15 Buy Options
4 inches Medium 03401N B000REI7B8 yes $6.45 Buy Options
6 inches Coarse 03467N B000RELOI6 yes $4.01 Buy Options
6 inches Fine 03533N B000RELOIQ yes $8.15 Buy Options
6 inches Medium 03500N B000REJLOU yes $6.84 Buy Options
8 inches Coarse 03566N B000RELOL8 yes $8.04 Buy Options
8 inches Medium 03599N B000REGSVE yes $8.84 Buy Options

Key Features

  • Rectangular shape for smoothing and shaping straight surfaces, with tapered width to ease access in slots
  • American pattern file for non-precision material removal
  • Double-cut teeth on both sides for rapid removal of material
  • Single-cut teeth on both edges for finishing, sharpening, and deburring
  • Tang for use with an optional handle (sold separately)

Product Description

The Nicholson flat hand file has a rectangular shape with double-cut American pattern teeth on both sides for smoothing and shaping straight surfaces. The file tapers slightly toward the point in width to ease access into slots. It has double-cut American pattern teeth on each side for rapid material removal and single-cut teeth on the edges for finishing, sharpening, and deburring. The tang can be used with an optional handle for secure gripping (sold separately).

Hand files are used to remove material and smooth and shape workpieces. They have forward-facing cutting teeth and cut when pushed over either a stationary or rotating workpiece. Single-cut teeth have single rows cut diagonally across the width of the file. Double-cut teeth have two sets of rows cut in opposite directions. American pattern files have three coarseness grades. Coarse, also known as bastard cut, is suitable for efficient, heavy material removal where finish is not a concern. Medium, also known as second cut, offers average material removal and finish quality. Fine, also known as smooth cut, provides the smoothest finish. Swiss pattern files have eight coarseness grades, from 00 (coarse), 0 (medium), and 1 to 6 (fine to finest), offering a smoother, more precise finish than equivalent American pattern files.

Nicholson manufactures hand tools and power tool accessories. The company is headquartered in Sparks, MD.
