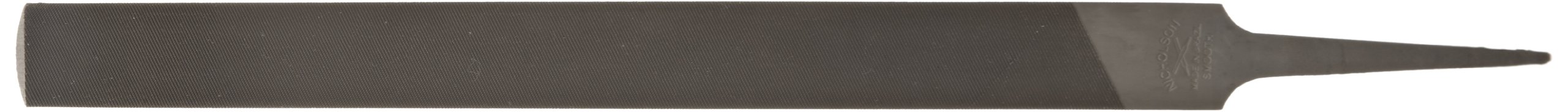

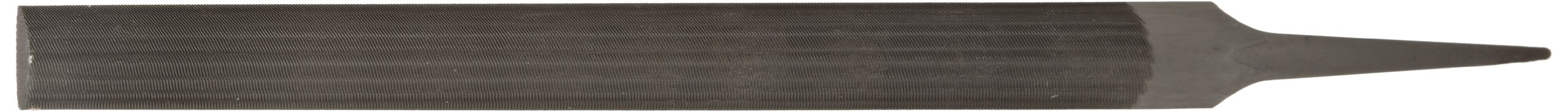

Nicholson Hand File (Boxed), American Pattern, Double Cut (Single Cut Back), Half-Round

Be the first to review this item

Product Specifications
Overall Width
[ N/A ]  inches
Pattern Name
American Pattern
Item Shape
[ N/A ]  inches
Brand Name
Apex Tool Group
Cut Type
Style Name
Hand File
Special Features
Boxed Packaging

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Apr 20? Order in-stock items in the next 12 hrs 43 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-14 of 14
Item length string Coarseness rating Part number ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the (and Amazon) catalog.


If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

All All All
Currently showing 1-14 of 14
10 inches Fine 05059N B0021LULDC yes $15.85 Buy Options
10 inches Medium 05026N B001HWCW6A Usually ships in 24 hours $16.31 Buy Options
12 inches Coarse 05094 B000RELON6 yes $21.86 Buy Options
12 inches Fine 05158N B000REI7EK Usually ships in 24 hours $22.20 Buy Options
12 inches Medium 05125N B000REI7E0 yes $21.02 Buy Options
14 inches Coarse 05194N B001HWHR92 yes $22.52 Buy Options
14 inches Fine 05258N B001HWHRAQ yes $27.41 Buy Options
14 inches Medium 05225N B001HWCWCY yes $26.89 Buy Options
16 inches Coarse 05307N B001HWHRBA yes $32.51 Buy Options
4 inches Coarse 04695N B001R1T83G yes $9.09 Buy Options
4 inches Fine 04762N B001R1QCDK yes $11.67 Buy Options
4 inches Medium 04729N B001R1T83Q yes $11.10 Buy Options
6 inches Coarse 04795NN B001R1T84U yes $12.85 Buy Options
8 inches Medium 04927NN B001R1T88G yes $16.30 Buy Options

Key Features

  • Half-round shape has one round side and one flat side for use on curved and flat surfaces
  • American pattern file for non-precision material removal
  • Double-cut teeth on the flat side for rapid removal of material
  • Single-cut teeth on the round side for finishing, sharpening, and deburring
  • Tang for use with an optional handle (sold separately)

Product Description

The Nicholson half-round hand file has one flat side with double-cut American pattern teeth and one curved side with single-cut American pattern teeth for use on flat and curved surfaces. It has double-cut American pattern teeth on the flat side for rapid material removal and single-cut teeth on the round side for finishing, sharpening, and deburring. The tang can be used with an optional handle for secure gripping (sold separately).

Hand files are used to remove material and smooth and shape workpieces. They have forward-facing cutting teeth and cut when pushed over either a stationary or rotating workpiece. Single-cut teeth have single rows cut diagonally across the width of the file. Double-cut teeth have two sets of rows cut in opposite directions. American pattern files have three coarseness grades. Coarse, also known as bastard cut, is suitable for efficient, heavy material removal where finish is not a concern. Medium, also known as second cut, offers average material removal and finish quality. Fine, also known as smooth cut, provides the smoothest finish. Swiss pattern files have eight coarseness grades, from 00 (coarse), 0 (medium), and 1 to 6 (fine to finest), offering a smoother, more precise finish than equivalent American pattern files.

Nicholson manufactures hand tools and power tool accessories. The company is headquartered in Sparks, MD.
