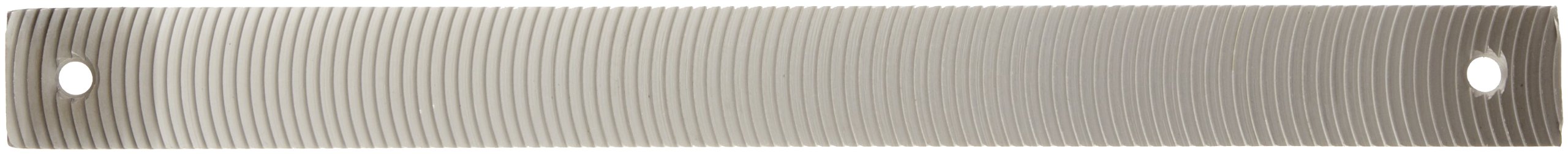

Nicholson Hand File, Curved Cut, Rectangular, 14" Length

Be the first to review this item

ASIN B001TKEEP2

Specifications for this item
Overall Width
[ N/A ]  inches
Item Shape
Rectangular
Part Number
20189N
Brand Name
Apex Tool Group
Cut Type
Curved Cut
Style Name
Hand File
Special Features
Without Tang
Number of Items
1
Pattern Name
American Pattern
UPC
037103219404
Thickness
[ N/A ]  inches
EAN
0037103219404
UNSPSC Code
27111929
Overall Length
14  inches
Coarseness Rating
N/A

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Sep 18? Order in-stock items in the next 15 hrs 19 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Rectangular shape for smoothing and shaping straight surfaces
  • Curved standard pattern for non-precision material removal in automotive body work
  • Curved-cut teeth for fast cutting action with a smooth finish on metals in automotive body work
  • Tooth rake and pitch minimize filings caught in teeth for a smooth finish
  • Flexible body with no tang for use in two-hand file holder (sold separately)

Package Details

Shipping Weight: 0.65 pounds
Package Size: 14.1 x 1.5 x 0.3 inches

Product Description

The Nicholson hand file is 14" long, has a rectangular shape with a flexible body and no tang, and has curved standard pattern teeth on both sides for smoothing and shaping straight surfaces in automotive body work. It has curved-cut teeth for fast cutting action, with a rake and pitch that help minimize filings caught between teeth (also called pinning), for a smoother finish on metals. The file has a flexible body with no tang for use in a two-hand file holder (sold separately).

Hand files are used to remove material and smooth and shape workpieces. They have forward-facing cutting teeth and cut when pushed over either a stationary or rotating workpiece. Single-cut teeth have single rows cut diagonally across the width of the file. Double-cut teeth have two sets of rows cut in opposite directions. American pattern files have three coarseness grades. Coarse, also known as bastard cut, is suitable for efficient, heavy material removal where finish is not a concern. Medium, also known as second cut, offers average material removal and finish quality. Fine, also known as smooth cut, provides the smoothest finish. Swiss pattern files have eight coarseness grades, from 00 (coarse), 0 (medium), and 1 to 6 (fine to finest), offering a smoother, more precise finish than equivalent American pattern files.

Nicholson manufactures hand tools and power tool accessories. The company is headquartered in Sparks, MD.
