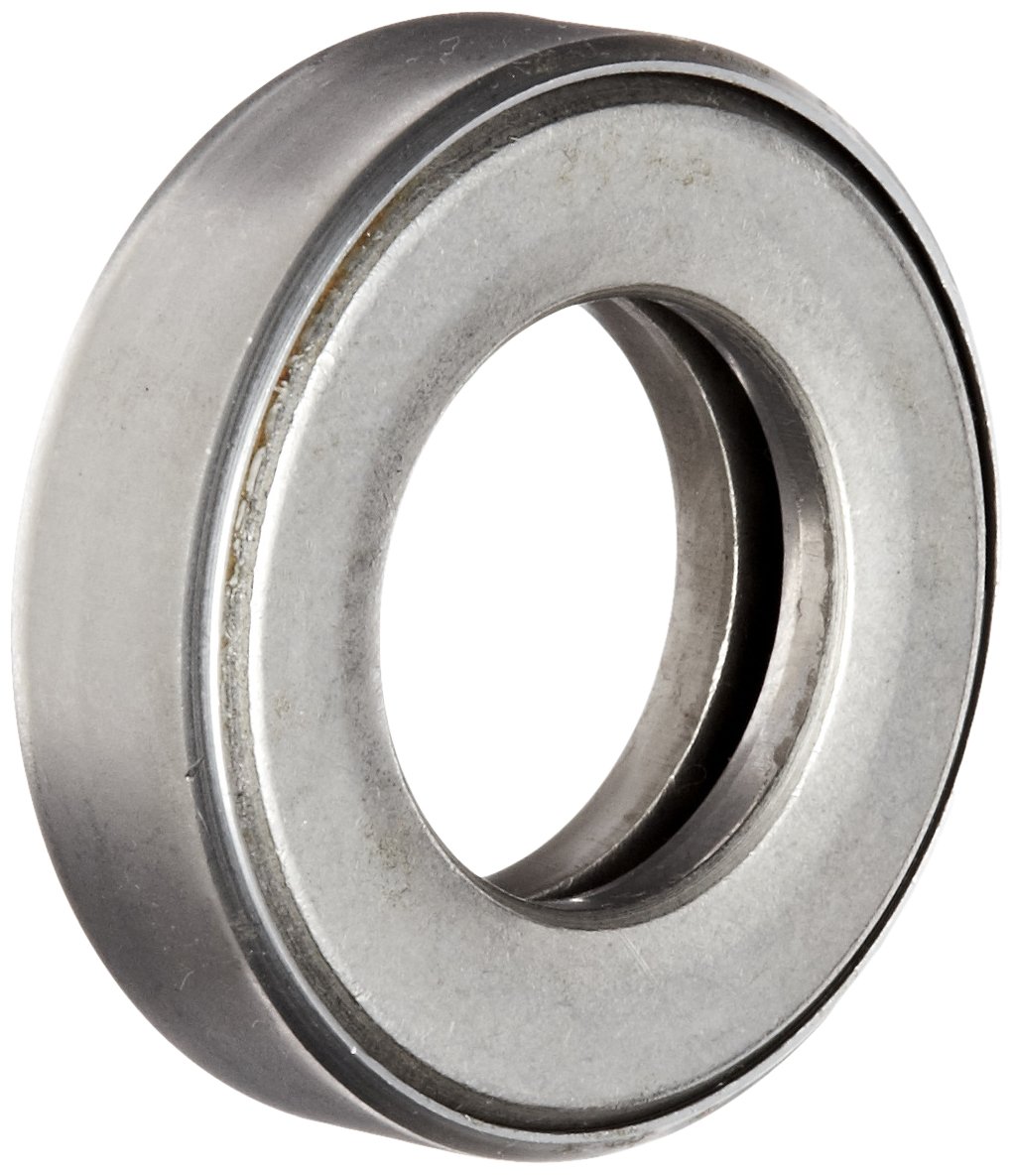

Nice Thrust Bearing 616V Full Complement Of Balls, Case Hardened Carbon Steel, 1.2500" Bore x 2.3438" OD x 0.6250" Width

Be the first to review this item

ASIN B0034G64ZM

Specifications for this item
Overall Width
0.6250  inches
Bore Diameter
1.2500  inches
Bearing Number
616VBF53
Part Number
616VBF53
Brand Name
Nice
Max Rotational Speed
1000  RPM
Number of Items
1
Bore Diameter Tolerance
+ .010 / - .000  inches
Material Type
Carbon Steel
UPC
637400412388
Outside Diameter
2.3438  inches
EAN
0637400412388
Exterior Finish
Carbon Steel
Static Load Capacity
1794  pounds
Outside Diameter Tolerance
+ .0312 / - .0312  inches
UNSPSC Code
31171552
Dynamic Load Capacity
1069  pounds
System of Measurement
Inch

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Dec 23? Order in-stock items in the next 1 day 22 hrs 27 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • These bearings are shipped oiled with a rust preventative
  • Soft steel band offers ease of installation
  • Full complement of balls for increased capacity
  • Suitable for lower speed applications of up to 1000 rpm
  • Soft steel band serves as a dust shield

Package Details

Shipping Weight: 0.4 pounds
Package Size: 3 x 2.3 x 0.4 inches

Product Description

The 600 Series is designed for moderate speeds and medium thrust loads. These bearings utilize a full ball complement. Rings are cold forged from strip steel and are carefully heat treated. The entire assembly is housed in a soft steel band which lends itself to an easy press fit into a housing. The band also serves as a dust shield and helps retain the bearing lubricant. The upper ring is free to rotate in the band and has a close fit in the bore for the shaft. The lower ring is fixed in the band and has a shaft clearance in the bore. RBC Nice Bearings is a subsidiary of RBC Bearings. RBC Bearings has been providing bearing solutions to our customers since 1919. A publicly-traded company (NASDAQ: ROLL), RBC currently has 23 manufacturing facilities worldwide, with 18 located in the USA.
