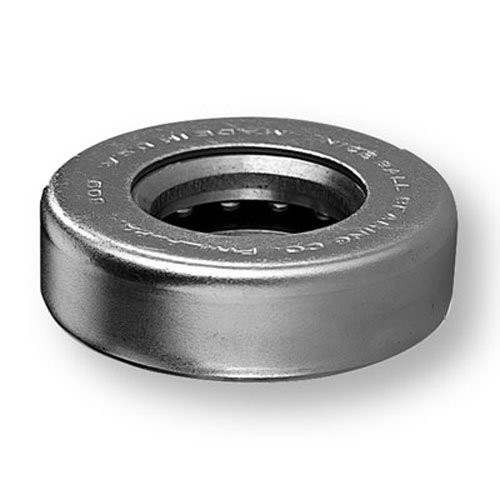

Nice Thrust Bearing 6031/4V Full Complement Of Balls, Case Hardened Carbon Steel, 0.5000" Bore x 1.0000" OD x 0.3440" Width

Be the first to review this item

ASIN B0034G64XE

Specifications for this item
Overall Width
0.3440  inches
Bore Diameter
0.5000  inches
Bearing Number
6031/4VBF53
Part Number
6031/4VBF53
Brand Name
Nice
Max Rotational Speed
1000  RPM
Number of Items
1
Bore Diameter Tolerance
+ .010 / - .000  inches
Material Type
Carbon Steel
UPC
637400410308
Outside Diameter
1.0000  inches
EAN
0637400410308
Exterior Finish
Carbon Steel
Static Load Capacity
526  pounds
Outside Diameter Tolerance
+ .0312 / - .0312  inches
UNSPSC Code
31171552
Dynamic Load Capacity
314  pounds
System of Measurement
Inch

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Nov 3? Order in-stock items in the next 8 hrs 55 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • These bearings are shipped oiled with a rust preventative
  • Soft steel band offers ease of installation
  • Full complement of balls for increased capacity
  • Suitable for lower speed applications of up to 1000 rpm
  • Soft steel band serves as a dust shield

Package Details

Shipping Weight: 0.35 pounds
Package Size: 3.2 x 2.1 x 1.7 inches

Product Description

The 600 Series is designed for moderate speeds and medium thrust loads. These bearings utilize a full ball complement. Rings are cold forged from strip steel and are carefully heat treated. The entire assembly is housed in a soft steel band which lends itself to an easy press fit into a housing. The band also serves as a dust shield and helps retain the bearing lubricant. The upper ring is free to rotate in the band and has a close fit in the bore for the shaft. The lower ring is fixed in the band and has a shaft clearance in the bore. RBC Nice Bearings is a subsidiary of RBC Bearings. RBC Bearings has been providing bearing solutions to our customers since 1919. A publicly-traded company (NASDAQ: ROLL), RBC currently has 23 manufacturing facilities worldwide, with 18 located in the USA.
