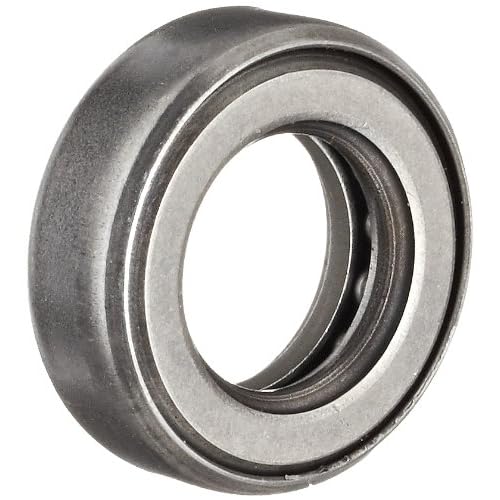

Nice Thrust Bearing 6023/4V Full Complement Of Balls, Case Hardened Carbon Steel, 0.4530" Bore x 0.8594" OD x 0.2810" Width
Be the first to review this item
ASIN B0034G64X4
Specifications for this item
- Bearing Number
- 6023/4VBF53
- Bearing Width
- 0.2810 inches
- Bore Diameter
- 0.4530 inches
- Bore Diameter Tolerance
- + .010 / - .000 inches
- Brand Name
- Nice
- Dynamic Load Capacity
- 174 pounds
- EAN
- 0637400410247
- Exterior Finish
- Carbon Steel
- Material Type
- Carbon Steel
- Maximum Rotational Speed
- 1000 RPM
- Mfr Part #
- 6023/4VBF53
- Number of Items
- 1
- Outside Diameter
- 0.8594 inches
- Outside Diameter Tolerance
- + .0312 / - .0312 inches
- Static Load Capacity
- 292 pounds
- System of Measurement
- Inch
- UPC
- 637400410247
This item ships for FREE with 2-Day Shipping on orders over $50. (Details)
Want it delivered on Tuesday, May 28? Order in-stock items in the next 20 hours 21 minutes and choose One-Day Shipping at checkout.
Key Features
- These bearings are shipped oiled with a rust preventative
- Soft steel band offers ease of installation
- Full complement of balls for increased capacity
- Suitable for lower speed applications of up to 1000 rpm
- Soft steel band serves as a dust shield
Package Details
Shipping Weight:
0.5 pounds
Package Size:
3 x 1.1 x 0.3 inches
Product Description
The 600 Series is designed for moderate speeds and medium thrust loads. These bearings utilize a full ball complement. Rings are cold forged from strip steel and are carefully heat treated. The entire assembly is housed in a soft steel band which lends itself to an easy press fit into a housing. The band also serves as a dust shield and helps retain the bearing lubricant. The upper ring is free to rotate in the band and has a close fit in the bore for the shaft. The lower ring is fixed in the band and has a shaft clearance in the bore. RBC Nice Bearings is a subsidiary of RBC Bearings. RBC Bearings has been providing bearing solutions to our customers since 1919. A publicly-traded company (NASDAQ: ROLL), RBC currently has 23 manufacturing facilities worldwide, with 18 located in the USA.
