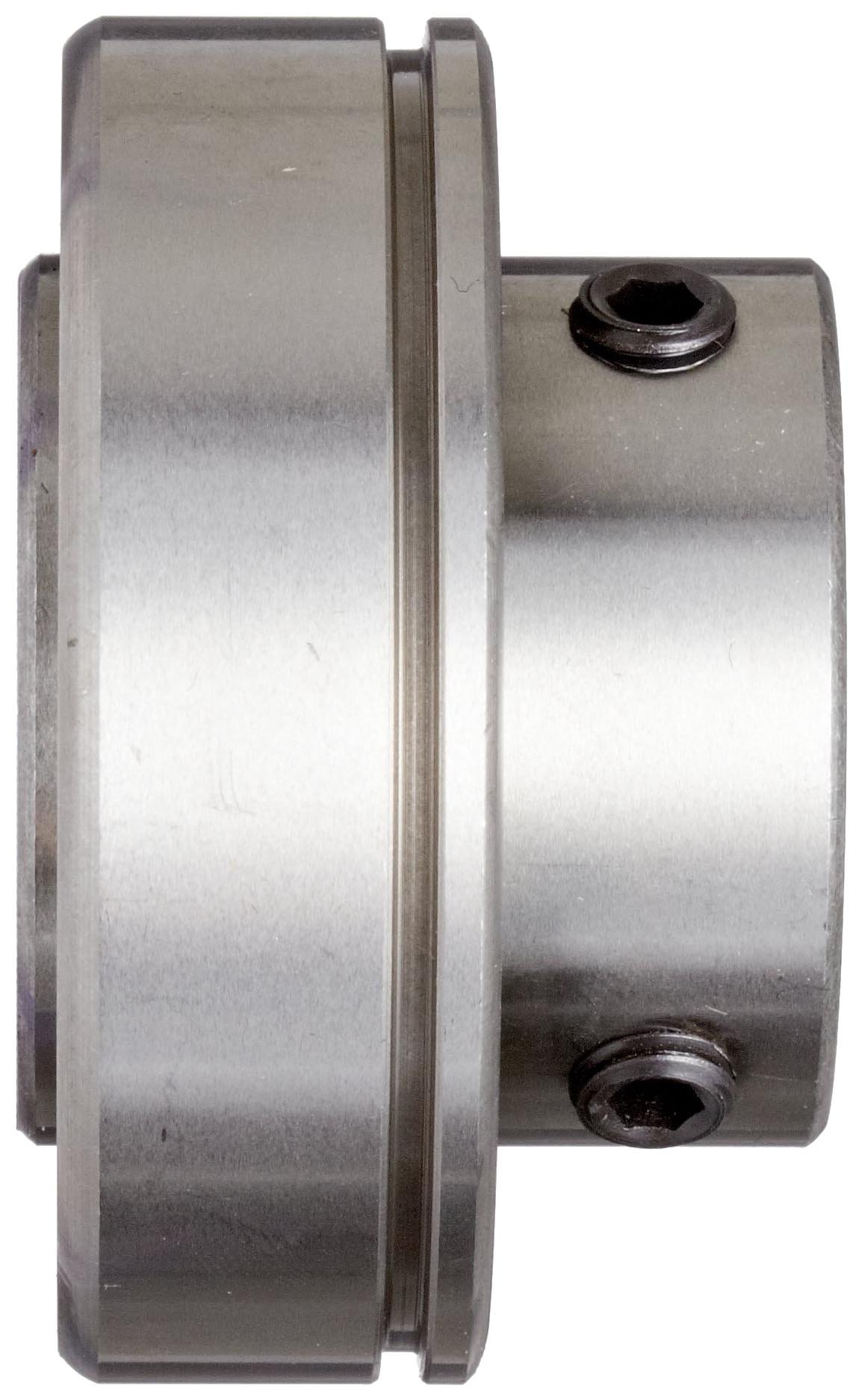

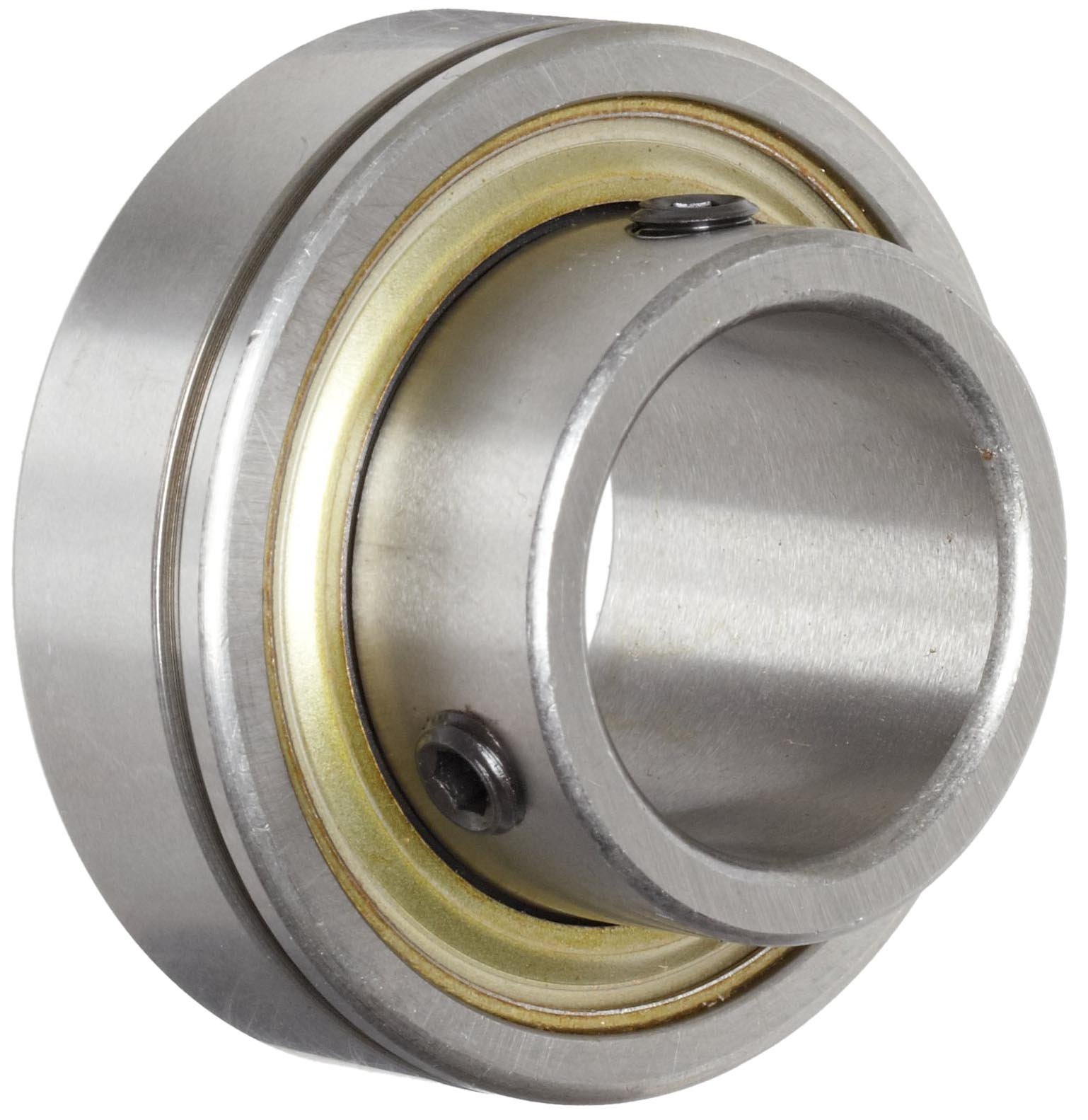

Nice Ball Bearing 7616DL Heavy Duty Double Sealed, Extended Inner Ring, 52100 Bearing Quality Steel, 1.000" Bore x 2.000" OD x 1.179" Width
Be the first to review this item
ASIN B0034G652O
Specifications for this item
- Bearing Number
- 7616DLTNTG18
- Bearing Width
- 1.179 inches
- Bore Diameter
- 1 inches
- Bore Diameter Tolerance
- + .0008 / - .0000 inches
- Brand Name
- Nice
- Dynamic Load Capacity
- 1350 pounds
- EAN
- 0637400292881
- Exterior Finish
- Chrome Steel
- Material Type
- 52100 Alloy Steel
- Maximum Rotational Speed
- 5000 RPM
- Mfr Part #
- 7616DLTNTG18
- Number of Items
- 1
- Outer Ring Width
- 0.625 inches
- Outside Diameter
- 2 inches
- Outside Diameter Tolerance
- + .0000 / - .0006 inches
- Static Load Capacity
- 2970 pounds
- System of Measurement
- Inch
- UPC
- 637400292881
This item ships for FREE with 2-Day Shipping on orders over $50. (Details)
Want it delivered on Tuesday, May 21? Order in-stock items in the next 1 day 7 hours 10 minutes and choose One-Day Shipping at checkout.
Key Features
- Single-row radial ball bearing for applications that support medium radial loads and speeds up to 6000 RPM
- Extended inner ring with set screws to improve shaft support and eliminate the need for location spacers
- Nylon cage evenly spaces balls for reduced friction, vibration, and noise
- Through-hardened 52100 bearing quality steel for optimum wear resistance
- Synthetic rubber seals with steel shields on both sides of the bearing ride in a labyrinth groove to keep the lubricant in and contaminants out
Package Details
Shipping Weight:
0.45 pounds
Package Size:
2.7 x 2.7 x 1.4 inches
Product Description
This Nice 7616DL single-row radial ball bearing is double sealed and has a nylon cage and precision ground surfaces. It is suitable for applications that require quiet operation and support medium radial loads at speeds up to 6000 rpm. This through-hardened ASTM International 52100 bearing quality steel bearing has a 1.000" bore diameter, a 2.000" outside diameter, and a 1.790" width. It has an extended inner ring to improve shaft support and eliminate the need for location spacers and a snap ring groove in its outside diameter. Its inside (ID) and outside diameter (OD) surfaces and raceways are ground to a precision of +0.0000 and -0.0006", allowing higher speeds and creating lower friction than comparable-sized roller bearings. Synthetic rubber seals with steel shields on both sides of the bearing ride in a labyrinth groove to keep out contaminants such as dirt and grime and hold in the lubricant applied at manufacture. This bearing has a straight bore for fitting to conventional cylindrical shafts and a nylon cage to prevent the balls from coming into contact with each other during use, reducing friction, vibration, and noise. This radial ball bearing is suitable for use in commercial and industrial applications including household appliances, power tools, original equipment or replacement parts in motors, office automation, and conveyor rollers.
Rolling bearings use rolling elements to maintain the separation between moving parts to reduce rotational friction and support radial and axial loads. These elements can be one of the following types: ball, cylindrical, spherical, barrel, needle, spindle, or tapered. All rolling bearings are open, shielded, or sealed. Sealed bearings are lubricated with oil or grease in the bearing factory, while open and shielded bearings are meant to be lubricated in place, with periodic reapplication of lubrication, based on use. The shield protects the working parts of the bearing from environmental debris that may be introduced and could reduce the ball bearing speed and lifespan. Rolling bearings are used in a range of applications from agricultural machinery to conveying equipment, robotics, dental equipment, elevators, rolling mills, ship rudder shafts, and aggregate crushers, among others.
RBC Bearings manufactures bearings, pins, rollers, and shafts, and other products for industrial and aerospace applications under the RBC, Nice, Heim, Unibal, and Spherco brands. The company, founded in 1919 and headquartered in Oxford, CT, meets International Organization for Standardization (ISO) standards 9001:2008 and ISO/TS 16949:2009.
