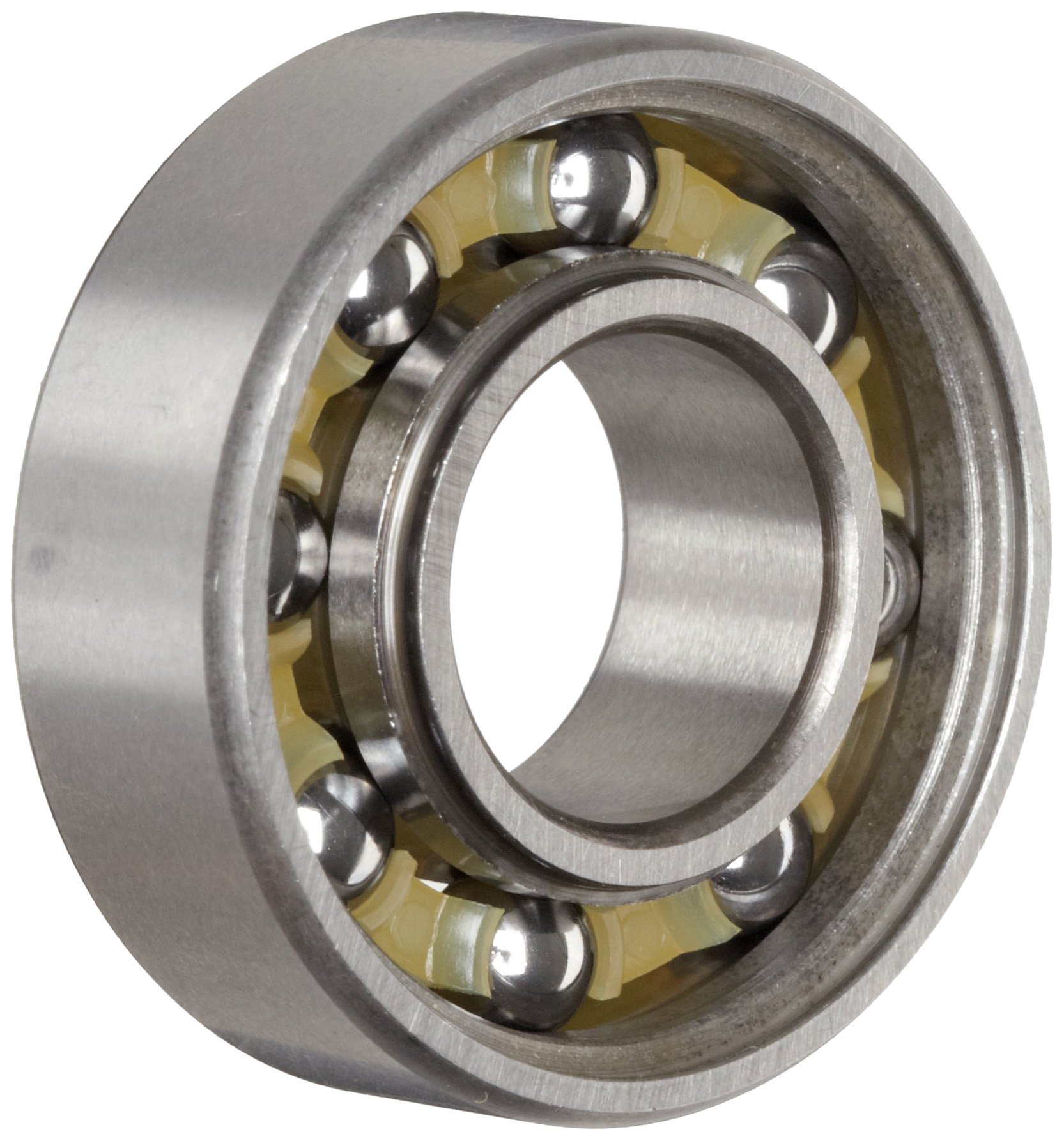

Nice Ball Bearing 1616NS Unshielded, 52100 Bearing Quality Steel, 0.5000" Bore x 1.1250" OD x 0.3750" Width

Be the first to review this item

ASIN B0034G64KM

Specifications for this item
Overall Width
0.3750  inches
Bore Diameter
0.5000  inches
Bearing Number
1616NSTNBF18
Part Number
1616NSTNBF18
Brand Name
Nice
Max Rotational Speed
5000  RPM
Number of Items
1
Bore Diameter Tolerance
+ .0000 / - .0005  inches
Material Type
52100 Bearing Quality Steel
UPC
637400291501
Outside Diameter
1.1250  inches
EAN
0637400291501
Exterior Finish
Chrome Steel
Static Load Capacity
475  pounds
Outside Diameter Tolerance
+ .0000 / - .0005  inches
UNSPSC Code
31171504
Dynamic Load Capacity
1200  pounds
System of Measurement
Inch

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Jul 28? Order in-stock items in the next 1 day 14 hrs 11 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Single-row radial ball bearing for applications that support medium radial loads and speeds up to 5000 RPM
  • 0.5000" straight bore for fitting to conventional cylindrical shafts
  • Nylon cage evenly spaces balls for reduced friction, vibration, and noise
  • Case-hardened 52100 bearing quality steel for optimum wear resistance
  • Open bearing for lubrication applied in place

Package Details

Shipping Weight: 0.05 pounds
Package Size: 1.8 x 1.7 x 0.5 inches

Product Description

This Nice 1616NS single-row radial ball bearing is unsealed and has a nylon cage and precision ground surfaces. It is suitable for applications that require quiet operation and support medium radial loads at speeds up to 5000 rpm. This case-hardened ASTM International 52100 bearing quality steel bearing has a 0.5000" bore diameter, a 1.1250" outside diameter, and a 0.3750" width. Its inside (ID) and outside diameter (OD) surfaces and raceways are ground to a precision of +0.0000 and -0.0005", allowing higher speeds and creating lower friction than comparable-sized roller bearings. The bearing is open on both sides for lubrication applied in place. This bearing has a straight bore for fitting to conventional cylindrical shafts and a nylon cage to prevent the balls from coming into contact with each other during use, reducing friction, vibration, and noise. This radial ball bearing is suitable for use in commercial and industrial applications including household appliances, power tools, original equipment or replacement parts in motors, office automation, and conveyor rollers.

Rolling bearings use rolling elements to maintain the separation between moving parts to reduce rotational friction and support radial and axial loads. These elements can be one of the following types: ball, cylindrical, spherical, barrel, needle, spindle, or tapered. All rolling bearings are open, shielded, or sealed. Sealed bearings are lubricated with oil or grease in the bearing factory, while open and shielded bearings are meant to be lubricated in place, with periodic reapplication of lubrication, based on use. The shield protects the working parts of the bearing from environmental debris that may be introduced and could reduce the ball bearing speed and lifespan. Rolling bearings are used in a range of applications from agricultural machinery to conveying equipment, robotics, dental equipment, elevators, rolling mills, ship rudder shafts, and aggregate crushers, among others.

RBC Bearings manufactures bearings, pins, rollers, and shafts, and other products for industrial and aerospace applications under the RBC, Nice, Heim, Unibal, and Spherco brands. The company, founded in 1919 and headquartered in Oxford, CT, meets International Organization for Standardization (ISO) standards 9001:2008 and ISO/TS 16949:2009.
