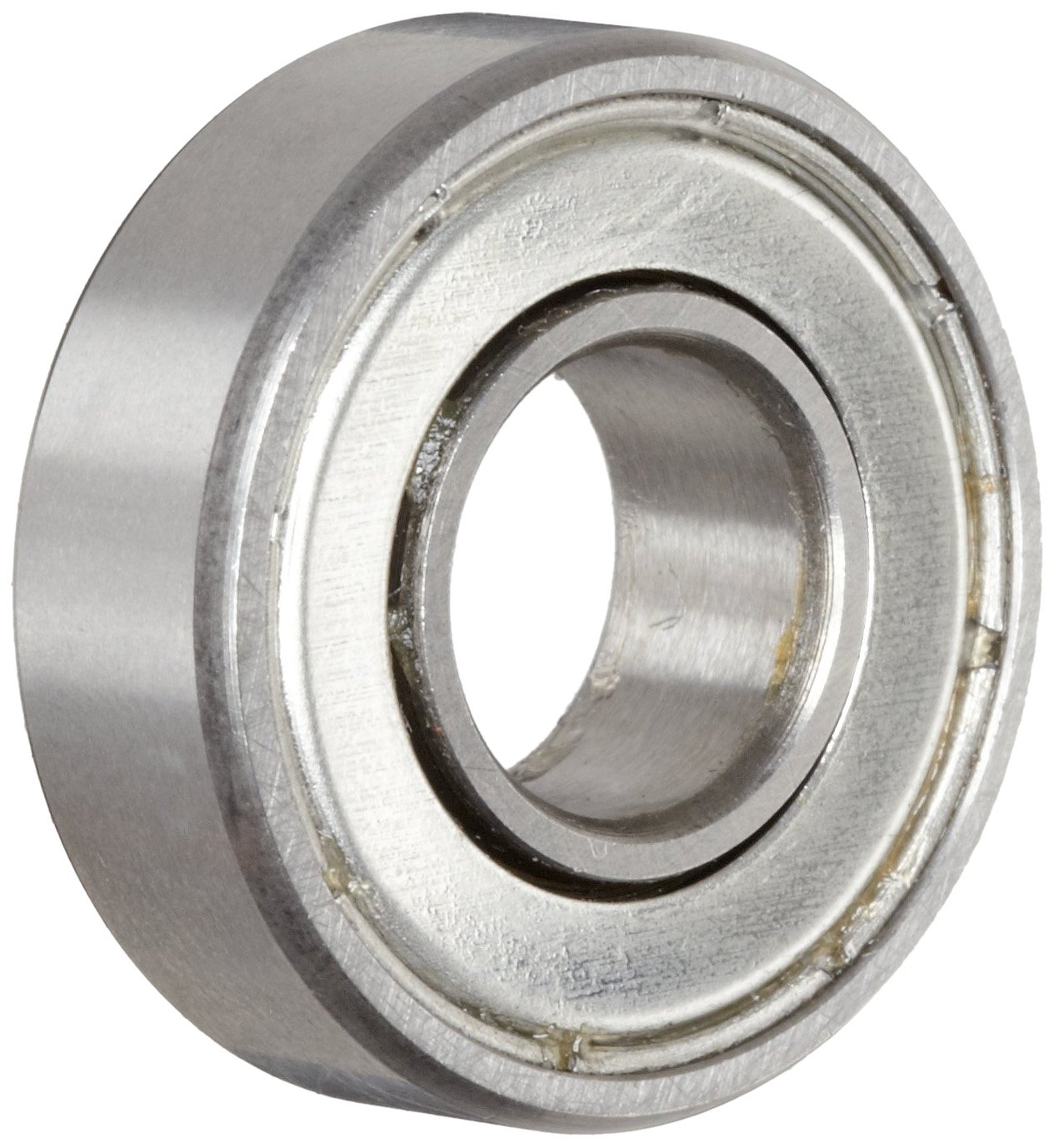

Nice Ball Bearing 1604DS Double Shielded, 52100 Bearing Quality Steel, 0.3750" Bore x 0.8750" OD x 0.2813" Width

Be the first to review this item

ASIN B0034G64HK

Specifications for this item
Overall Width
0.2813  inches
Bore Diameter
0.3750  inches
Bearing Number
1604DSTNTG18
Part Number
1604DSTNTG18
Item Weight
0.03 pounds
Brand Name
Nice
Max Rotational Speed
5000  RPM
Grade
52100
Number of Items
1
Bore Diameter Tolerance
+ .0000 / - .0005  inches
Material Type
Alloy Steel
Outside Diameter
0.8750  inches
UPC
637400291327
EAN
0637400291327
Exterior Finish
Chrome Steel
Static Load Capacity
255  pounds
Outside Diameter Tolerance
+ .0000 / - .0005  inches
UNSPSC Code
31171504
Dynamic Load Capacity
644  pounds
System of Measurement
Inch

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Dec 1? Order in-stock items in the next 1 day 1 hr 28 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Single-row bearing for supporting typical radial loads
  • Steel for durability and resistance to deformity under heavy loads
  • Shields on both sides of the bearing to keep lubricant in and contaminants out

Package Details

Shipping Weight: 0.05 pounds
Package Size: 1.6 x 1.6 x 0.5 inches

Product Description

The Nice 1604DS 0.3750x0.8750x0.2813-inch shielded ball bearing is a single-row bearing for supporting typical radial loads. Its steel construction makes it durable and resistant to deformity under heavy loads. The shields on both sides of the bearing keep lubricant in and contaminants out. This single-row shielded ball bearing is for use in applications that involve combined radial and axial loads and a need for high running accuracy at high rotational speeds. Such applications include clutches, drives, gearboxes, compressors, pumps, turbines, and printing and textile machines, among others.

Rolling bearings use rolling elements to maintain the separation between moving parts to reduce rotational friction and support radial and axial loads. These elements can be one of the following types: ball, cylindrical, spherical, barrel, needle, spindle, or tapered. All rolling bearings are open, shielded, or sealed. Sealed bearings are lubricated with oil or grease in the bearing factory, while open and shielded bearings are meant to be lubricated in place, with periodic reapplication of lubrication, based on use. The shield protects the working parts of the bearing from environmental debris that may be introduced and could reduce the ball bearing speed and lifespan. Rolling bearings are used in a range of applications from agricultural machinery to conveying equipment, robotics, dental equipment, elevators, rolling mills, ship rudder shafts, and aggregate crushers, among others.

RBC Nice Bearings is a subsidiary of RBC Bearings. RBC Bearings has been providing bearing solutions to our customers since 1919. A publicly-traded company (NASDAQ: ROLL), RBC currently has 23 manufacturing facilities worldwide, with 18 located in the USA.
