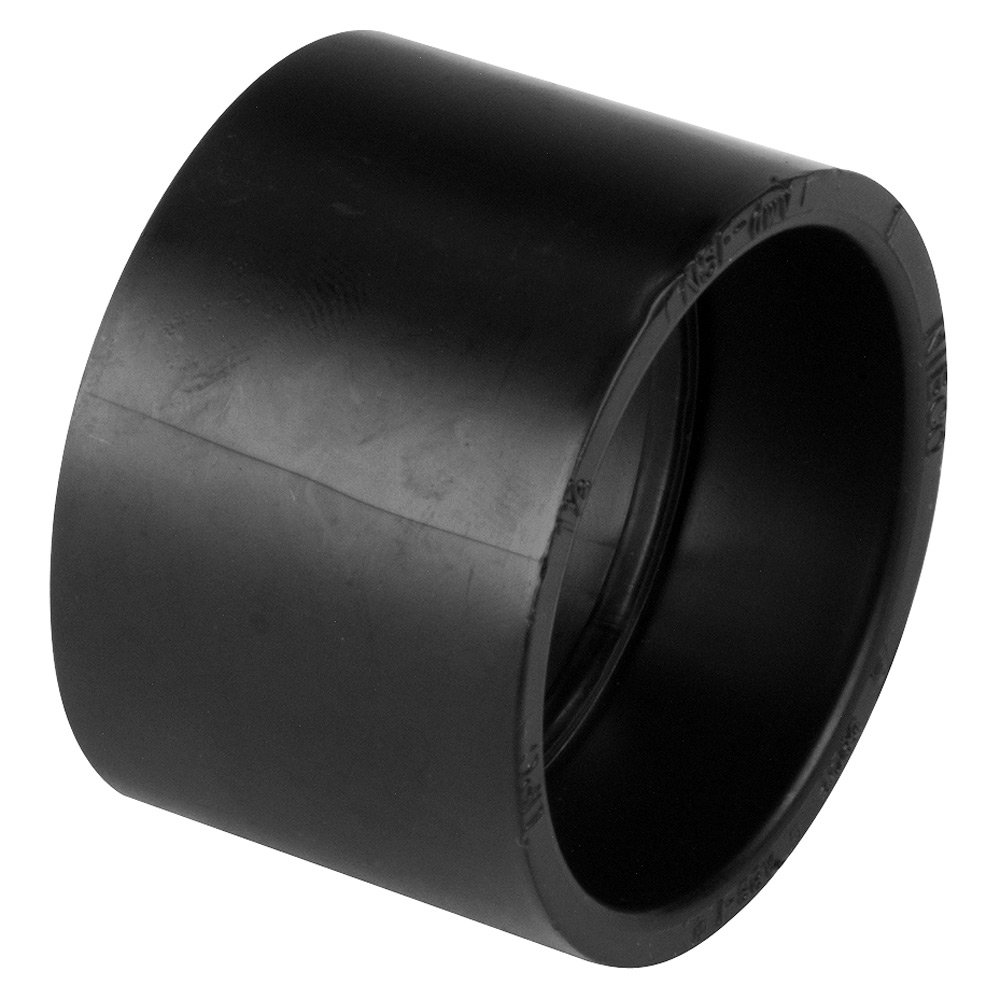

NIBCO 5801 Series ABS DWV Pipe Fitting, Coupling, Schedule 40, Hub

Be the first to review this item

Product Specifications
Item Shape
Coupling
Color Name
Black
Pressure Rating Class
Not Rated
Material Type
Acrylonitrile Butadiene Styrene (ABS)
Brand Name
Nibco
Manufacturer Series Number
5801
Upper Temperature Range
180  Degrees Fahrenheit
Specification Met
CSA B181.1 , ASTM D2665 , ASTM D3965 , ASTM D2661 , ASTM D3311 , UL Listed 94V-0 , NSF/ANSI Standard 14 , NSF U.P. Certified
Schedule
40
Style Name
Socket Weld
Connector Type
Hub
System of Measurement
Inch
LowerTemperature Range
-40  Degrees Fahrenheit

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Apr 22? Order in-stock items in the next 2 days 2 hrs 40 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-6 of 6
Pipe Size Pkg Qty ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All
Currently showing 1-6 of 6
1-1/2" 1 B00270YL2Y 44 $2.89 Buy Options
2" 1 B002E865TG Usually ships in 2 to 4 weeks $0.90 Buy Options
2" x 1-1/2" 1 B007CPLH4Y 9 $2.04 Buy Options
3" 1 B00270WOFU 2 $11.83 Buy Options
3" x 2" 1 B002E843V8 3 $8.69 Buy Options
4" 1 B002E82EHI 5 $4.78 Buy Options

Key Features

  • Coupling for connecting two pipes with the same diameter in a straight run
  • Hub ends for connecting to male unthreaded pipes or fittings
  • ABS-DWV for chemical and corrosion resistance, performance under wide temperature ranges, and light weight for quick assembly
  • Smooth interior finish for reduced friction and material buildup
  • Meets specifications ASTM D2661 and D3311 for quality assurance

Product Description

The NIBCO 5801 schedule 40 coupling pipe fitting is made of acrylonitrile butadiene styrene (ABS) for use in drain, waste, and vent systems (DWV) and has hub connections. This coupling fitting connects two pipes going in the same direction with the same diameter to extend a straight run. It has female hub openings for sliding over the ends of male pipes. The hub end connects to pipes with a smooth bore for enhanced flow. This schedule 40 (standard wall) fitting is made of acrylonitrile butadiene styrene (ABS) for use in non-pressure residential and commercial drain, waste, and vent (DWV) sanitary systems. ABS resists most household chemicals and many corrosive and abrasive industrial liquids, performs under a wide temperature range, has high impact resistance, and is lighter in weight than metal for simple installation above or below ground. This fitting is compatible with schedule 40 ABS-DWV and can be connected to other materials such as steel, copper, or cast iron using transition fittings. This fitting provides superior flow to metal because of its smooth interior finish, which reduces friction and inhibits buildup of materials. This fitting meets American Society for Testing and Materials (ASTM) D2661 and D3311 specifications for quality assurance.

Pipe fittings are components used for connecting, terminating, controlling flow, and changing the direction of piping in many different industries. When purchasing pipe fittings, consider the application, as this will affect material type, shape, size, and required durability. Fittings are available threaded or unthreaded, in many shapes, styles, sizes, and schedules (pipe wall thickness).

NIBCO manufactures flow-control products for construction, industrial, fire protection, and irrigation applications. The company, founded in 1904, is headquartered in Elkhart, IN, and meets International Organization for Standardization (ISO) 9001 standards for quality assurance.
