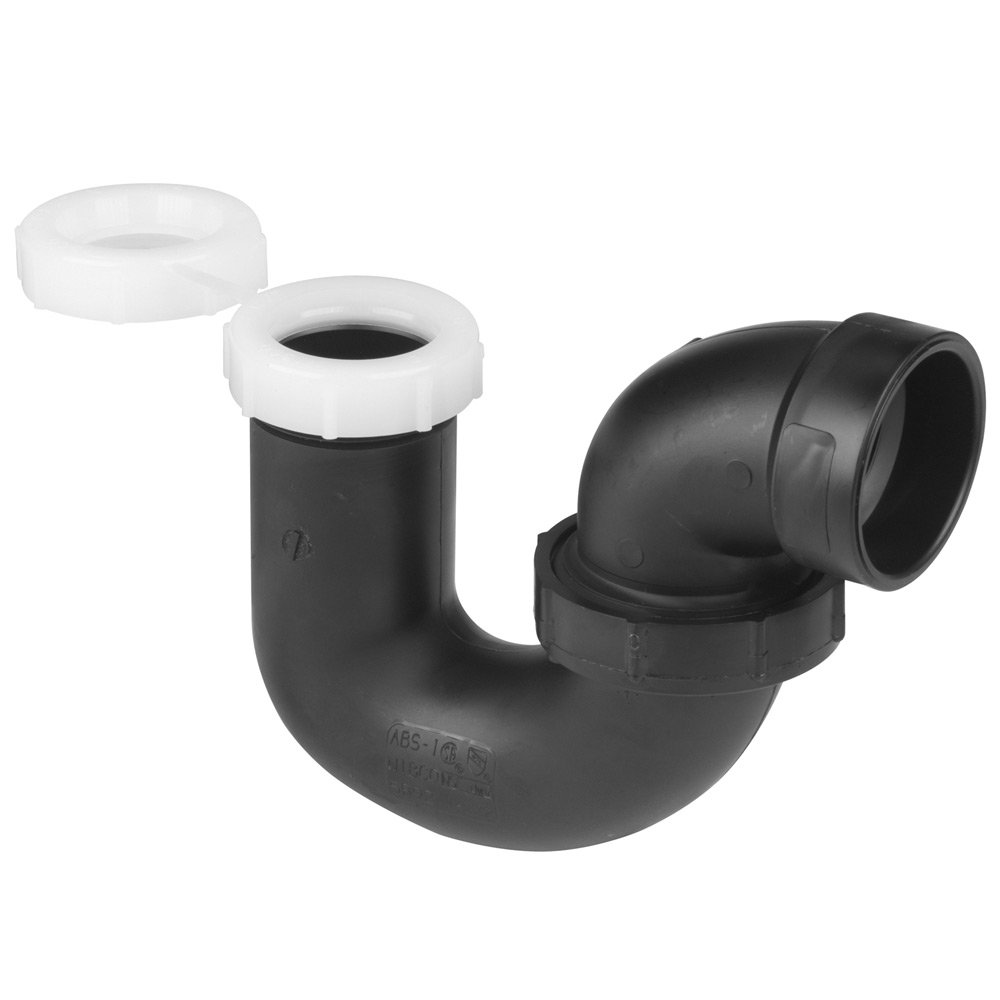

NIBCO 5893 Series ABS DWV Pipe Fitting, Trap, Hub x Slip Joint

Be the first to review this item

Product Specifications
Item Shape
Trap
Color Name
Black
Material Type
Acrylonitrile Butadiene Styrene (ABS)
Pressure Rating Class
Not Rated
Brand Name
Nibco
Manufacturer Series Number
5893
Upper Temperature Range
180  Degrees Fahrenheit
Specification Met
CSA B181.1 , UL Listed 94V-0 , ASTM D2665 , ASTM D3965 , ASTM D2661 and D3311 , NSF/ANSI Standard 14 , NSF U.P. Certified
Connector Type
Hub x Slip Joint
UNSPSC Code
40170000
Style Name
Socket Weld
System of Measurement
Inch
LowerTemperature Range
-40  Degrees Fahrenheit

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Nov 3? Order in-stock items in the next 1 day 12 hrs 18 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-1 of 1
Pipe Size Pkg Qty ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All
Currently showing 1-1 of 1
1-1/2" 1 B007QUVMFO yes $4.96 Buy Options

Key Features

  • Trap for creating a water seal in DWV systems to prevent gases from entering occupied spaces
  • Hub opening on one end and slip joint connection on the other for connecting two unthreaded pipes
  • ABS-DWV for chemical and corrosion resistance, performance under wide temperature ranges, and light weight for quick assembly
  • Smooth interior finish for reduced friction and material buildup
  • Meets specifications ASTM D2661 and D3311 for quality assurance

Product Description

The NIBCO 5893 trap pipe fitting is made of acrylonitrile butadiene styrene (ABS) for use in drain, waste, and vent systems (DWV) and has a hub connection and a slip-joint connection. This trap fitting has a 90-degree turn for creating a water seal in commercial and residential drain, waste, and vent (DWV) systems by automatically trapping water in the arc of the fitting to prevent gases from entering occupied spaces. It has a female hub opening on one end and a slip joint opening on the other for connecting to unthreaded pipes. Tightening the slip nut against the slip joint washer creates a compression seal against leaks and loosening the slip nut allows disassembly of the joined parts. This fitting is made of acrylonitrile butadiene styrene (ABS) for use in non-pressure residential and commercial drain, waste, and vent (DWV) sanitary systems. ABS resists most household chemicals and many corrosive and abrasive industrial liquids, performs under a wide temperature range, has high impact resistance, and is lighter in weight than metal for simple installation above or below ground. ABS can be connected to other material such as steel, copper, or cast iron using transition fittings. This fitting provides superior flow to metal because of its smooth interior finish, which reduces friction and inhibits buildup of materials. This fitting meets American Society for Testing and Materials (ASTM) D2661 and D3311 specifications for quality assurance.

Pipe fittings are components used for connecting, terminating, controlling flow, and changing the direction of piping in many different industries. When purchasing pipe fittings, consider the application, as this will affect material type, shape, size, and required durability. Fittings are available threaded or unthreaded, in many shapes, styles, sizes, and schedules (pipe wall thickness).

NIBCO manufactures flow-control products for construction, industrial, fire protection, and irrigation applications. The company, founded in 1904, is headquartered in Elkhart, IN, and meets International Organization for Standardization (ISO) 9001 standards for quality assurance.
