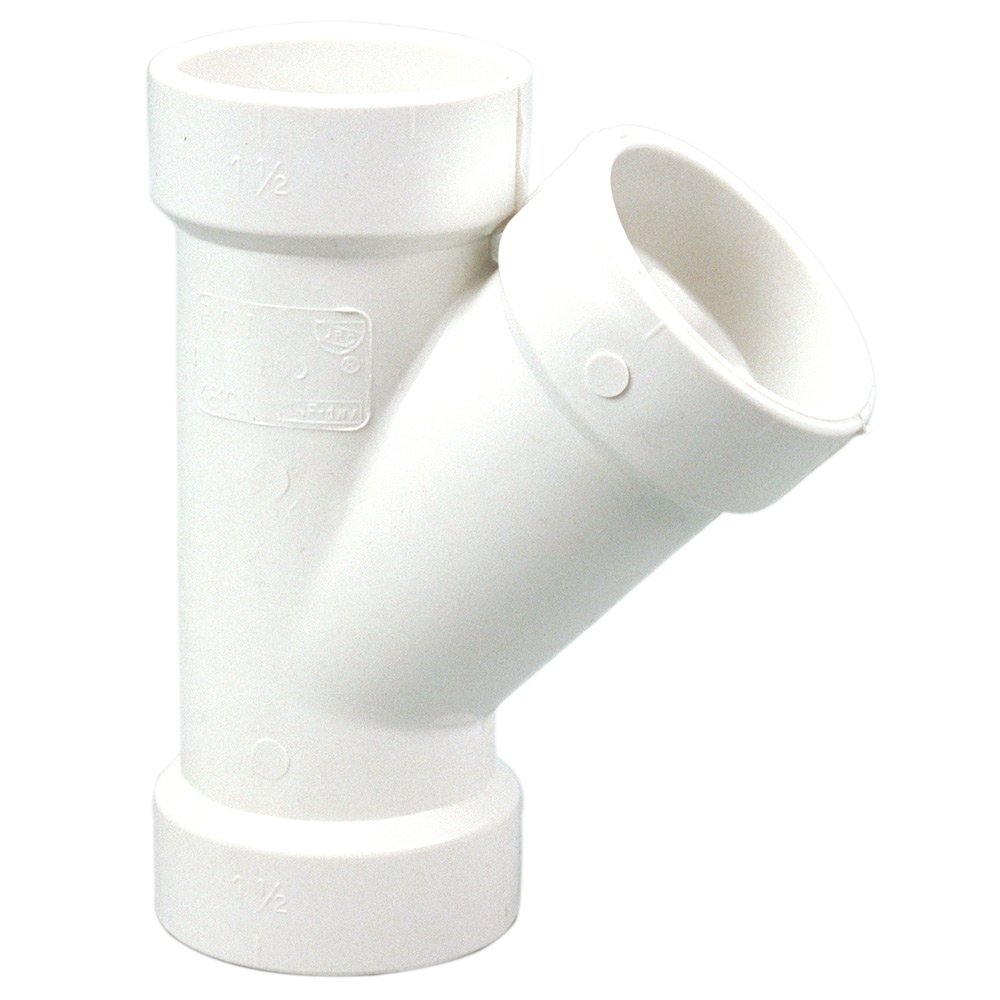

NIBCO 4810 Series PVC DWV Pipe Fitting, Wye, Hub

Be the first to review this item

Product Specifications
Item Shape
Wye
Color Name
White
Material Type
PVC (Polyvinyl Chloride)
Pressure Rating Class
Not Rated
Brand Name
Nibco
Manufacturer Series Number
4810
Upper Temperature Range
140  Degrees Fahrenheit
Specification Met
ASTM D2665 and D3311 , NSF/ANSI Standard 14 , UL Listed 94V-0 , NSF U.P. Certified
Connector Type
Hub
UNSPSC Code
40170000
Style Name
Socket Weld
System of Measurement
Inch
LowerTemperature Range
40  Degrees Fahrenheit

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Oct 22? Order in-stock items in the next 1 hr 16 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-8 of 8
Pipe Size Pkg Qty ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All
Currently showing 1-8 of 8
1-1/2" 1 B007Q2HZUS yes $5.75 Buy Options
2" 1 B007Q2HWA6 yes $3.18 Buy Options
2" x 2" x 1-1/2" 1 B007Q2HX46 yes $4.28 Buy Options
3" 1 B007Q2I0JS yes $9.82 Buy Options
3" x 3" x 2" 1 B000M2WA4K yes $6.93 Buy Options
4" 1 B007Q2HYAO yes $14.76 Buy Options
4" x 4" x 2" 1 B007Q2I1C4 yes $12.99 Buy Options
4" x 4" x 3" 1 B007Q2HYZ4 yes $13.13 Buy Options

Key Features

  • Wye with three openings for connecting and branching three pipes
  • Hub ends for connecting to male unthreaded pipes or fittings
  • PVC-DWV for corrosion resistance, high strength, and less weight than fittings made from metal
  • Smooth interior finish for reduced friction and material buildup
  • Meets specifications ASTM D2665 and D3311 for quality assurance

Product Description

The NIBCO 4810 wye pipe fitting is made of PVC for drain, waste, and vent systems (DWV) and has hub connections. This wye fitting is Y-shaped and connects three pipes through a main run and two branch lines that split off at a 45-degree angle. Pipe dimensions for wyes are represented as A x B x C. "A" and "B" indicate the main run on the fitting, and "C" indicates the branch. It has female hub openings for sliding over the ends of male pipes. The hub end connects to pipes with a smooth bore for enhanced flow. This fitting is made of PVC for use in non-pressure residential and commercial drain, waste, and vent (DWV) sanitary systems. PVC resists corrosion and chemicals, exhibits high strength, and weighs less than fittings made from metal. PVC can be connected to other materials such as steel, copper, or cast iron using transition fittings. This fitting provides superior flow to metal because of its smooth interior finish, which reduces friction and inhibits buildup of materials. This fitting meets American Society for Testing and Materials (ASTM) D2665 and D3311 specifications for quality assurance.

Pipe fittings are components used for connecting, terminating, controlling flow, and changing the direction of piping in many different industries. When purchasing pipe fittings, consider the application, as this will affect material type, shape, size, and required durability. Fittings are available threaded or unthreaded, in many shapes, styles, sizes, and schedules (pipe wall thickness).

NIBCO manufactures flow-control products for construction, industrial, fire protection, and irrigation applications. The company, founded in 1904, is headquartered in Elkhart, IN, and meets International Organization for Standardization (ISO) 9001 standards for quality assurance.
