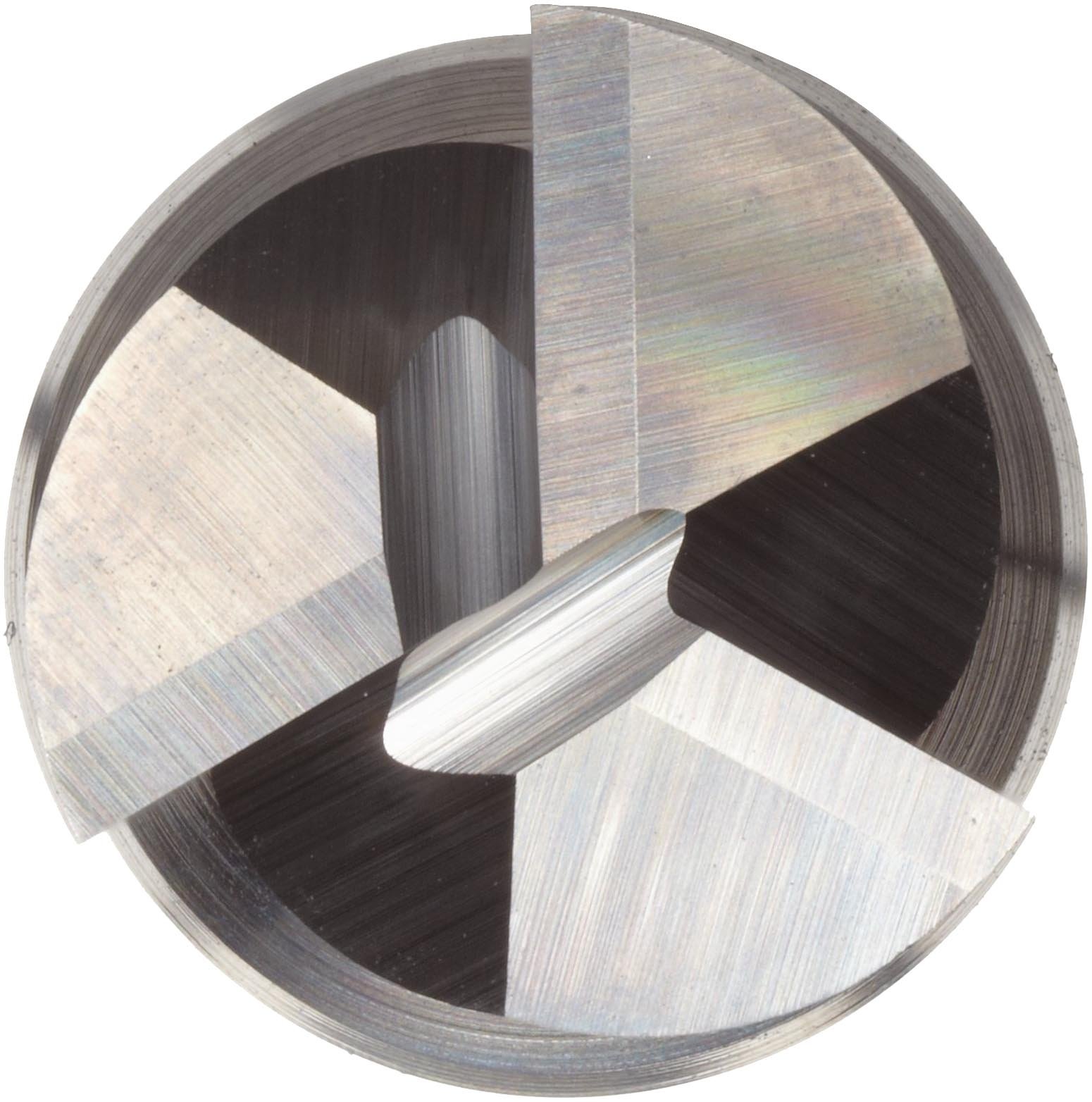

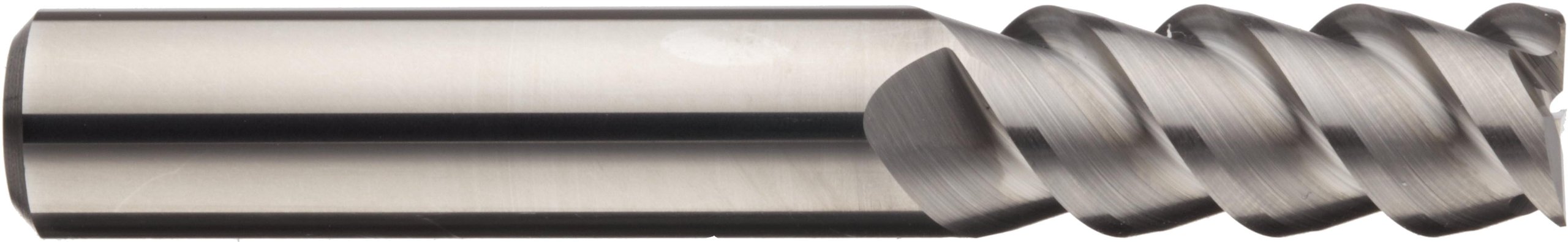

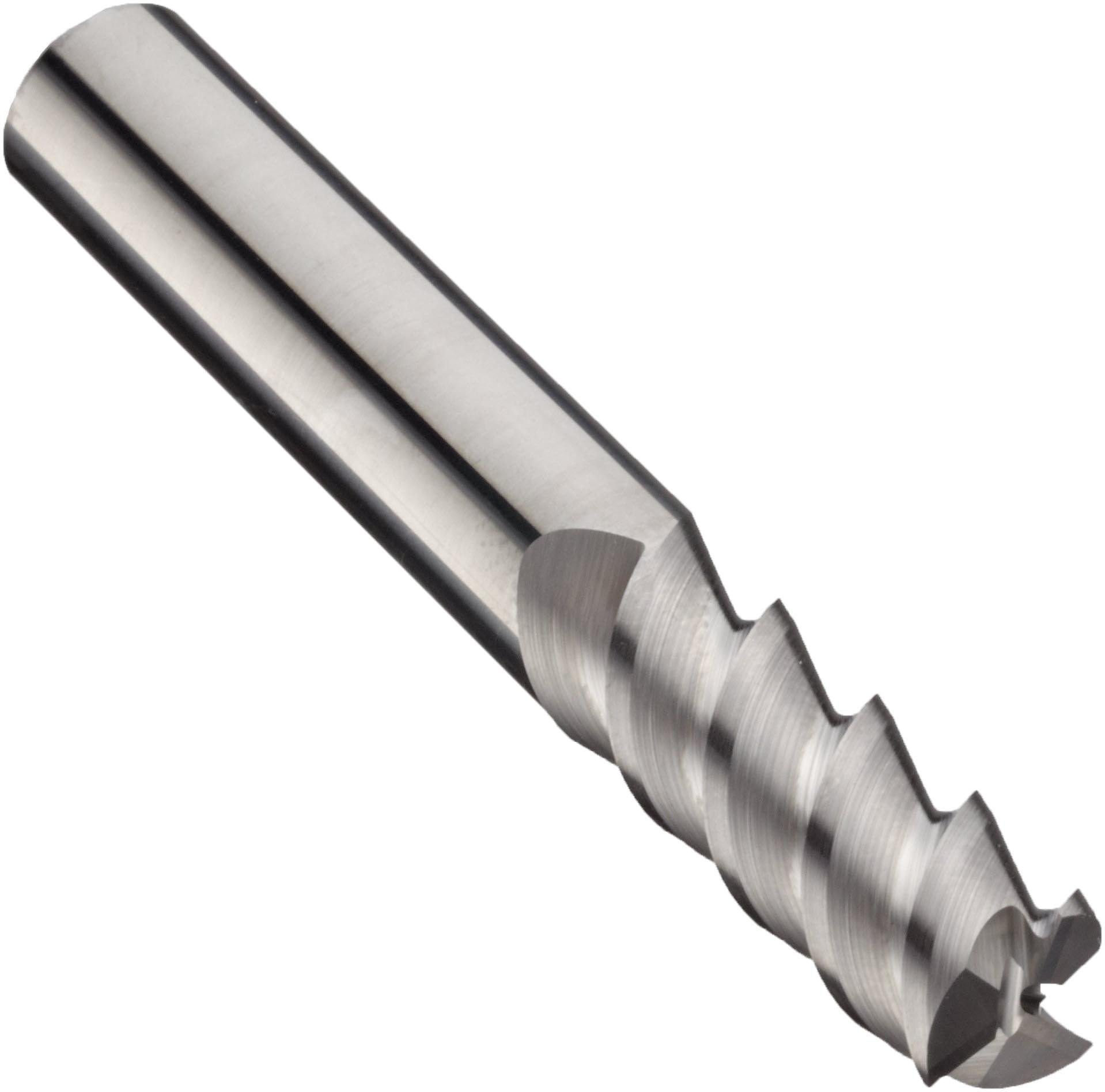

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Niagara Cutter C360 Carbide Square Nose End Mills, Inch, Uncoated (Bright) Finish, Finishing Cut, 60 Degree Helix, For Use With All Materials

Be the first to review this item

Product Specifications
Manufacturer Series Number
C360
Cutting Direction
Right Hand
Compatible Material
All Materials
Finish Types
Uncoated (Bright)
End Cut Type
Center Cutting
Shank Type
Round
Material Type
Carbide
Cut Type
Finishing
Cutting Angle
60  Degrees
Brand Name
Niagara Cutter
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Apr 25? Order in-stock items in the next 21 hrs 6 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-11 of 11
Cutting Diameter Shank Width Cutting Length Overall Length Number of Flutes Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All
Currently showing 1-11 of 11
1/4" 1/4" 0.75" 2.5" 3 18854 B003BIEVAI 2 $19.58 Buy Options
5/16" 5/16" 0.8125" 2.5" 3 18856 B003BIEVAS 1 $23.31 Buy Options
3/8 " 3/8" 0.875" 2.5" 3 18858 B003BIEVB2 2 $28.01 Buy Options
7/16" 7/16" 1" 3" 3 18860 B003BIEVBC 1 $29.08 Buy Options
1/2 " 1/2" 1" 3" 3 18862 B003BIEVBM 1 $43.21 Buy Options
9/16" 9/16" 1.25" 3.5" 3 18864 B003BIEVBW 1 $71.36 Buy Options
5/8" 5/8" 1.25" 3.5" 3 18866 B003BIEVC6 1 $68.22 Buy Options
3/4" 3/4" 1.5" 4" 3 18868 B003BIEVCG 1 $96.21 Buy Options
3/4" 3/4" 1.5" 4" 4 18870 B003BIEVCQ 1 $127.79 Buy Options
1" 1" 1.5" 4" 3 18872 B003BIEVD0 1 $151.10 Buy Options
1" 1" 1.5" 4" 4 18874 B003BIEVDA 1 $197.93 Buy Options

Key Features

  • 60-degree helix angle produces a fine finish by providing efficient cutting action in light profiling and finishing applications
  • Number of flutes varies; fewer flutes have more chip-carrying capacity and more flutes produce a finer finish
  • Carbide can run at higher speeds than high-speed or cobalt steel, resisting wear and high cutting temperatures
  • Uncoated (bright) tools have no additional surface treatment or coating for use on a broad range of materials
  • Square nose end mills (also called square end) create sharp, unrounded cuts

Product Description

The Niagara Cutter C360 uncoated carbide square nose end mill has a 60-degree helix angle for light profiling and finishing applications on a range of materials. The number of flutes varies; fewer flutes provide better chip-carrying capacity, while more flutes produce a finer finish. The 60-degree helix offers increased cutting action compared to end mills with lower helix angles, as it moves excess material quickly up the spiral and away from the workpiece.

The carbide substrate is harder than high-speed or cobalt steel, making it more wear resistant at high speeds and providing longer tool life. With no coating or surface treatment, this uncoated tool can be used on a broad range of materials. The tool’s square end has straight cutting edges that create sharp, unrounded cuts, and the center-cutting design has cutting teeth at the end of the tool, so it can be fed into the workpiece like a drill bit. The cutting diameter is +0.000” to -0.002”. The round shank accommodates a range of tool holders.

End mills are designed to remove material and create multi-dimensional shapes and profiles. They have cutting edges along the outside diameter and flutes that remove chips from the cutting area and allow cooling fluids to enter. If heat is not reduced effectively, the tool’s cutting edges will dull and additional material buildup can occur. The number of flutes can range from two to eight. Two-flute designs offer the most efficient chip removal, but more flutes provide a smoother finish. The shank is the end of the tool held in place by a tool holder or machine. Center-cutting end mills can create three-dimensional shapes and profiles, and make plunge cuts similar to a drill bit. Non-center-cutting end mills are for applications such as peripheral milling and finishing, but cannot make plunge cuts.

Niagara Cutter has been designing and manufacturing precision cutting tools since 1954. Specializing in end mills, cutting mills, and saws, the company is based in New York and manufactures its tools at facilities in Pennsylvania and Massachusetts. This allows the company control over production, from substrate to coating, which is essential for customers in a variety of industries, especially aerospace and automotive.
