Niagara Cutter STS430 Stabilizer Carbide End Mill, Anti-Vibration for Steel & Cast Iron, AlCrN Coated, 4 Flutes, Square End

The Niagara Cutter STS430 Stabilizer AlCrN-coated carbide square nose end mill with four flutes features the patented Stabilizer flute design, which combines variable helix angles and unevenly spaced flutes of differing lengths to allow deeper cuts at higher speeds on hard materials such as carbon and tool steels, steel alloys, and cast iron. The helix angle varies from tooth to tooth to reduce tool vibration and provide efficient chip removal. The unequal length and spacing of the flutes creates an out-of-phase cutting action that further reduces tool vibration and extends tool life. Aluminum chromium nitride (AlCrN) coating provides good hardness and better resistance to chemical breakdown in high-heat applications than TiAlN, TiCN, and TiN coatings. The carbide substrate is harder than high-speed or cobalt steel, making it more wear resistant at high speeds and hot temperatures, providing longer tool life. The Stabilizer flute geometry, carbide substrate, and AlCrN coating make the STS430 suitable for machining the hard carbon and tool steels, steel alloys, and cast irons used in industrial manufacturing, tool production, and the making of dies and molds.

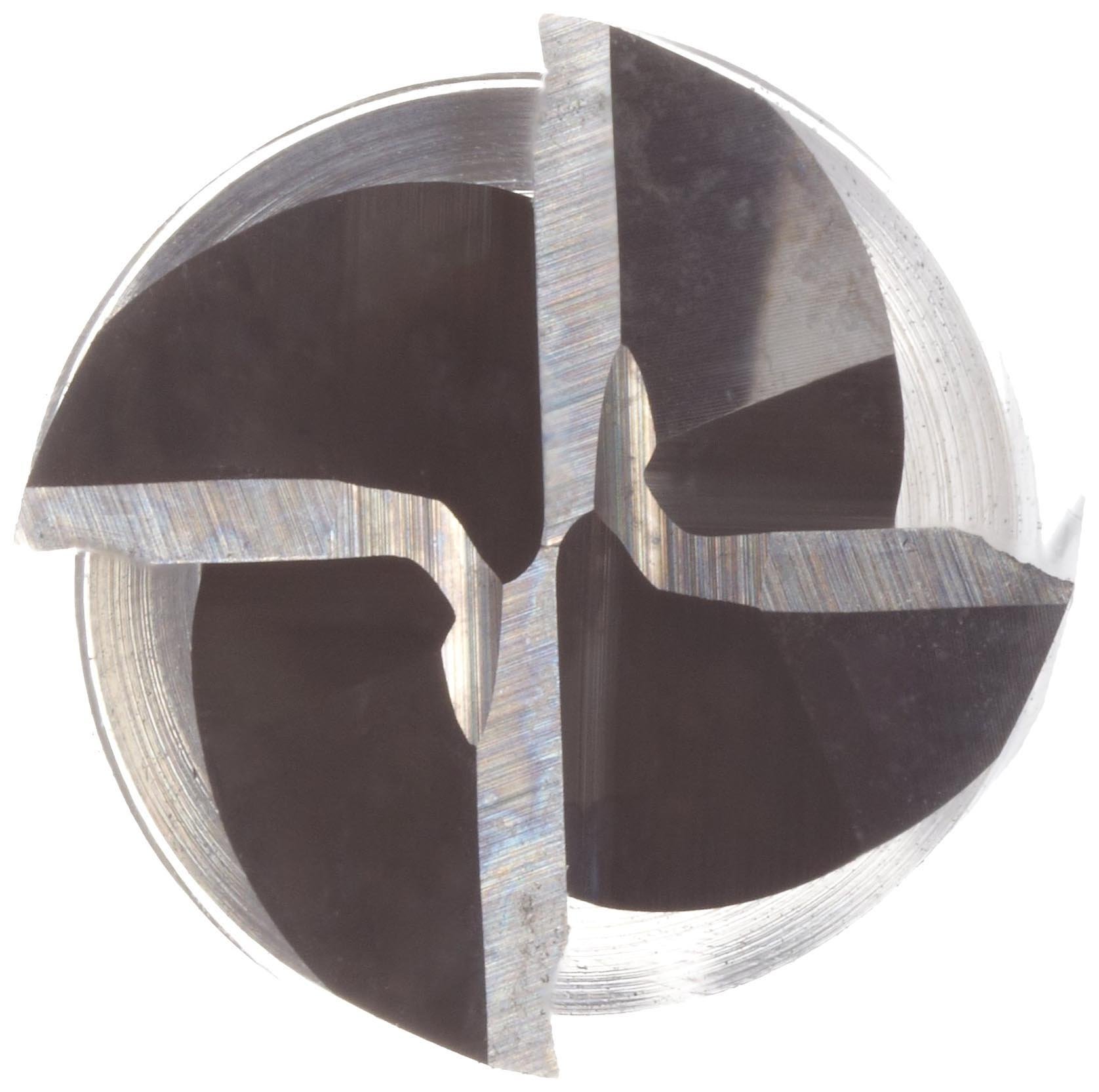

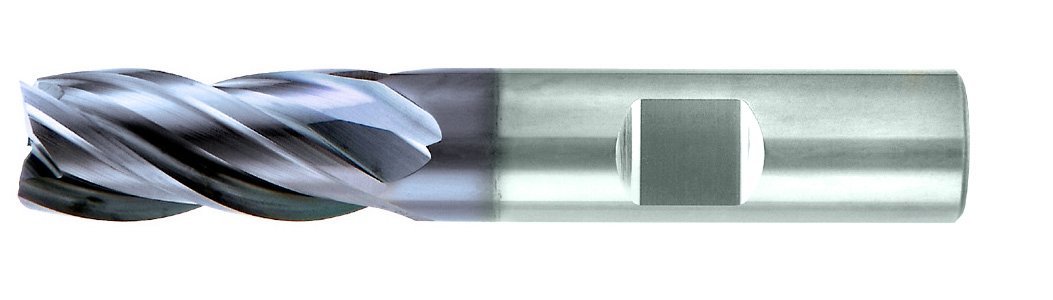

The four-flute design is well suited for fine finishing, and the tool’s square end has straight cutting edges that create sharp, unrounded cuts. The center-cutting design has cutting teeth at the end of the tool, so it can be fed into the workpiece like a drill bit. The tool has an eccentric primary relief feature that provides better support behind the cutting edge than a flat relief, reducing tooth breakage in deep cuts. The STS430 comes with a round shank for shank diameters smaller than 3/8” and a Weldon shank on shank diameters of 3/8” or larger. Cutting diameter tolerance is +0.000" to -0.002".

End mills are designed to remove material and create multi-dimensional shapes and profiles. They have cutting edges along the outside diameter and flutes that remove chips from the cutting area and allow cooling fluids to enter. If heat is not reduced effectively, the tool’s cutting edges will dull and additional material buildup can occur. The number of flutes can range from two to eight. Two-flute designs offer the most efficient chip removal, but more flutes provide a smoother finish. The shank is the end of the tool held in place by a tool holder or machine. Center-cutting end mills can create three-dimensional shapes and profiles, and make plunge cuts similar to a drill bit. Non-center-cutting end mills are for applications such as peripheral milling and finishing, but cannot make plunge cuts.

Niagara Cutter has been designing and manufacturing precision cutting tools since 1954. Specializing in end mills, cutting mills, and saws, the company is based in New York and manufactures its tools at facilities in Pennsylvania and Massachusetts. This allows the company control over production, from substrate to coating, which is essential for customers in a variety of industries, especially aerospace and automotive.
