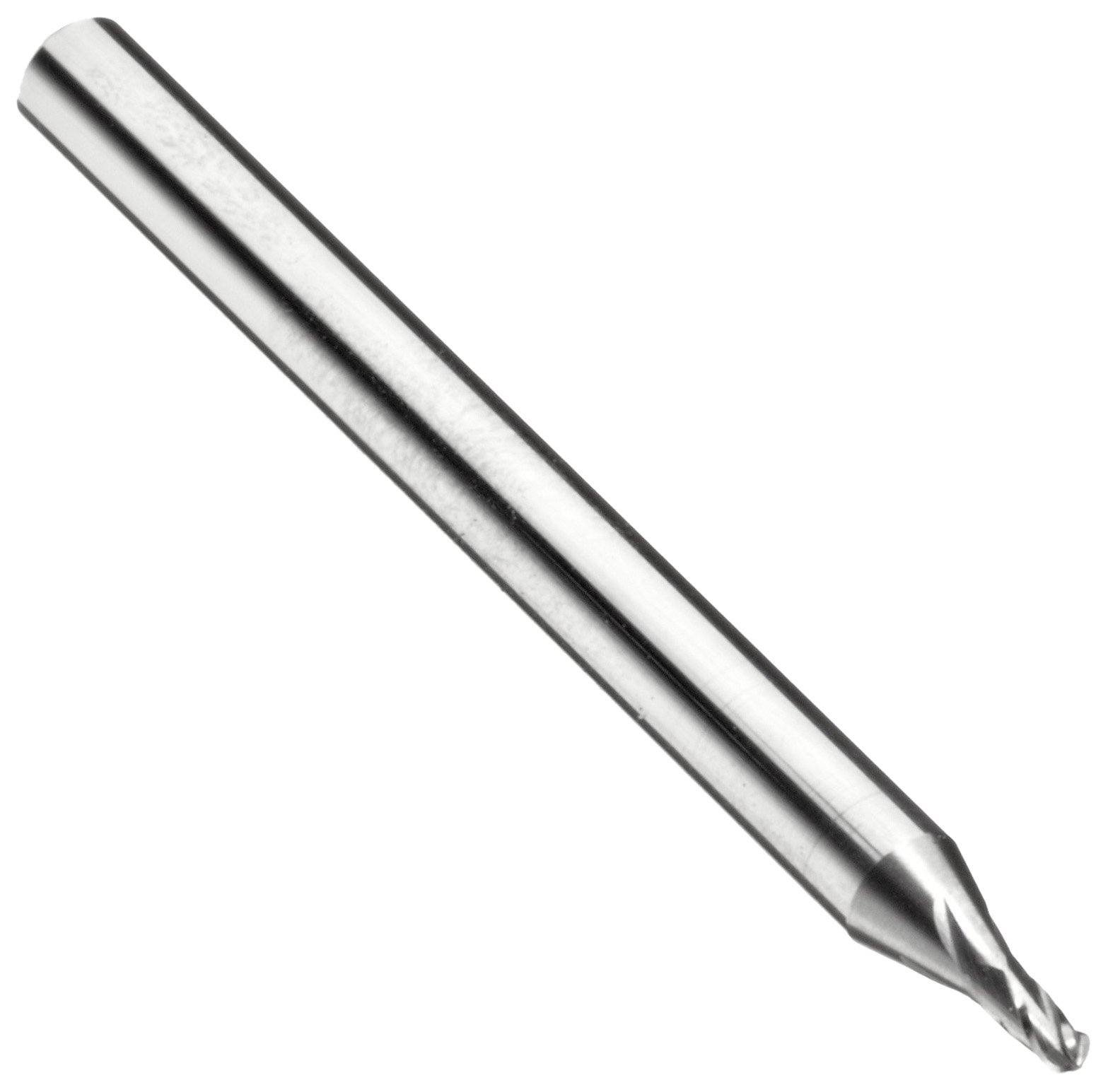

Niagara Cutter MESB430 Miniature Carbide End Mill, Uncoated (Bright), 4 Flutes, Stub Ball End

Be the first to review this item

ASIN B004CM078M

Specifications for this item
Finish Types
Uncoated (Bright)
Material Type
Carbide
Brand Name
Niagara Cutter

This item is no longer available

This item is NOT eligible for "Free Standard Shipping on orders over $50.00" promotion. (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Miniature end mills create the intricate cuts needed for precision industries
  • Stub length increases the strength of the tool, making it less likely to break in the workpiece
  • Four flutes produce a better finish than fewer flutes
  • Ball nose end (also called ball end) creates contoured surfaces
  • Carbide can run at higher speeds than high-speed steel, offering increased wear resistance and high cutting temperatures

Product Description

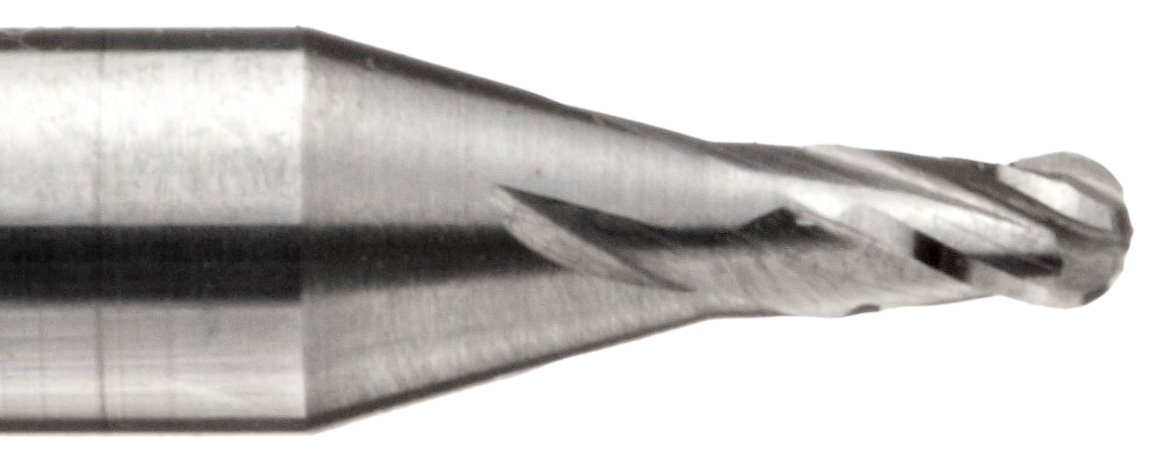

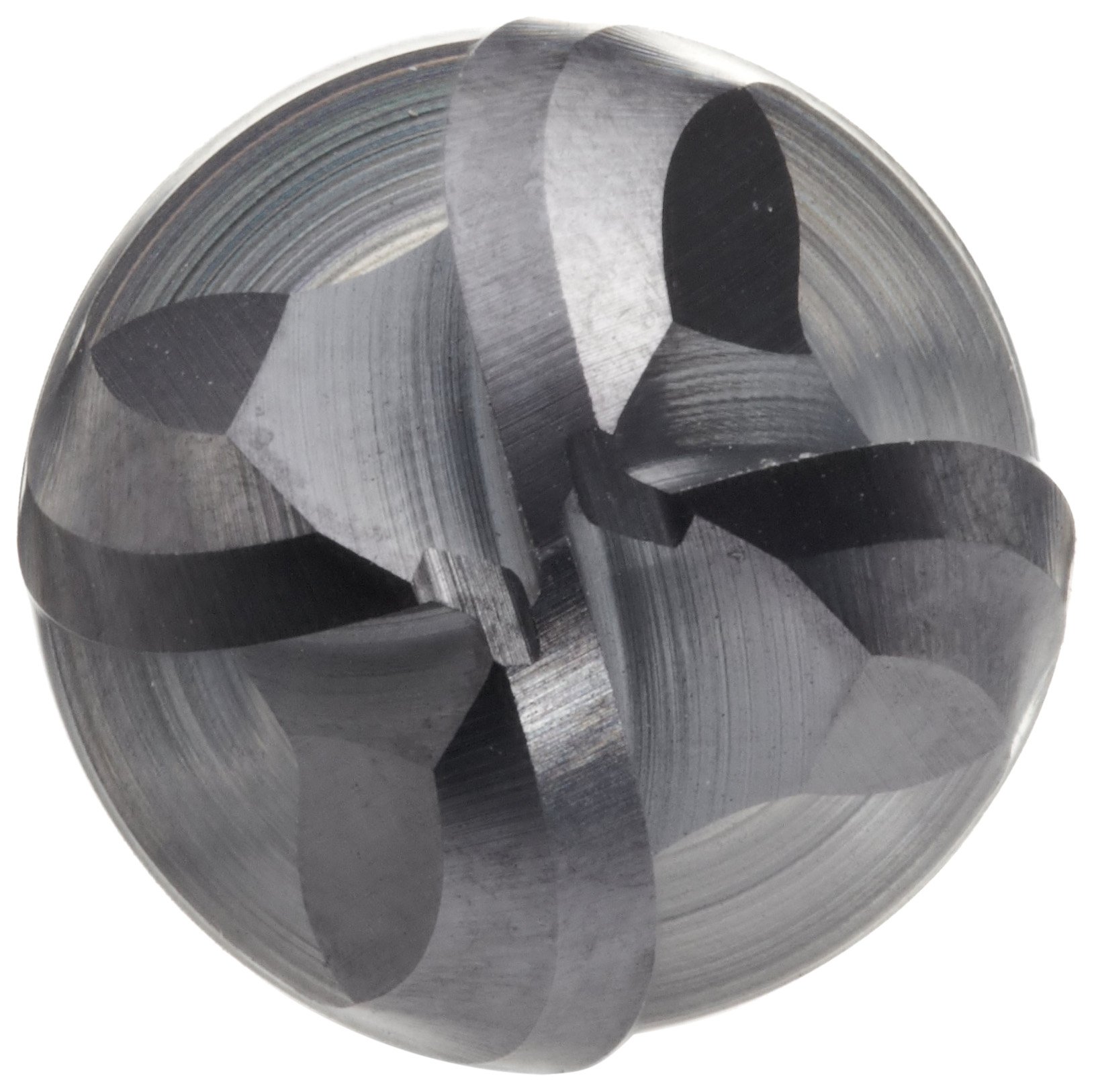

The Niagara Cutter MESB430 miniature uncoated (bright) carbide ball nose end mill with stub length has four flutes and a 30-degree helix to create the intricate cuts and fine finish needed for precision industries such as electronics and medical-device manufacturing. Four flutes produce a better finish than fewer flutes. The 30-degree helix balances lower angles’ strong cutting edge for difficult-to-machine materials with higher angles’ increased cutting action. This allows efficient cuts in the difficult-to-machine materials common in precision industries such as stainless steel and reinforced plastic. The ball end is suited for contouring applications where sharp edges are not required, and the center-cutting design allows the tool to plunge into the workpiece like a drill bit. The stub length increases tool strength and makes it less likely to break in the material being machined. It is best used when depth of cut is shallow.

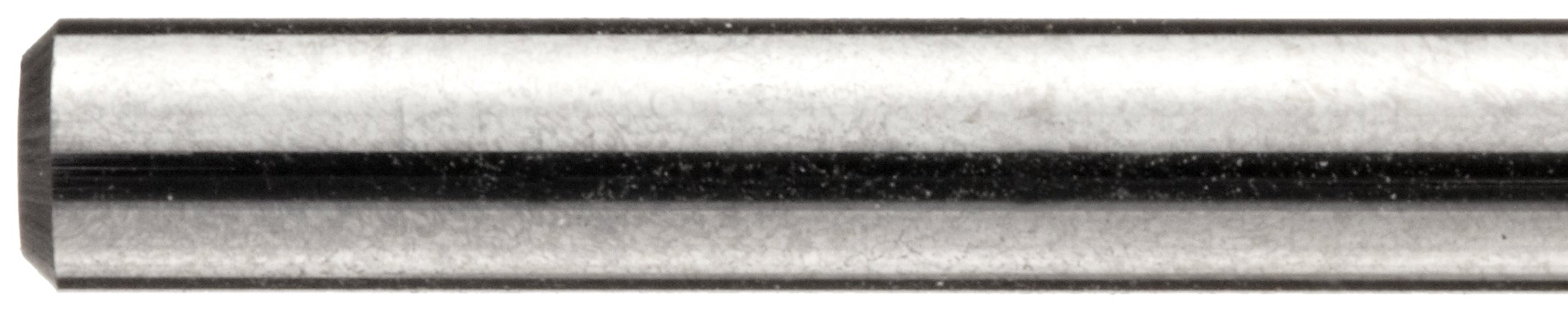

The carbide substrate is harder than high-speed or cobalt steel, making it more wear resistant at high speeds and providing longer tool life. With no coating or surface treatment, it features just the base material to help the miniature mill retain its sharp edges and tight tolerances. The tool has a total indicated runout (TIR) of + or - 0.0002”. This measurement defines the positional accuracy of the end mill’s horizontal movement from the shank to the cutting edge. To increase rigidity and ensure low runout, the tool should be held by a precision holder. Cutting diameter tolerance is + or - 0.0005”. All sizes have an overall length of 1 1/2” and a shank diameter of 1/8”.

End mills are designed to remove material and create multi-dimensional shapes and profiles. They have cutting edges along the outside diameter and flutes that remove chips from the cutting area and allow cooling fluids to enter. If heat is not reduced effectively, the tool’s cutting edges will dull and additional material buildup can occur. The number of flutes can range from two to eight. Two-flute designs offer the most efficient chip removal, but more flutes provide a smoother finish. The shank is the end of the tool held in place by a tool holder or machine. Center-cutting end mills can create three-dimensional shapes and profiles, and make plunge cuts similar to a drill bit. Non-center-cutting end mills are for applications such as peripheral milling and finishing, but cannot make plunge cuts.

Niagara Cutter has been designing and manufacturing precision cutting tools for over 50 years. Specializing in end mills, cutting mills, and saws, the company manufactures all of its tools at its two facilities in the USA. This allows the company complete control over production, an essential benefit for customers in a variety of industries, especially aerospace and automotive.
