Niagara Cutter DTF310 High-Speed Steel End Mill, General Purpose, Regular Length, TiN Coated, 3 Flutes, Double Square End

Be the first to review this item

ASIN B004CLZXRI

Specifications for this item
Finish Types
TiN
Material Type
High Speed Steel
Part Number
NiagaraDTF310
Number of Flutes
3
UNSPSC Code
27112803
Brand Name
Niagara Cutter

This item is no longer available

This item is NOT eligible for "Free Standard Shipping on orders over $50.00" promotion. (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

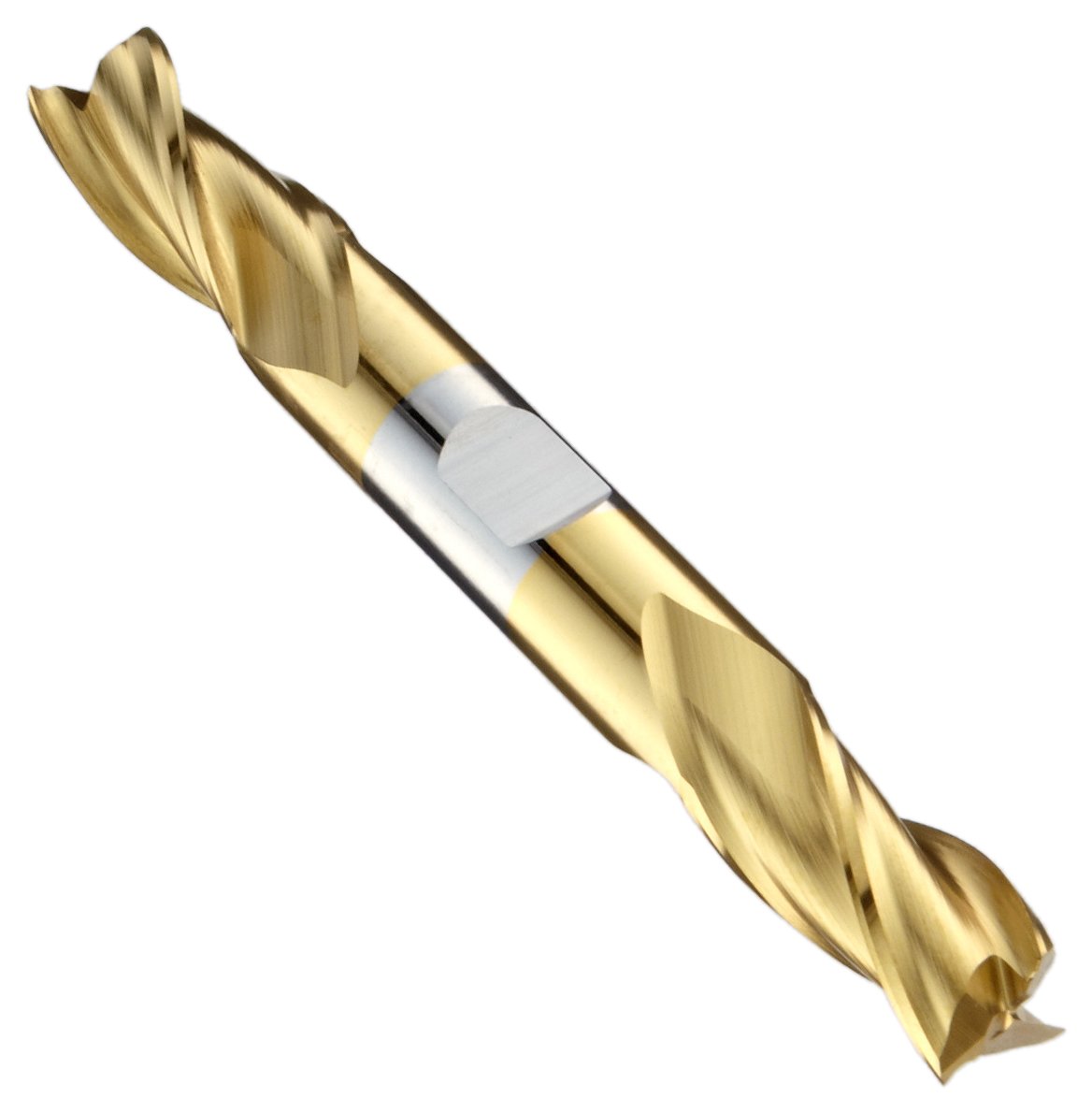

  • Double-end square nose end mills create sharp, unrounded cuts and have cutting edges on both ends for longer tool life
  • Three flutes provide better chip-carrying capacity than four flutes and a finer finish than two, reducing the need for a second finishing cut in some applications
  • Titanium nitride (TiN) is a general-purpose coating that combines high-temperature resistance and increased hardness compared to uncoated end mills
  • High-speed steel is compatible with a variety of materials

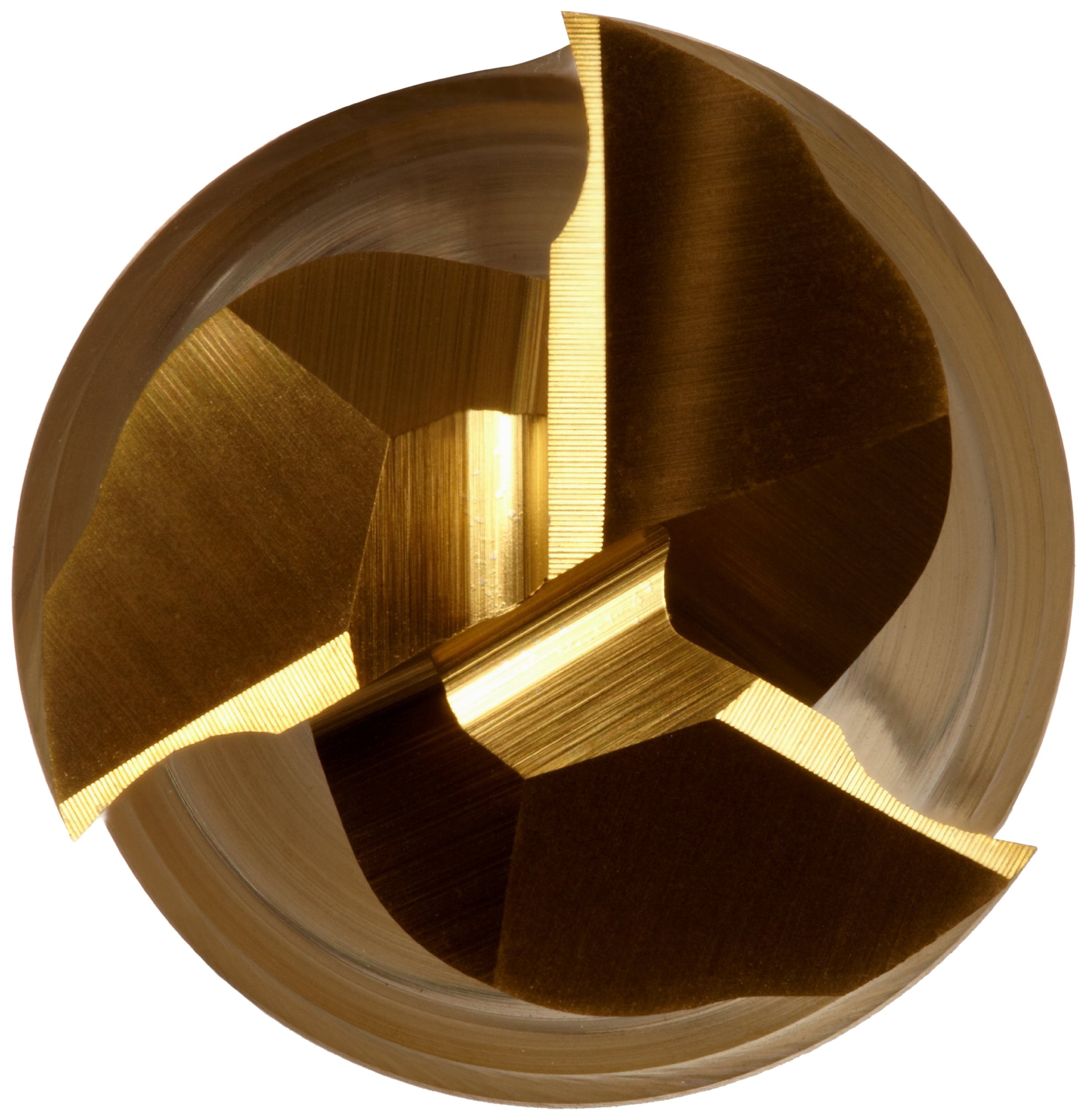

  • Center-cutting design allows the end mill to plunge into material like a drill bit while also performing conventional surface milling

Product Description

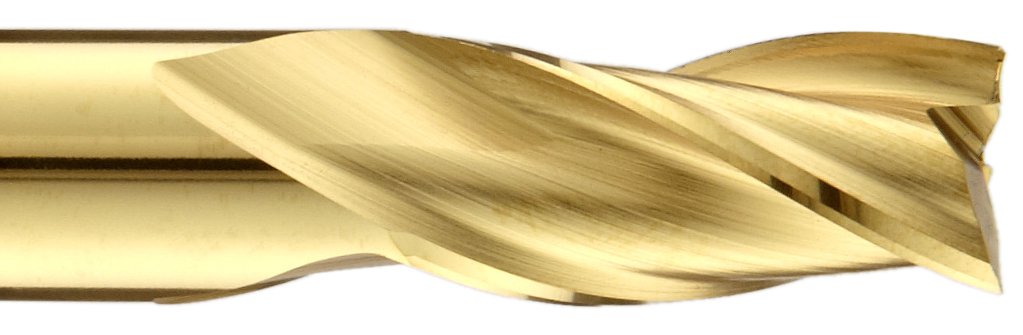

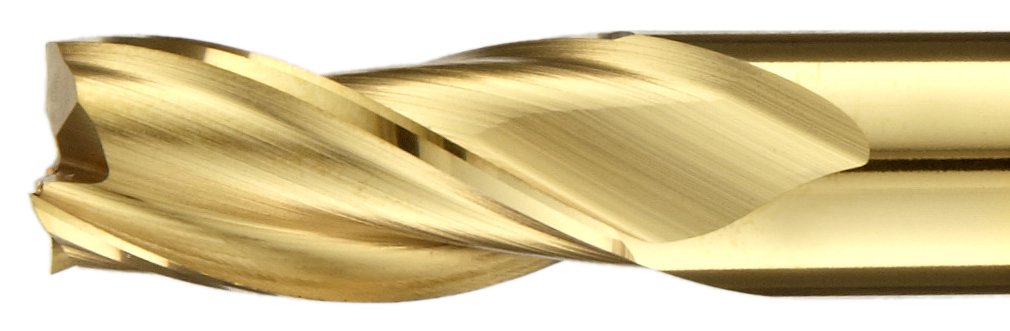

The Niagara Cutter DTF310 TiN-coated high-speed steel double-end square nose end mill has three flutes and a 30-degree helix for general-purpose applications in a wide range of materials. The double-end design has cutting edges at both ends of the shank that can be swapped out when one side begins to show signs of wear, doubling the tool life compared to single-end tools. The end mill’s three flutes provide better chip-carrying capacity than four flutes and a finer finish than two. They efficiently remove excess material from the cutting area and provide a third cutting edge to create an improved finish that may eliminate the need for a second finishing cut in some applications. The 30-degree helix angle supports general-purpose applications. It balances lower angles’ strong cutting edge for difficult-to-machine materials with higher angles’ increased cutting action.

The general-purpose TiN coating combines stability at high temperatures with hardness for wear protection, increasing tool life and performance compared to uncoated end mills. (TiN is suitable for a range of materials, but TiCN or uncoated end mills are recommended for machining aluminum.) High-speed steel (HSS) is a common general-purpose steel for cutting tools and is compatible with a variety of materials. The tool’s square end has straight cutting edges that create sharp, unrounded cuts. The center-cutting design has cutting teeth at the end of the tool, so it can be fed into the workpiece like a drill bit. Cutting diameter tolerance is +0.0000" to -0.0015". The tool has a Weldon shank.

End mills are designed to remove material and create multi-dimensional shapes and profiles. They have cutting edges along the outside diameter and flutes that remove chips from the cutting area and allow cooling fluids to enter. If heat is not reduced effectively, the tool’s cutting edges will dull and additional material buildup can occur. The number of flutes can range from two to eight. Two-flute designs offer the most efficient chip removal, but more flutes provide a smoother finish. The shank is the end of the tool held in place by a tool holder or machine. Center-cutting end mills can create three-dimensional shapes and profiles, and make plunge cuts similar to a drill bit. Non-center-cutting end mills are for applications such as peripheral milling and finishing, but cannot make plunge cuts.

Niagara Cutter has been designing and manufacturing precision cutting tools since 1954. Specializing in end mills, cutting mills, and saws, the company is based in New York and manufactures its tools at facilities in Pennsylvania and Massachusetts. This allows the company control over production, from substrate to coating, which is essential for customers in a variety of industries, especially aerospace and automotive.
