Niagara Cutter A208 High-Speed Steel End Mill, Aluminum Cutting, High Helix, TiCN Coated, 2 Flutes, Square End

Be the first to review this item

ASIN B004CLZYE0

Specifications for this item
Compatible Material
Aluminum
Finish Types
TiCN
Material Type
High Speed Steel
Part Number
NiagaraA208
Brand Name
Niagara Cutter

This item is no longer available

This item is NOT eligible for "Free Standard Shipping on orders over $50.00" promotion. (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • 37-degree helix angle provides efficient cutting action and chip evacuation required to machine aluminum and other nonferrous materials
  • Two flutes offer better chip-carrying capacity than end mills with more flutes
  • Titanium carbon nitride (TiCN) coating lubricates the end mill for high-temperature stability and offers better abrasion resistance than uncoated tools
  • High-speed steel is a common general-purpose steel for cutting tools
  • Square end creates sharp, unrounded cuts

Product Description

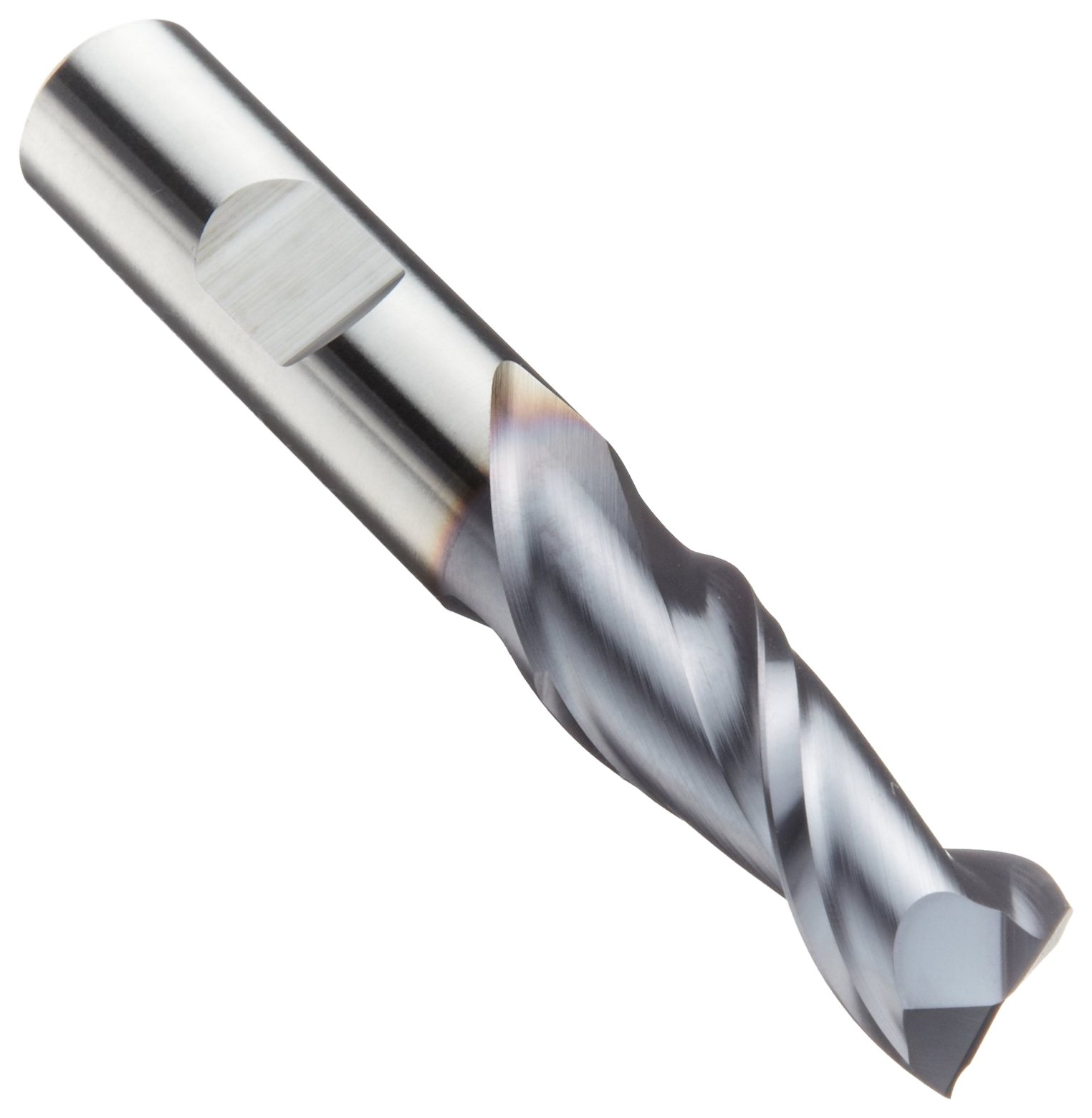

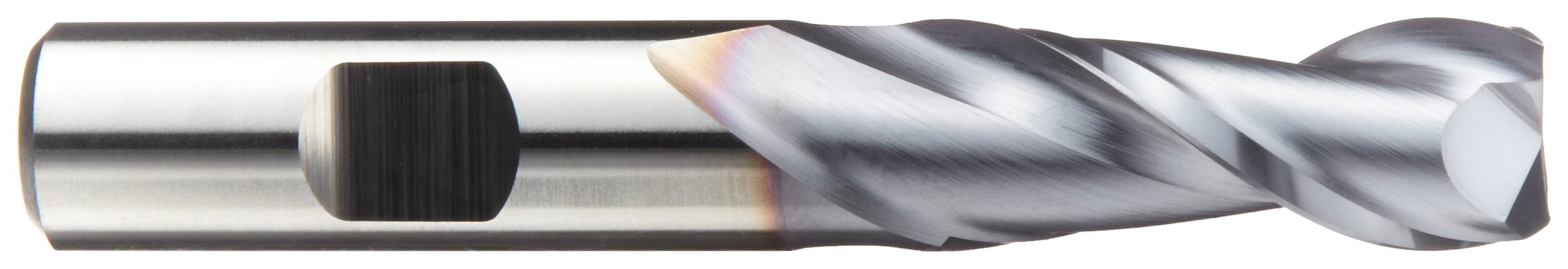

The Niagara Cutter A208 TiCN-coated high-speed steel square nose end mill has two flutes and a 37-degree helix angle for profiling and slotting applications on aluminum and other nonferrous materials. The 37-degree helix offers increased cutting action compared to end mills with lower helix angles, as it moves excess material quickly up the spiral and away from the workpiece. The two flutes have better chip-carrying capacity than end mills with more flutes while offering additional support when the tool goes deep into the material in applications with a high depth of cut.

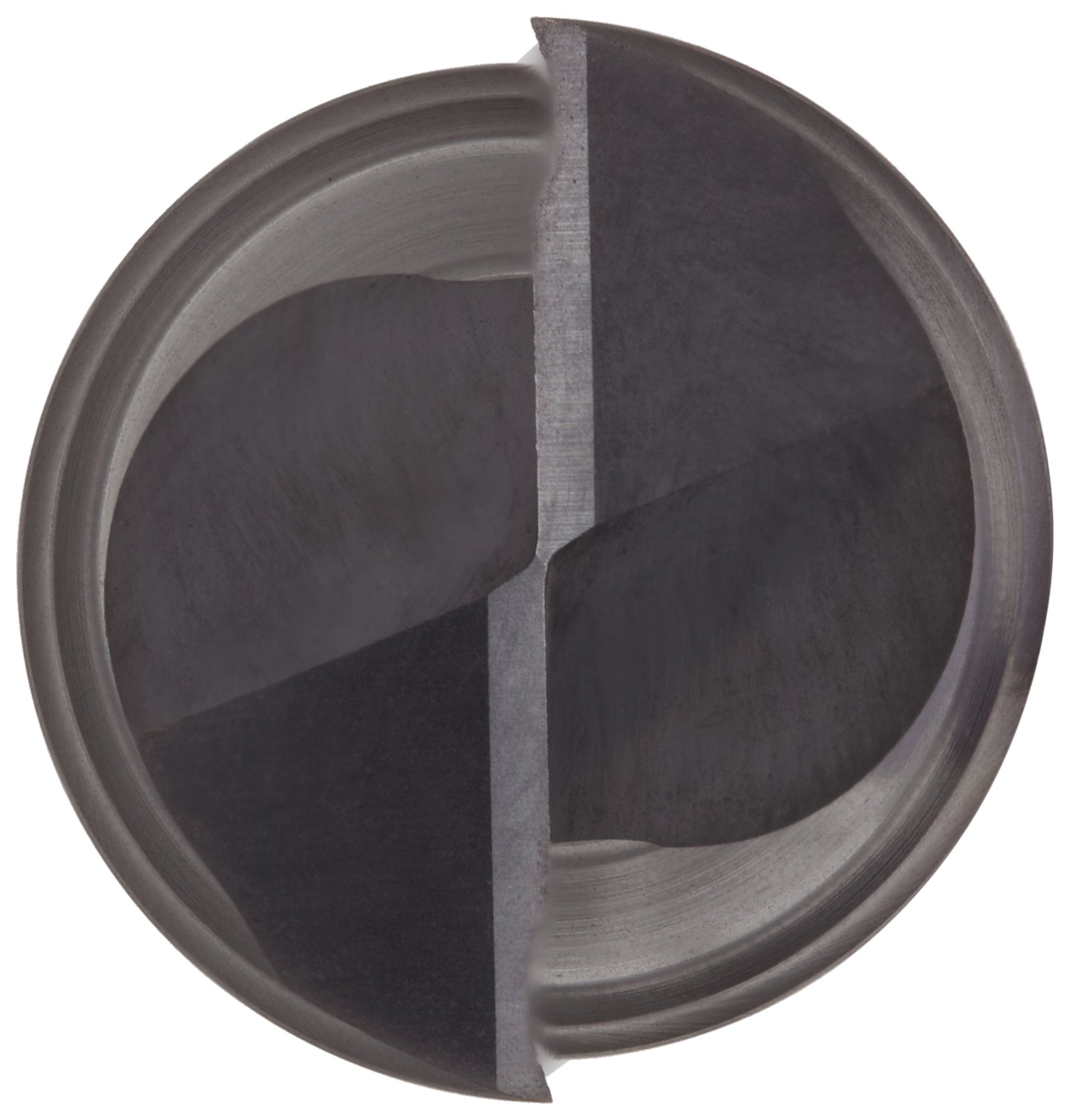

The TiCN coating lubricates the end mill for high-temperature stability, and offers increased hardness and greater abrasion resistance than uncoated tools. High-speed steel (HSS) is a common general-purpose steel for cutting tools. The tool’s square end creates sharp, unrounded cuts. The center-cutting design has cutting teeth at the end of the tool, so it can be fed into the workpiece like a drill bit. Cutting diameter tolerance is +0.001" to -0.000". The round shank accommodates a range of tool holders.

End mills are designed to remove material and create multi-dimensional shapes and profiles. They have cutting edges along the outside diameter and flutes that remove chips from the cutting area and allow cooling fluids to enter. If heat is not reduced effectively, the tool’s cutting edges will dull and additional material buildup can occur. The number of flutes can range from two to eight. Two-flute designs offer the most efficient chip removal, but more flutes provide a smoother finish. The shank is the end of the tool held in place by a tool holder or machine. Center-cutting end mills can create three-dimensional shapes and profiles, and make plunge cuts similar to a drill bit. Non-center-cutting end mills are for applications such as peripheral milling and finishing, but cannot make plunge cuts.

Niagara Cutter has been designing and manufacturing precision cutting tools since 1954. Specializing in end mills, cutting mills, and saws, the company is based in New York and manufactures its tools at facilities in Pennsylvania and Massachusetts. This allows the company control over production, from substrate to coating, which is essential for customers in a variety of industries, especially aerospace and automotive.
