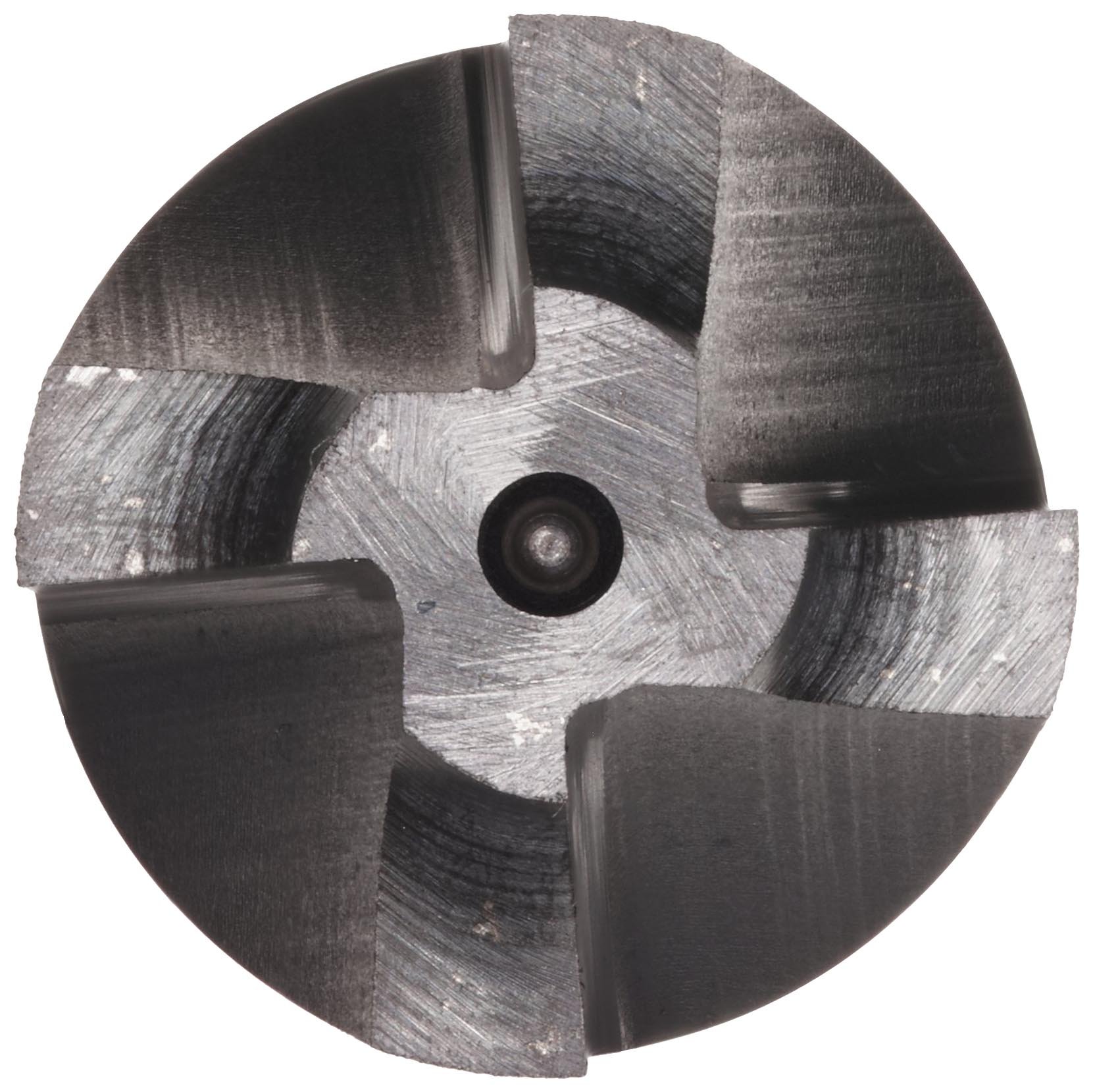

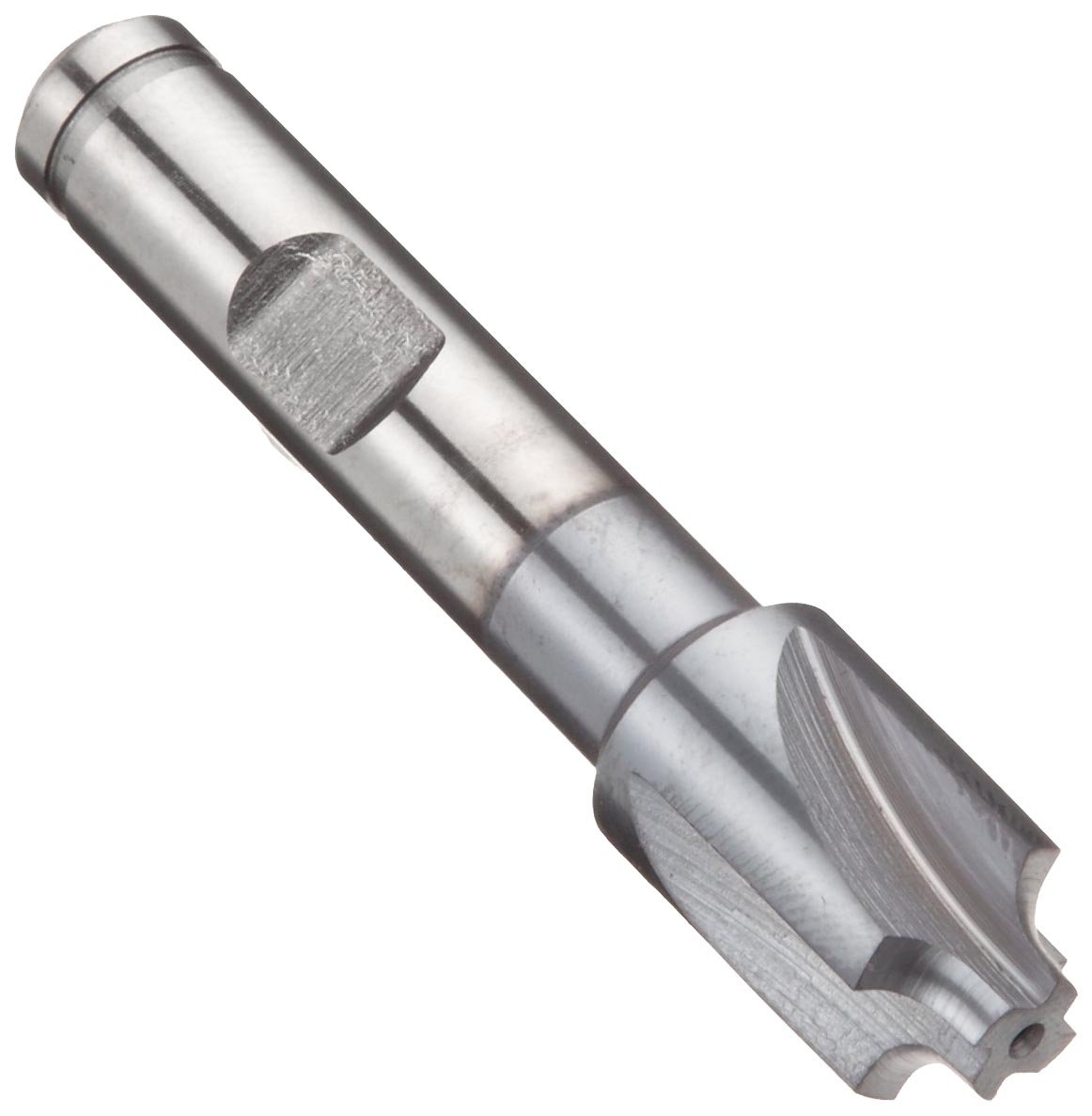

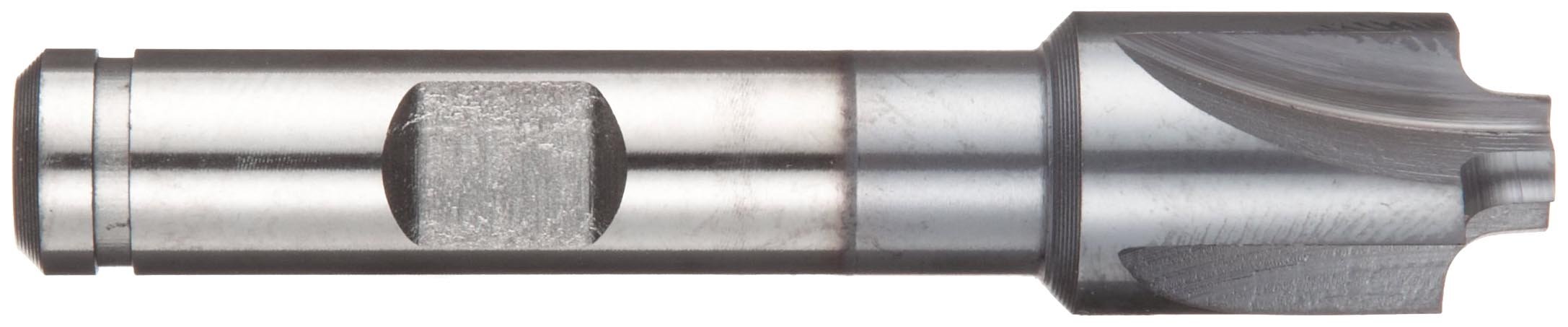

Niagara Cutter CRCO126 Cobalt Steel End Mill, General Purpose, TiCN Coated, 4 Flutes,Corner-Rounding End

Be the first to review this item

ASIN B004CM06GK

Specifications for this item
Finish Types
TiCN
Material Type
Cobalt Steel
Part Number
NiagaraCRCO126
Number of Flutes
4
UNSPSC Code
27112803
Brand Name
Niagara Cutter

This item is no longer available

This item is NOT eligible for "Free Standard Shipping on orders over $50.00" promotion. (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Corner rounding end mills are designed to take the edge off sharp external corners
  • Four straight flutes produce a fine finish
  • Titanium carbon nitride (TiCN) coating lubricates the end mill for high-temperature stability and offers better abrasion resistance than TiN coating
  • Cobalt steel resists abrasion and high cutting temperatures, and has higher feed rates than high-speed steel
  • The non-center-cutting design is for applications such as peripheral milling and finishing

Product Description

The Niagara Cutter CRCO126 TiCN-coated cobalt steel corner rounding end mill has four straight flutes and a non-center-cutting design for creating rounded exterior corners on a wide range of materials. Corner rounding end mills have a concave, curved indent on the cutting end to create a more rounded or less rounded corner, depending on the radius selected. Four straight flutes produce a fine finish.

The TiCN coating lubricates the end mill for high-temperature stability, and offers increased hardness and greater abrasion resistance than uncoated or TiN-coated tools. The cobalt steel substrate can be run at faster speeds and stays sharp longer than high-speed steel tools, while offering resistance to heat and abrasion. The non-center-cutting design is for applications such as peripheral milling and finishing. Cutting diameter tolerance is +0.002" to -0.000". Radius tolerance is +0.001” to -0.001”. The tool has a Weldon shank.

End mills are designed to remove material and create multi-dimensional shapes and profiles. They have cutting edges along the outside diameter and flutes that remove chips from the cutting area and allow cooling fluids to enter. If heat is not reduced effectively, the tool’s cutting edges will dull and additional material buildup can occur. The number of flutes can range from two to eight. Two-flute designs offer the most efficient chip removal, but more flutes provide a smoother finish. The shank is the end of the tool held in place by a tool holder or machine. Center-cutting end mills can create three-dimensional shapes and profiles, and make plunge cuts similar to a drill bit. Non-center-cutting end mills are for applications such as peripheral milling and finishing, but cannot make plunge cuts.

Niagara Cutter has been designing and manufacturing precision cutting tools since 1954. Specializing in end mills, cutting mills, and saws, the company is based in New York and manufactures its tools at facilities in Pennsylvania and Massachusetts. This allows the company control over production, from substrate to coating, which is essential for customers in a variety of industries, especially aerospace and automotive.
