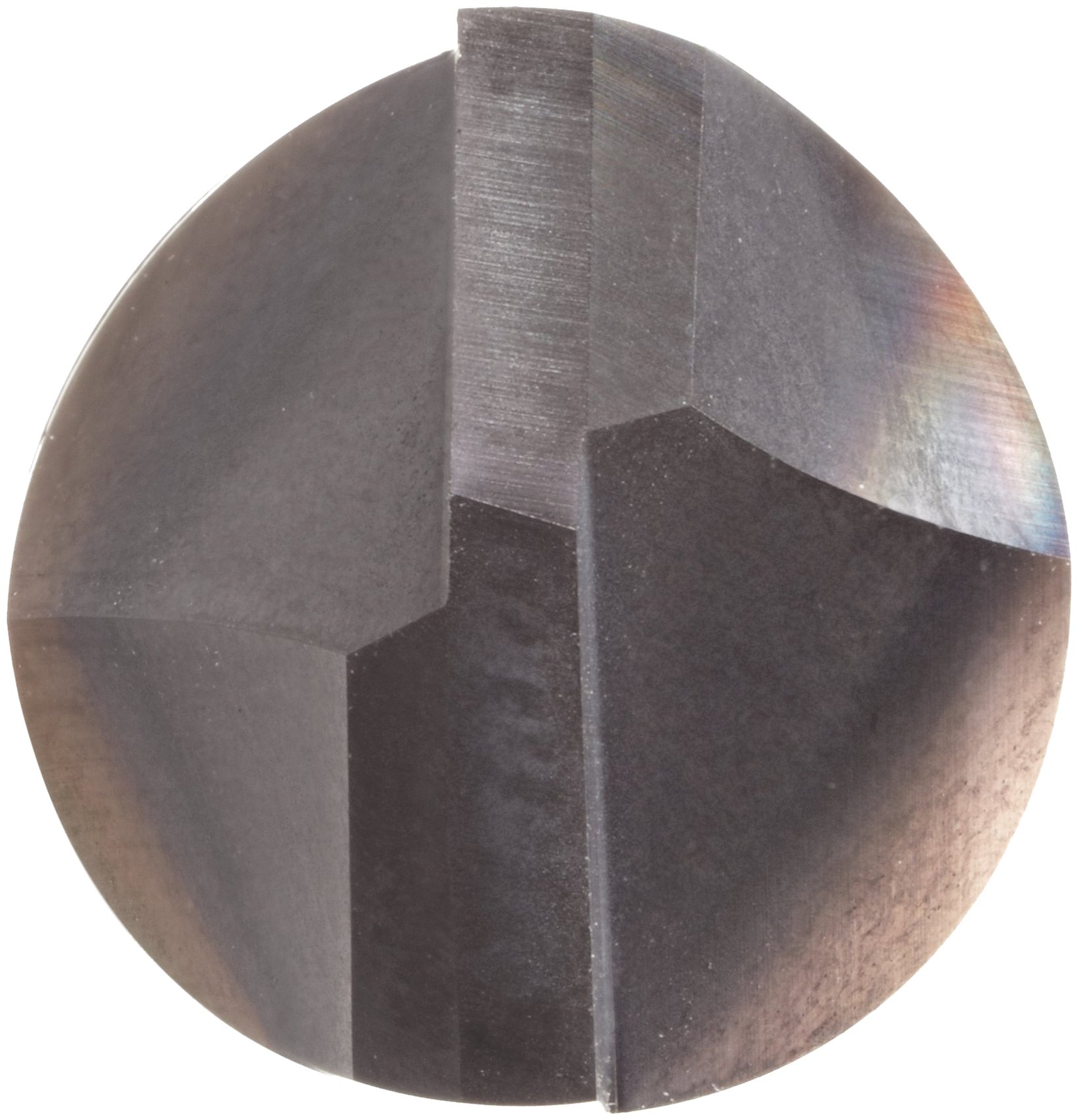

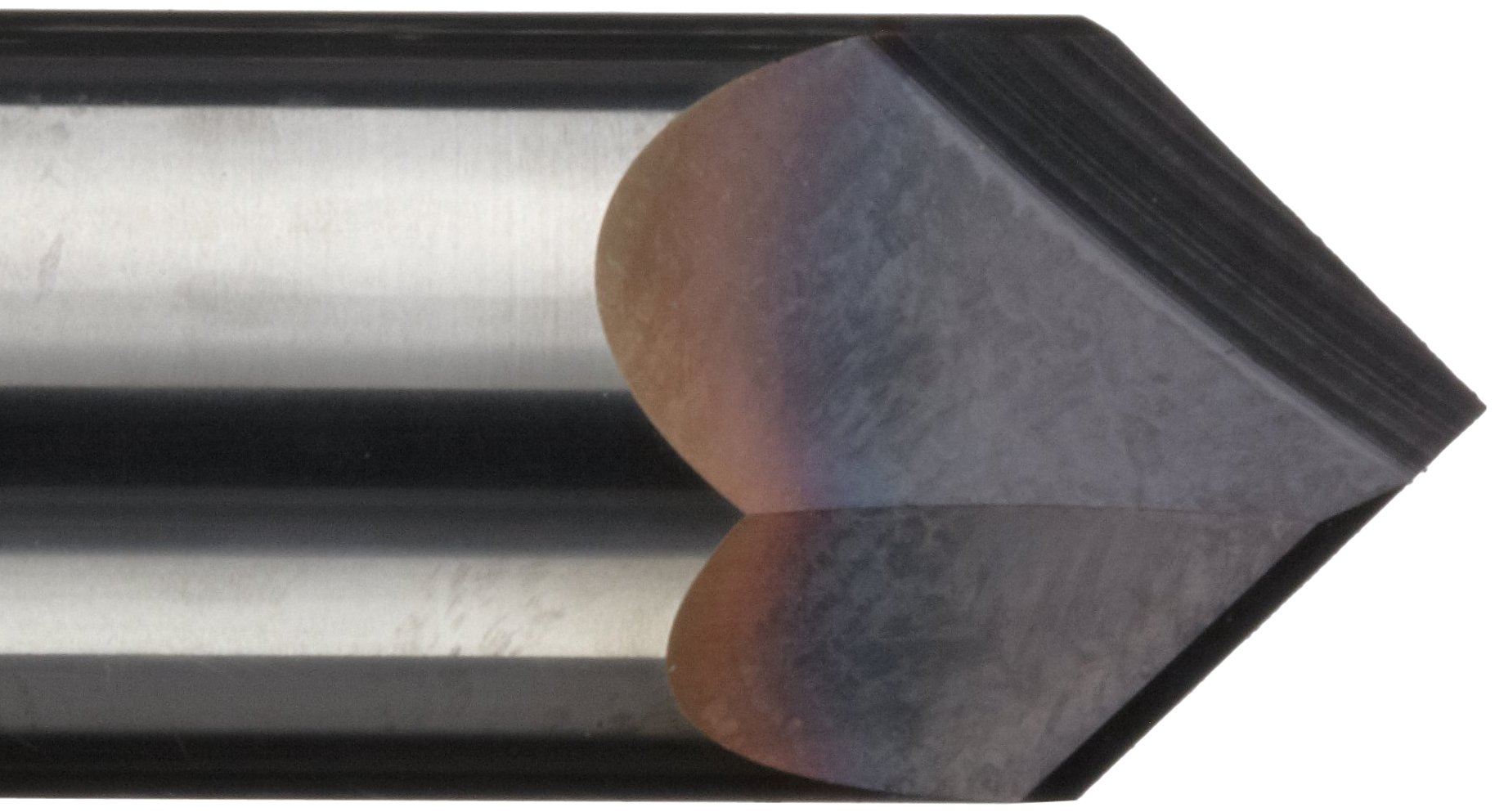

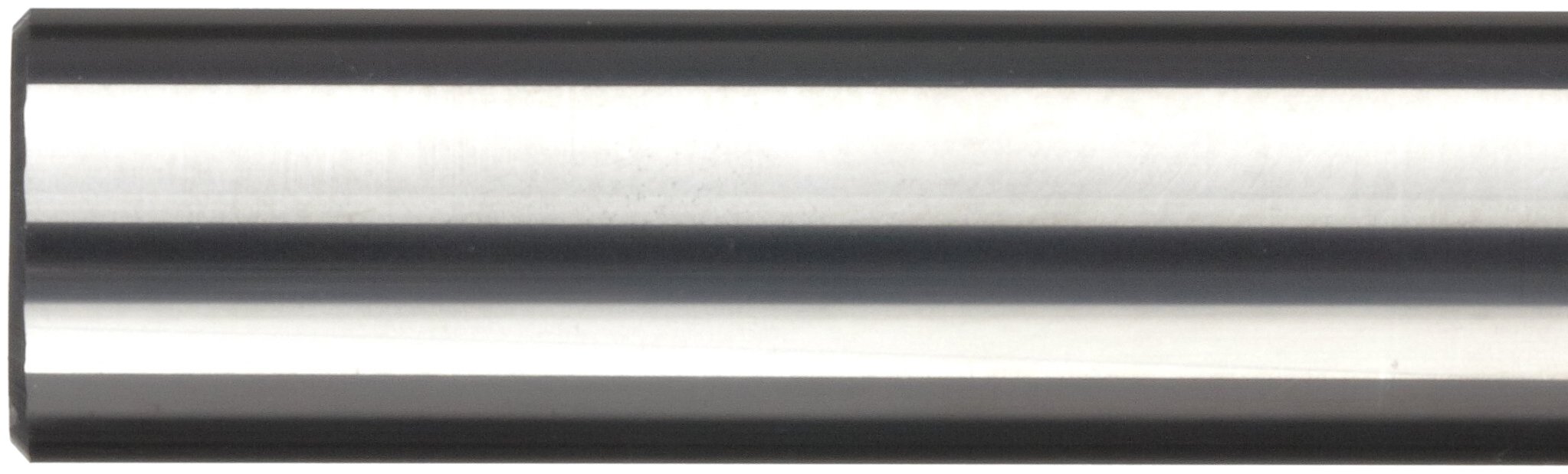

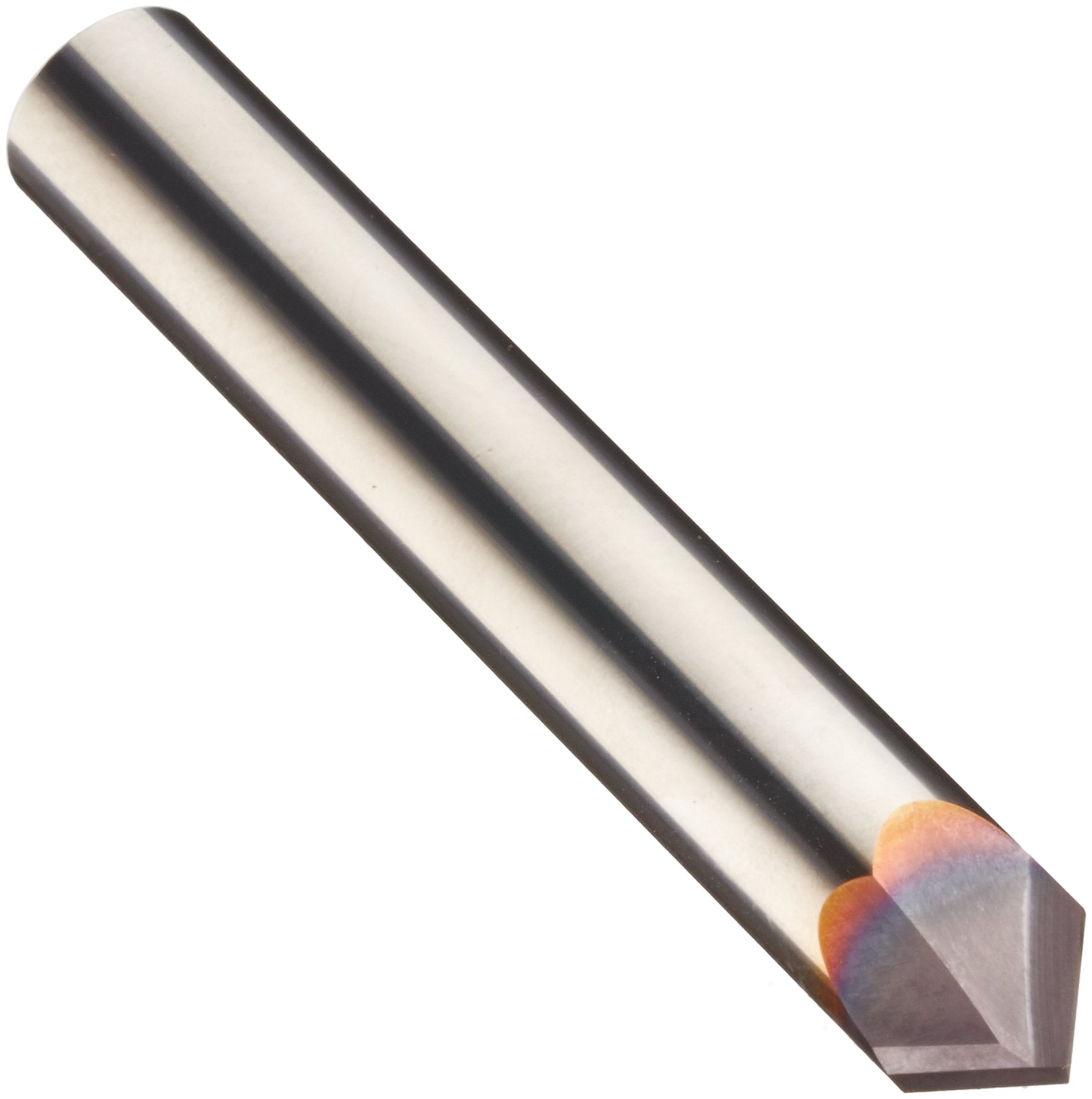

Niagara Cutter CM290 Carbide Chamfering Mill, TiAlN Coated, 2 Flutes, 90 Degree Chamfer End, 1/4" Cut Cutting Length, 1/2" Diameter

Be the first to review this item

ASIN B000U5PE10

Specifications for this item
Finish Types
TiAlN
Flute Length
1/4  inches
Part Number
76595
Shank Width
1/2  inches
Brand Name
Niagara Cutter
Cutting Length
1/4  inches
Cut Type
General Purpose
Number of Flutes
2
Cutting Direction
Right Hand
Number of Items
1
End Cut Type
Non-Center Cutting
Material Type
Carbide
Outside Diameter
0.5000  inches
UPC
698036765958
Size Name
1/2 in
EAN
0698036765958
Manufacturer Series Number
CM290
Shank Type
Round
UNSPSC Code
27112800
Cutting Diameter
1/2  inches
Overall Length
3  inches
System of Measurement
Inch

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Nov 25? Order in-stock items in the next 1 day 7 hrs 22 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • 2 Flute design makes these ideal for plung cutting when chip removal is not a problem
  • Solid carbide tools offer long tool life and faster cutting speeds than other substrates, but are more brittle and must be used with rigid toolholding systems.
  • Features a fine-pitch rougher with chamfer
  • Titanium Aluminum Nitride (TiAlN), combines high thermal stability with excellent hardness for abrasion resistance and a low coefficient of friction, for lubricity
  • Center Cutting End Mills are designed with "End Teeth" making these ideal for Slotting and Cavity applications

Package Details

Shipping Weight: 0.25 pounds
Package Size: 3.3 x 0.7 x 0.7 inches

Product Description

Chamfering work pieces just got easier with Niagara Cutters new Chamfer Mills.These new mills are manufactured with the same extra-fine grain Carbide that is used in our ELITE Series of end mills. They also come standard with our exclusive Niagara Microshield TiAlN coating for higher productivity and the longest tool life. Niagara Cutter's carbide material is classified within the C1 to C4 range, and has an excellent combination of strength and toughness. Using raw materials with unique properties and high purity ensure Niagara Cutter's consistent high quality. Specifically designed for machining Aluminum, Stainless Steel, Titanium and Exotic Alloy Materials. Niagara Cutter is a leader in cutting tool technology and is proud to have their products made in the USA.
