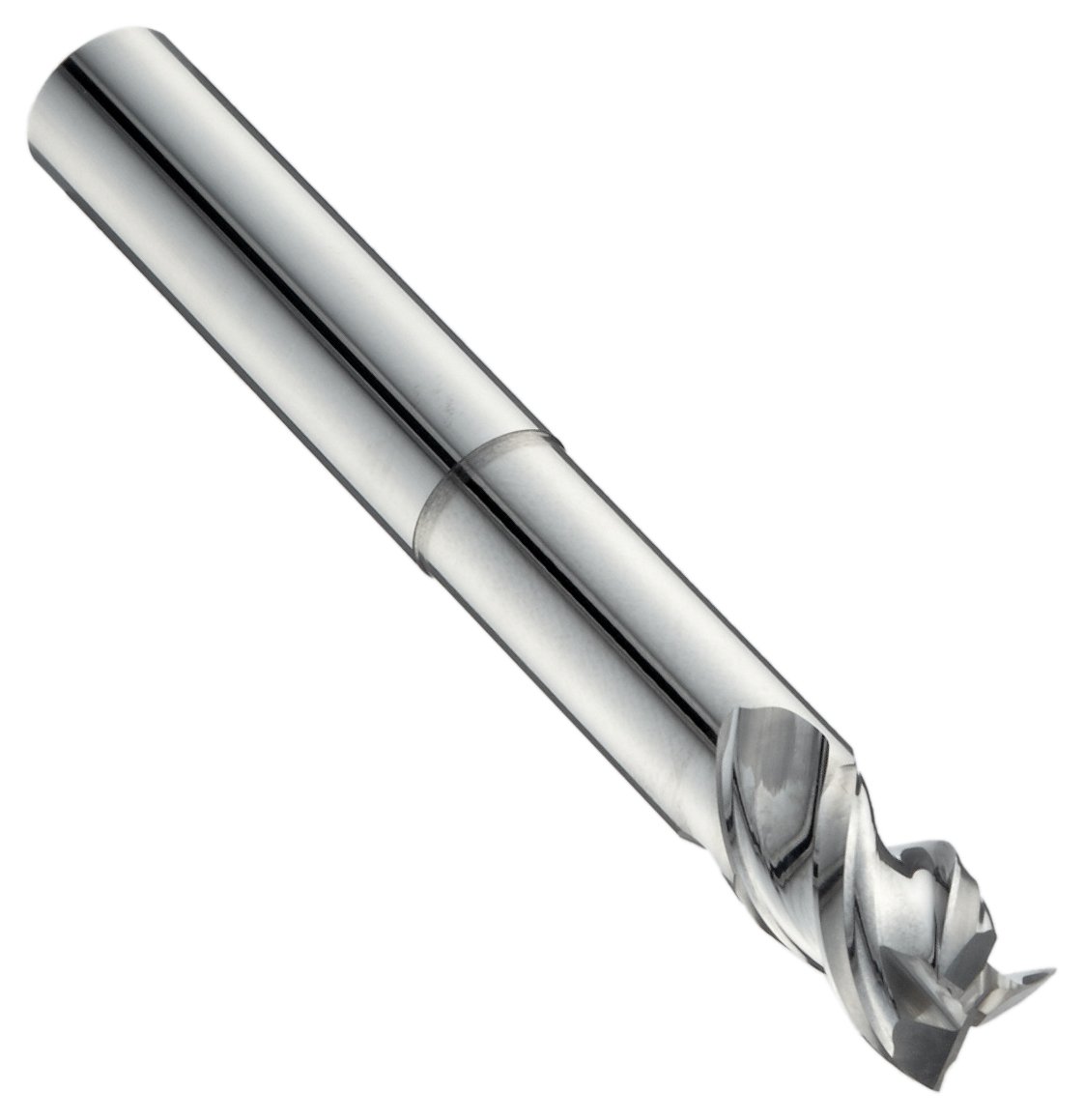

Niagara Cutter AN345 Carbide End Mill for Aluminum, Extended Reach (Neck Style), Uncoated (Bright), 3 Flutes, Square End

Be the first to review this item

ASIN B004CM00ZW

Specifications for this item
Compatible Material
Aluminum
Finish Types
Uncoated (Bright)
Material Type
Carbide
Part Number
NiagaraAN345
Number of Flutes
3
Brand Name
Niagara Cutter

This item is no longer available

This item is NOT eligible for "Free Standard Shipping on orders over $50.00" promotion. (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

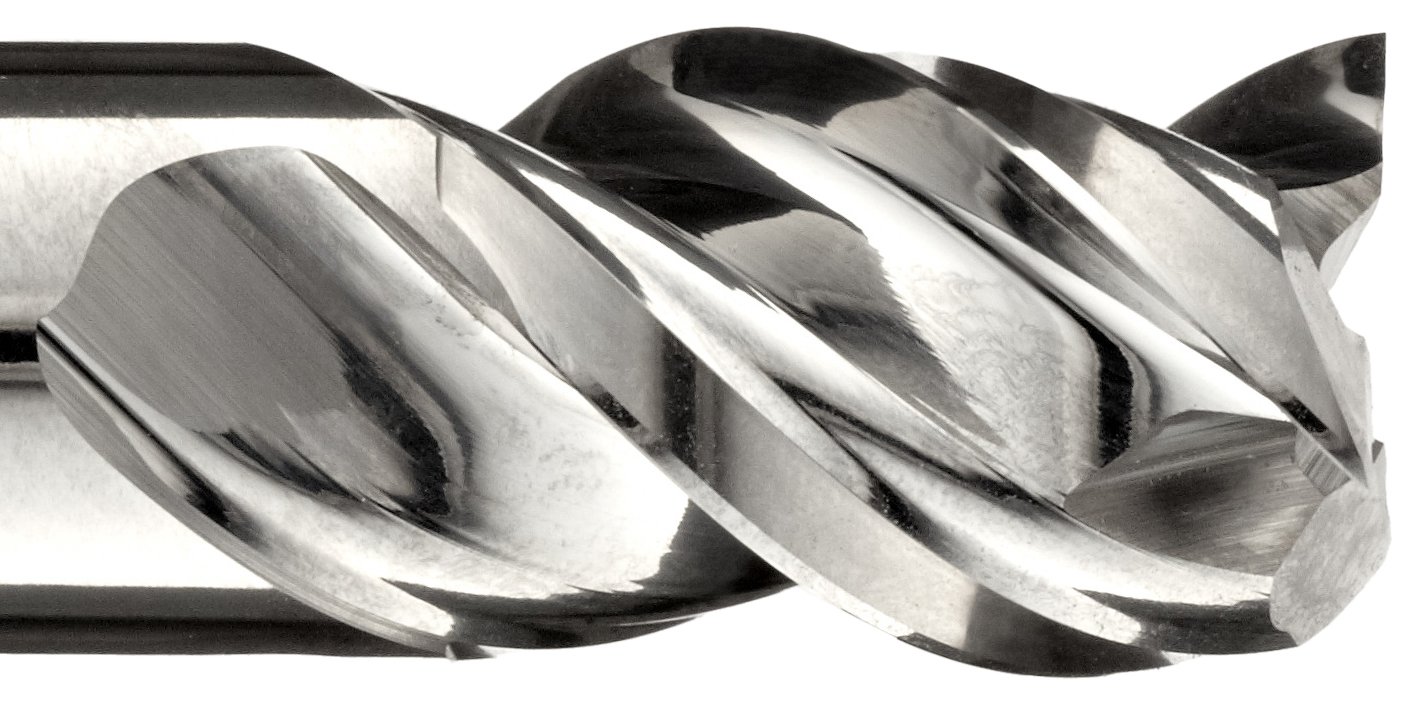

  • 45-degree helix provides the efficient cutting action and chip evacuation required to machine aluminum and other nonferrous material

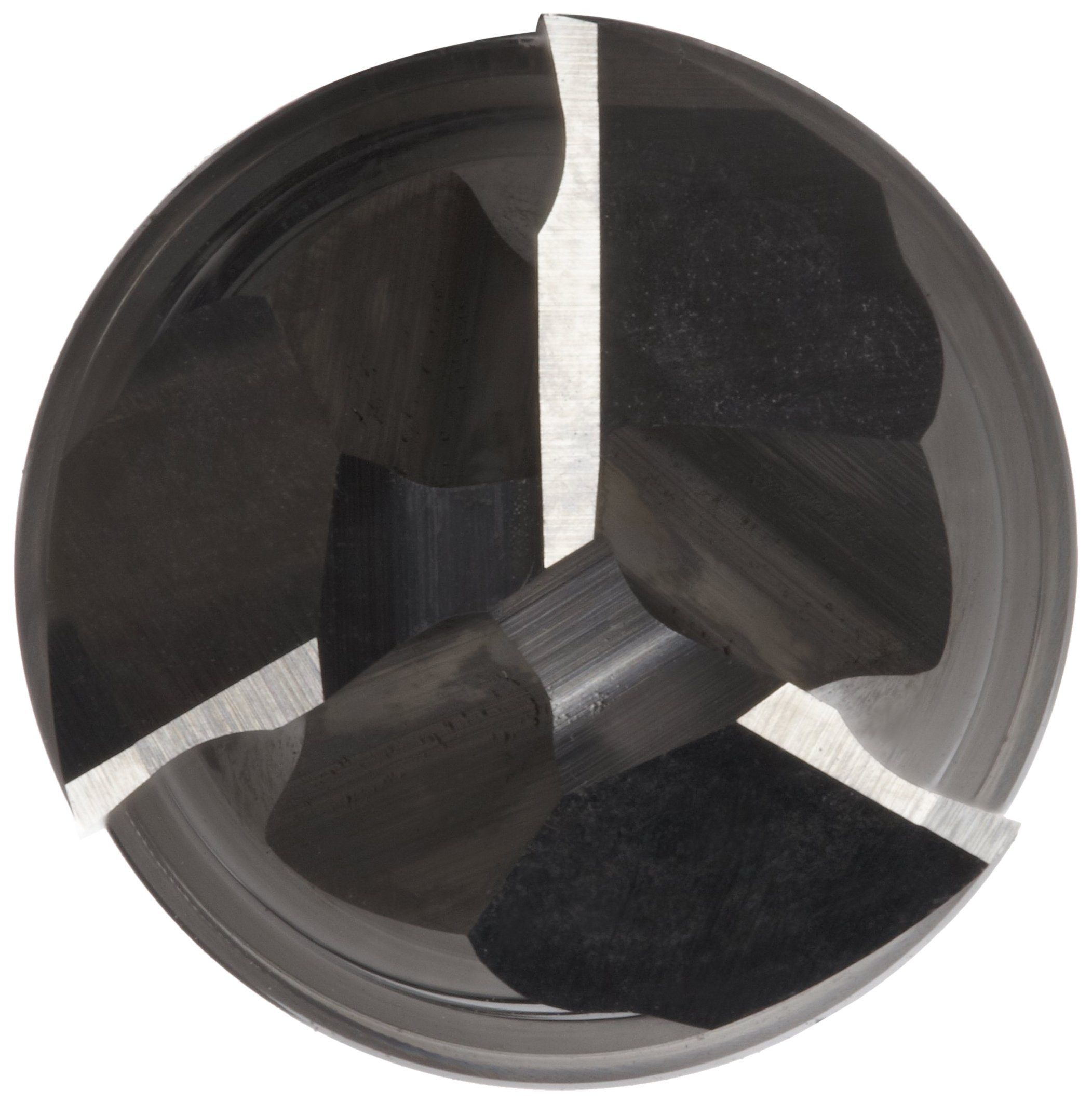

  • Three flutes provide better chip-carrying capacity than four flutes and a finer finish than two, reducing the need for a second finishing cut in some applications

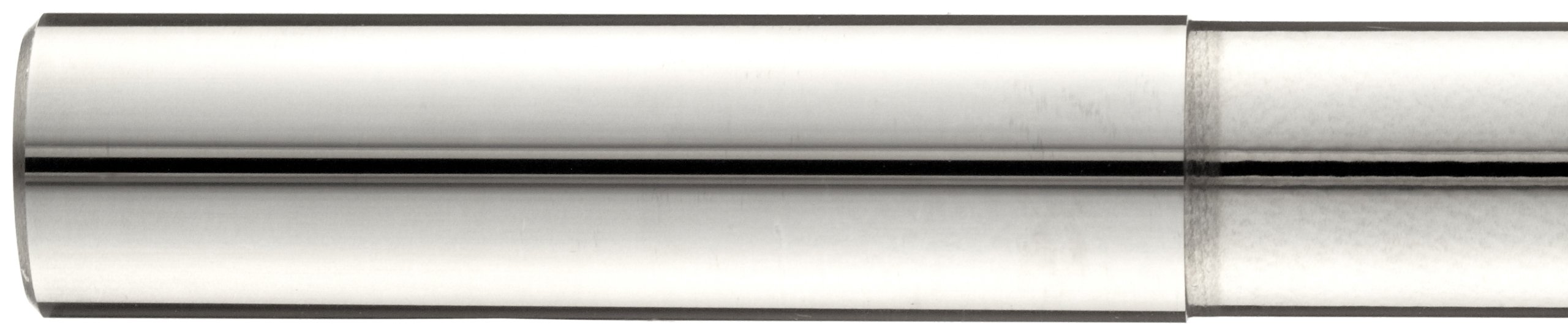

  • Extended-reach neck style provides access to recessed areas of the workpiece
  • Carbide can run at higher speeds than high-speed or cobalt steel, resisting wear and high cutting temperatures
  • Square nose end mills (also called square end) create sharp, unrounded cuts

Product Description

Niagara Cutter’s AN345 series uncoated (bright) carbide square nose end mill has three flutes, a 45-degree helix angle, and an extended-reach neck style for high-performance cuts on aluminum and other nonferrous materials where tool reach is a problem. The 45-degree helix provides increased cutting action and chip evacuation compared to end mills with lower helix angles, as it moves excess material quickly up the spiral and away from the workpiece. The end mill’s three flutes provide better chip-carrying capacity than four flutes and a finer finish than two. They efficiently remove excess material from the cutting area and provide a third cutting edge to create an improved finish that may eliminate the need for a second finishing cut in some applications. The extended-reach neck style provides greater access to recessed areas of the workpiece than tools with a standard neck style. The center-cutting design has cutting teeth at the end of the tool, so it can be fed straight into the workpiece like a drill bit. The tool’s square end has straight cutting edges that create sharp, unrounded cuts. The rounded area behind the cutting edge, called the cylindrical land, minimizes tool vibration when machining nonferrous materials. This end mill is best suited for slotting, pocketing, and long-reach peripheral milling applications.

The carbide substrate is harder than high-speed or cobalt steel, making it more wear resistant at high speeds and providing longer tool life; the tool has no coating or surface treatment. It has an eccentric primary relief feature that provides better support behind the cutting edge than a flat relief, reducing tooth breakage in deep cuts. Cutting diameter tolerance is +0.000" to -0.002". The round shank accommodates a range of tool holders.

End mills are designed to remove material and create multi-dimensional shapes and profiles. They have cutting edges along the outside diameter and flutes that remove chips from the cutting area and allow cooling fluids to enter. If heat is not reduced effectively, the tool’s cutting edges will dull and additional material buildup can occur. The number of flutes can range from two to eight. Two-flute designs offer the most efficient chip removal, but more flutes provide a smoother finish. The shank is the end of the tool held in place by a tool holder or machine. Center-cutting end mills can create three-dimensional shapes and profiles, and make plunge cuts similar to a drill bit. Non-center-cutting end mills are for applications such as peripheral milling and finishing, but cannot make plunge cuts.

Niagara Cutter has been designing and manufacturing precision cutting tools since 1954. Specializing in end mills, cutting mills, and saws, the company is based in New York and manufactures its tools at facilities in Pennsylvania and Massachusetts. This allows the company control over production, from substrate to coating, which is essential for customers in a variety of industries, especially aerospace and automotive.
