Niagara Cutter A245R Carbide Corner Radius End Mills, Inch, TiCN Finish, Roughing and Finishing Cut, 45 Degree Helix, For Use With Aluminum, Non-Ferrous Metals
Be the first to review this item
Product Specifications
- Brand Name
- Niagara Cutter
- Cut Type
- Roughing and Finishing
- Cutting Angle
- 45 Degrees
- Cutting Direction
- Right Hand
- End Cut Type
- Center Cutting
- Finish Types
- TiCN
- Manufacturer Series Number
- A245R
- Material Type
- Carbide
- Shank Type
- Round
- System of Measurement
- Inch
Free Standard Shipping! on orders over $50.00.
(limited-time offer, certain restrictions apply)
(Details)
Key Features
- Corner radius end mills have cutting edges with rounded corners to reduce chipping and provide longer tool life
- 45-degree helix provides the efficient cutting action and chip evacuation required to machine aluminum and other nonferrous materials
- Wiper flat on cutting edges for a smoother finish than conventional end mills
- Two flutes offer better chip-carrying capacity than end mills with more flutes, enhancing the tool's ability to remove material
- Titanium carbon nitride (TiCN) coating lubricates the end mill for high-temperature stability and offers better abrasion resistance than uncoated tools
Product Description

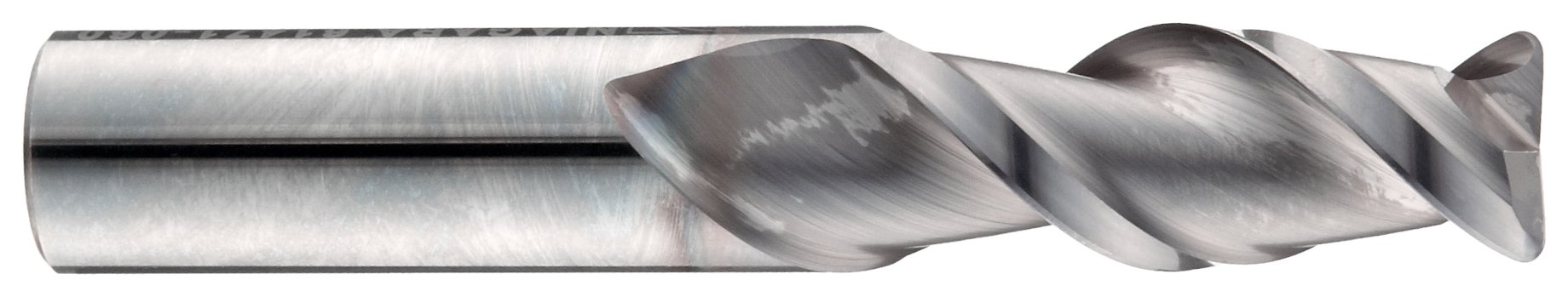

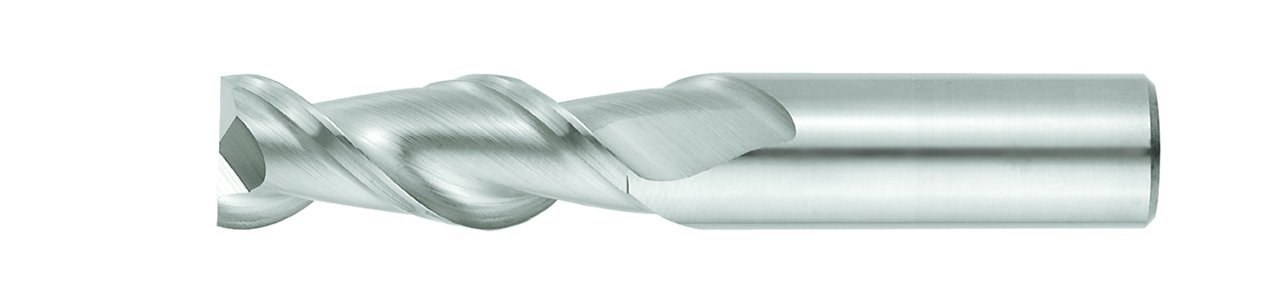

The Niagara Cutter A245R TiCN-coated carbide corner radius end mill has two flutes, a 45-degree helix angle, a wiper flat, and cutting edges with rounded corners for high-performance cuts on aluminum and other nonferrous materials. Corner radius on cutting edges reduces chipping and extends tool life. The 45-degree helix provides increased cutting action and chip evacuation compared to end mills with lower helix angles, as it moves excess material quickly up the spiral and away from the workpiece. A wiper flat on the cutting edges provides a smoother finish to the workpiece than conventional end mills. The two flutes have better chip-carrying capacity than end mills with more flutes while offering additional support when the tool goes deep into the material in applications with a high depth of cut. The rounded area behind the cutting edge, called the cylindrical land, minimizes tool vibration when machining nonferrous materials.

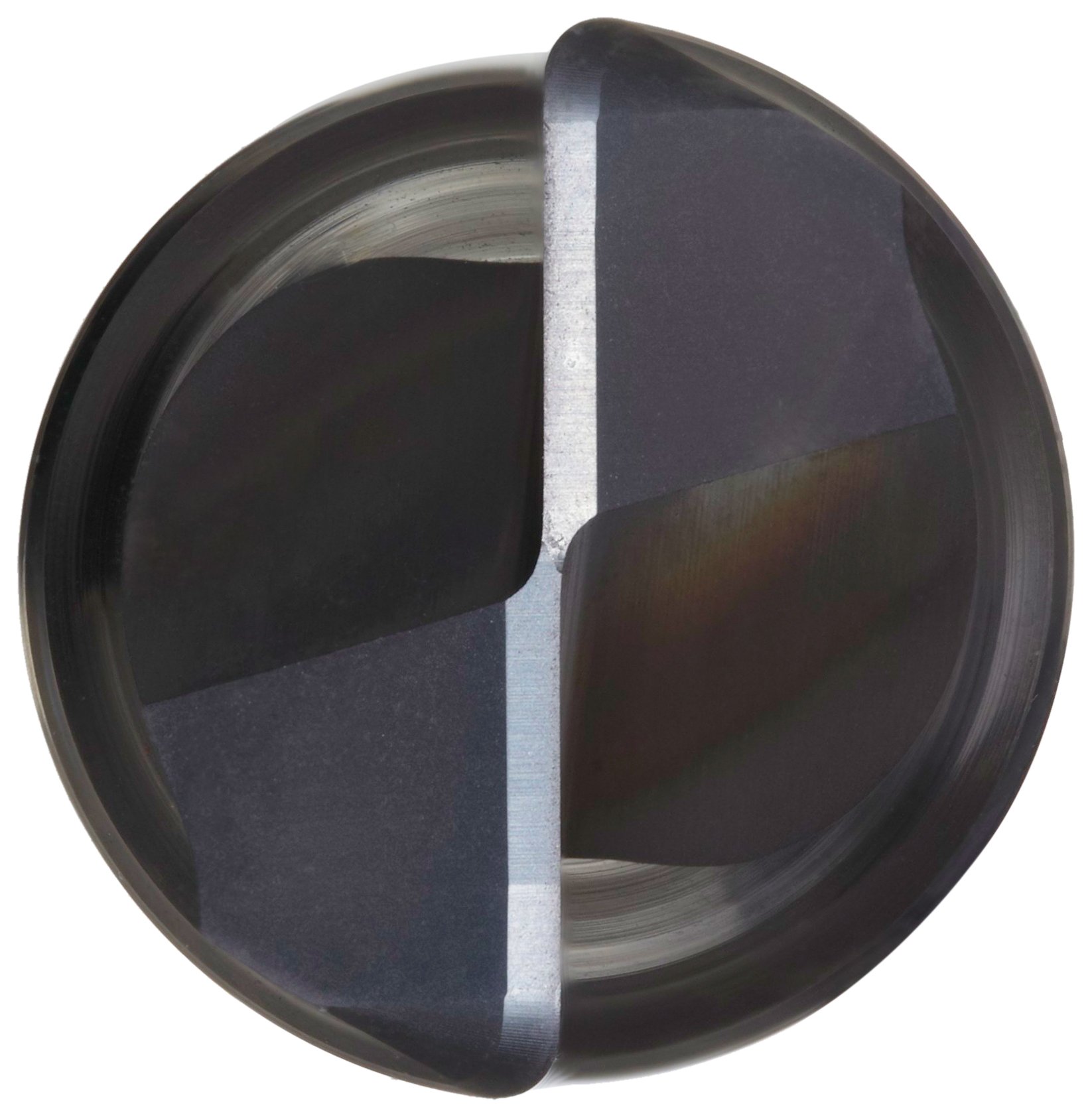

The TiCN coating lubricates the end mill for high-temperature stability, and offers increased hardness and greater abrasion resistance than uncoated tools. The carbide substrate is harder than high-speed or cobalt steel, making it more wear resistant at high speeds and providing longer tool life. The center-cutting design has cutting teeth at the end of the tool, so it can be fed straight into the workpiece like a drill bit. The tool has an eccentric primary relief feature that provides better support behind the cutting edge than a flat relief, reducing tooth breakage in deep cuts. Cutting diameter tolerance is +0.000" to -0.002". The round shank accommodates a range of tool holders.
End mills are designed to remove material and create multi-dimensional shapes and profiles. They have cutting edges along the outside diameter and flutes that remove chips from the cutting area and allow cooling fluids to enter. If heat is not reduced effectively, the tool’s cutting edges will dull and additional material buildup can occur. The number of flutes can range from two to eight. Two-flute designs offer the most efficient chip removal, but more flutes provide a smoother finish. The shank is the end of the tool held in place by a tool holder or machine. Center-cutting end mills can create three-dimensional shapes and profiles, and make plunge cuts similar to a drill bit. Non-center-cutting end mills are for applications such as peripheral milling and finishing, but cannot make plunge cuts.
Niagara Cutter has been designing and manufacturing precision cutting tools since 1954. Specializing in end mills, cutting mills, and saws, the company is based in New York and manufactures its tools at facilities in Pennsylvania and Massachusetts. This allows the company control over production, from substrate to coating, which is essential for customers in a variety of industries, especially aerospace and automotive.
