Music Wire Extension Spring, Steel, Inch, 0.36" OD, 0.049" Wire Size (Pack of 10)

Be the first to review this item

Product Specifications
Wire Size
0.049  inches
Material Type
Steel
UNSPSC Code
31161907
Inside Diameter
0.36  inches
Brand Name
Small Parts
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Oct 23? Order in-stock items in the next 14 hrs 37 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-17 of 17
Free Length Extended Length Load Capacity Spring Rate ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All
Currently showing 1-17 of 17
1" 1.33" 13.2 lbs 36 lbs/in B005V4OZL0 yes $16.24 Buy Options
1.12" 1.56" 13.2 lbs 27.3 lbs/in B005V4P0LO yes $16.09 Buy Options
1.25" 1.81" 13.2 lbs 21.6 lbs/in B005V4YUO2 yes $16.13 Buy Options
1.37" 2.03" 13.2 lbs 18.1 lbs/in B005V4P10O yes $16.16 Buy Options
1.5" 2.28" 13.2 lbs 15.4 lbs/in B005V4YVHI yes $6.11 Buy Options
1.75" 2.75" 13.2 lbs 12 lbs/in B005V4P3E8 yes $16.19 Buy Options
2" 3.23" 13.2 lbs 9.8 lbs/in B005V4P5ZK yes $16.24 Buy Options
2.25" 3.7" 13.2 lbs 8.3 lbs/in B005V4YXJE yes $16.18 Buy Options
2.5" 4.17" 13.2 lbs 7.2 lbs/in B005V4YZU6 yes $15.57 Buy Options
2.75" 4.65" 13.2 lbs 6.4 lbs/in B005V4P6KO yes $16.24 Buy Options
3" 5.12" 13.2 lbs 5.7 lbs/in B005V4P72Q yes $16.24 Buy Options
3.5" 6.07" 13.2 lbs 4.7 lbs/in B005V4P7MQ yes $6.12 Buy Options
4" 7.01" 13.2 lbs 4 lbs/in B005V4Z32K yes $15.91 Buy Options
4.5" 7.96" 13.2 lbs 3.5 lbs/in B005V5EWEE yes $16.16 Buy Options
5" 8.9" 13.2 lbs 3.1 lbs/in B005V4Z4E2 yes $18.55 Buy Options
5.5" 9.83" 13.2 lbs 2.8 lbs/in B005V51AKI yes $18.56 Buy Options
6" 10.77" 13.2 lbs 2.5 lbs/in B005V4Z5FU yes $18.56 Buy Options

Key Features

  • Highly magnetic steel music wire per ASTM A228 for greater strength than stainless steel
  • Full twist loop ends for secure fastening
  • Load capacity of 13.2 pounds
  • Maximum operating temperature of 250 degrees F (121 degrees C)
  • Dry to the touch oil finish for added corrosion resistance

Product Description

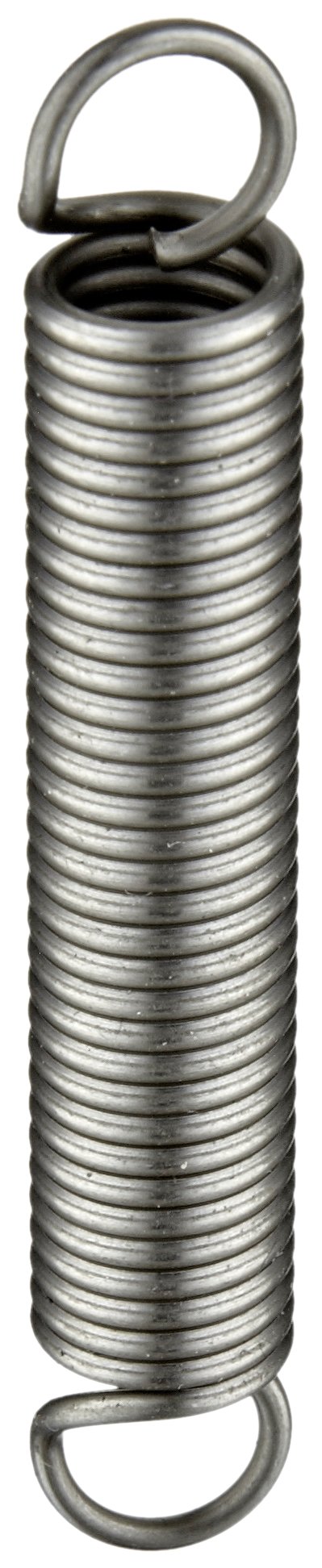

This extension spring is made of steel music wire and has an outside diameter (OD) of 0.36 inch and a wire size of 0.049 inch. It is made of highly magnetic steel music wire for greater strength than stainless steel. The spring ends are full twist loops for secure fastening. This spring has a load capacity of 13.2 pounds, and a maximum operating temperature of 250 degrees F (121 degrees C). It has an oil finish that is dry to the touch for added corrosion resistance. This music wire extension spring meets American Society for Testing and Materials (ASTM) standard A228 for quality assurance, and it is good for non-corrosive environment applications.

Extension springs are open-coil spiral (helical) springs that offer resistance to a tension force, or load, applied along the axis of the spring. When a load is placed on an extension spring, making it longer, the spring pulls back against the load to return to its original length. These springs are used in a variety of applications, including automotive engines, major appliances, medical devices, electronics, and sensitive measuring instruments.
