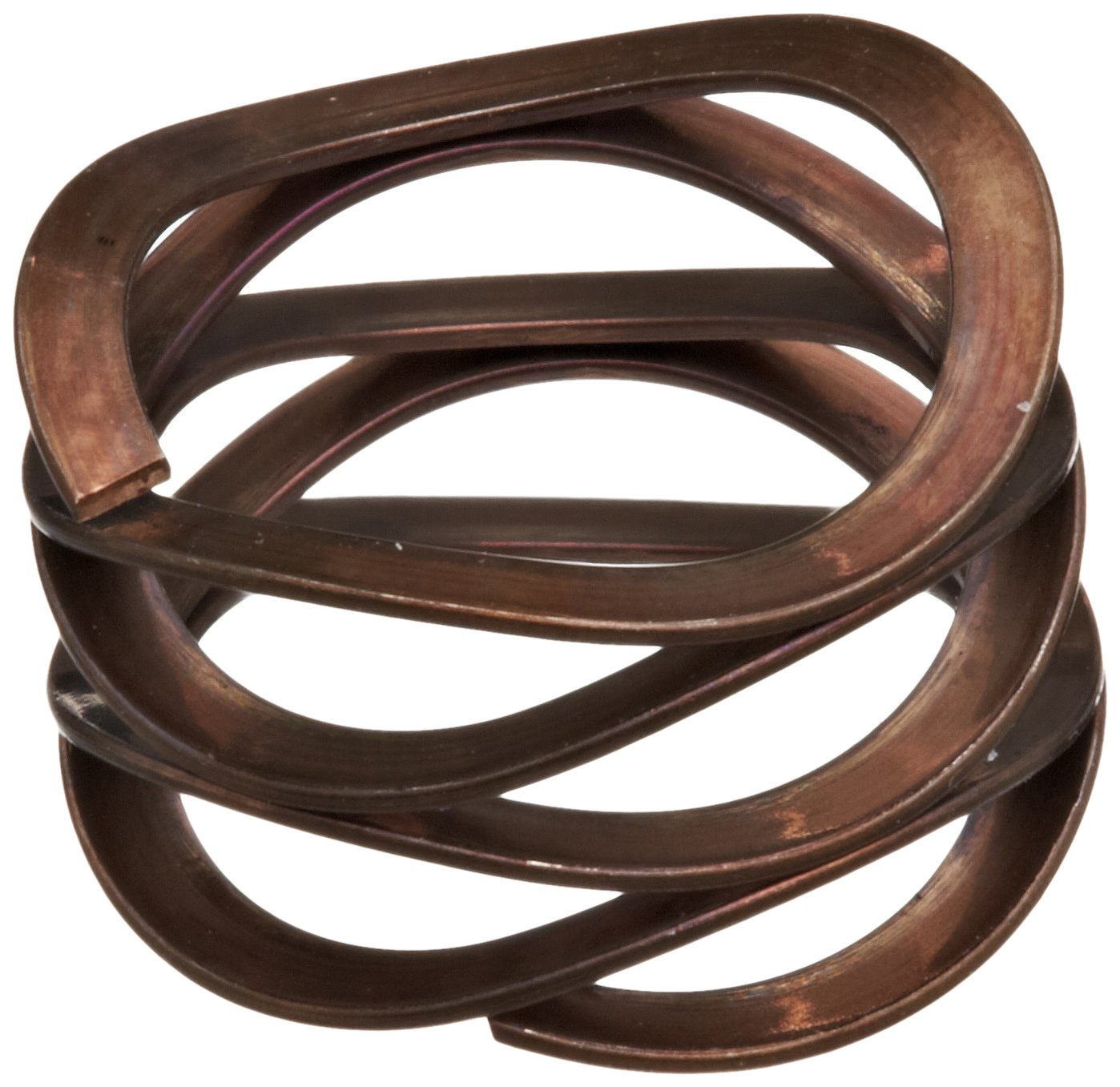

Multiwave Washers, Stainless Steel, Inch, 0.281" ID, 0.437" OD, 0.008" Thick, 18lbs/in Spring Rate, 4lbs Load Capacity (Pack of 10)
Be the first to review this item
ASIN B0085ZOJEK
Specifications for this item
- Brand Name
- Small Parts
- Inside Diameter
- 0.281 inches
- Load Capacity
- 4 pounds
- Material Type
- Stainless Steel
- Outside Diameter
- 0.437 inches
- Part Number
- MW0437-0385-04S
- Pkg Qty
- 10
- Spring Rate
- 18 Inch Pounds
This item ships for FREE with 2-Day Shipping on orders over $50. (Details)
Want it delivered on Friday, May 24? Order in-stock items in the next 11 hours 7 minutes and choose One-Day Shipping at checkout.
Key Features
- Stainless Steel Commercial Type 17-7 PH
- Slightly Magnetic
- Maximum Operating Temperature of 650 degrees F (340 degrees C)
Package Details
Shipping Weight:
0.05 pounds
Package Size:
7.3 x 5.1 x 0.5 inches
Product Description
MultiWave springs are made of a single filament of round-edged, pre-tempered flat wire from a continuous coil. This results in uniform diameters and wave heights. They replace conventional round wire springs when space is critical, typically occupying only 1/3 to ½ of the compressed height space, while providing more deflection with the same load specifications. MultiWave springs should be used for all applications requiring tight load deflection specifications where axial space is critical.
