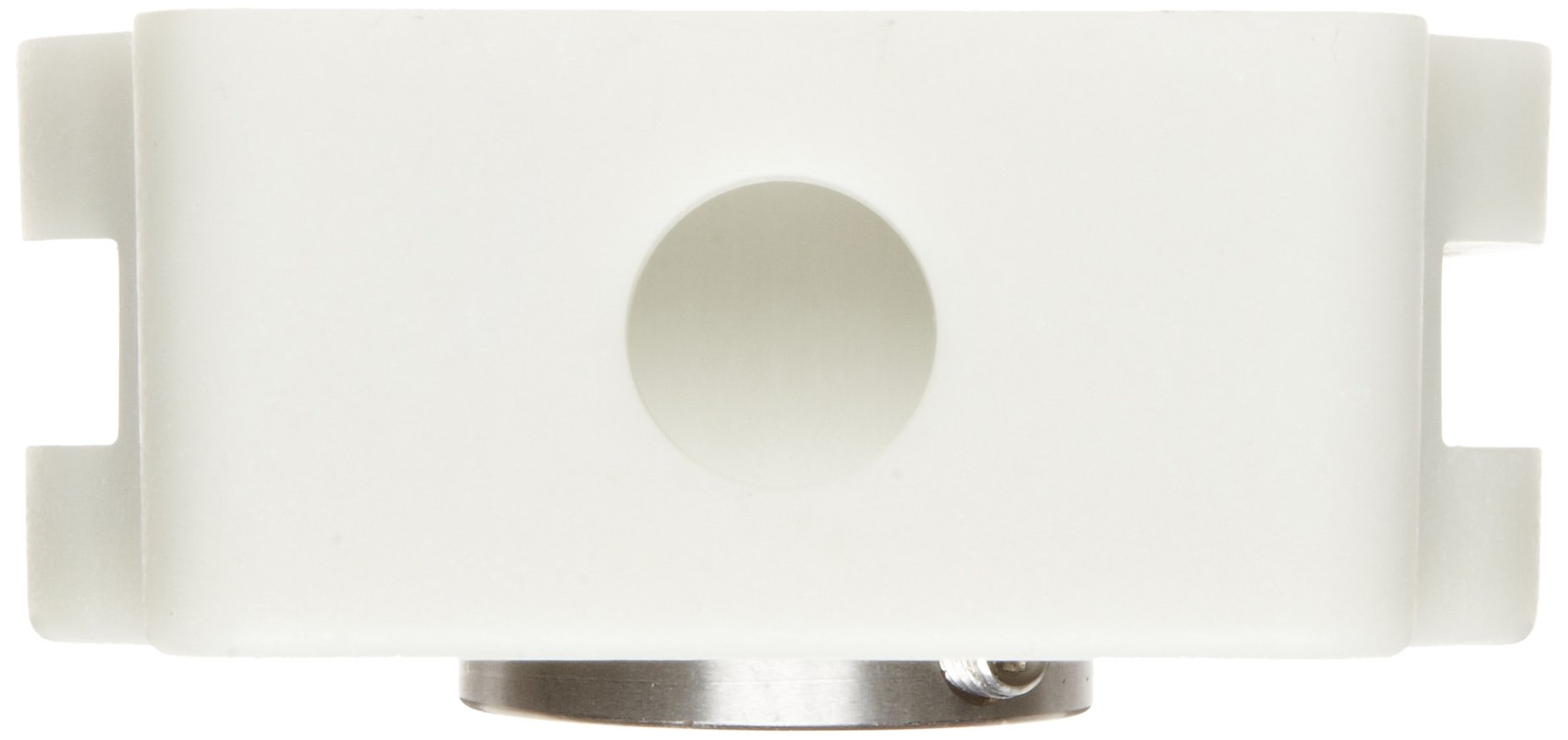

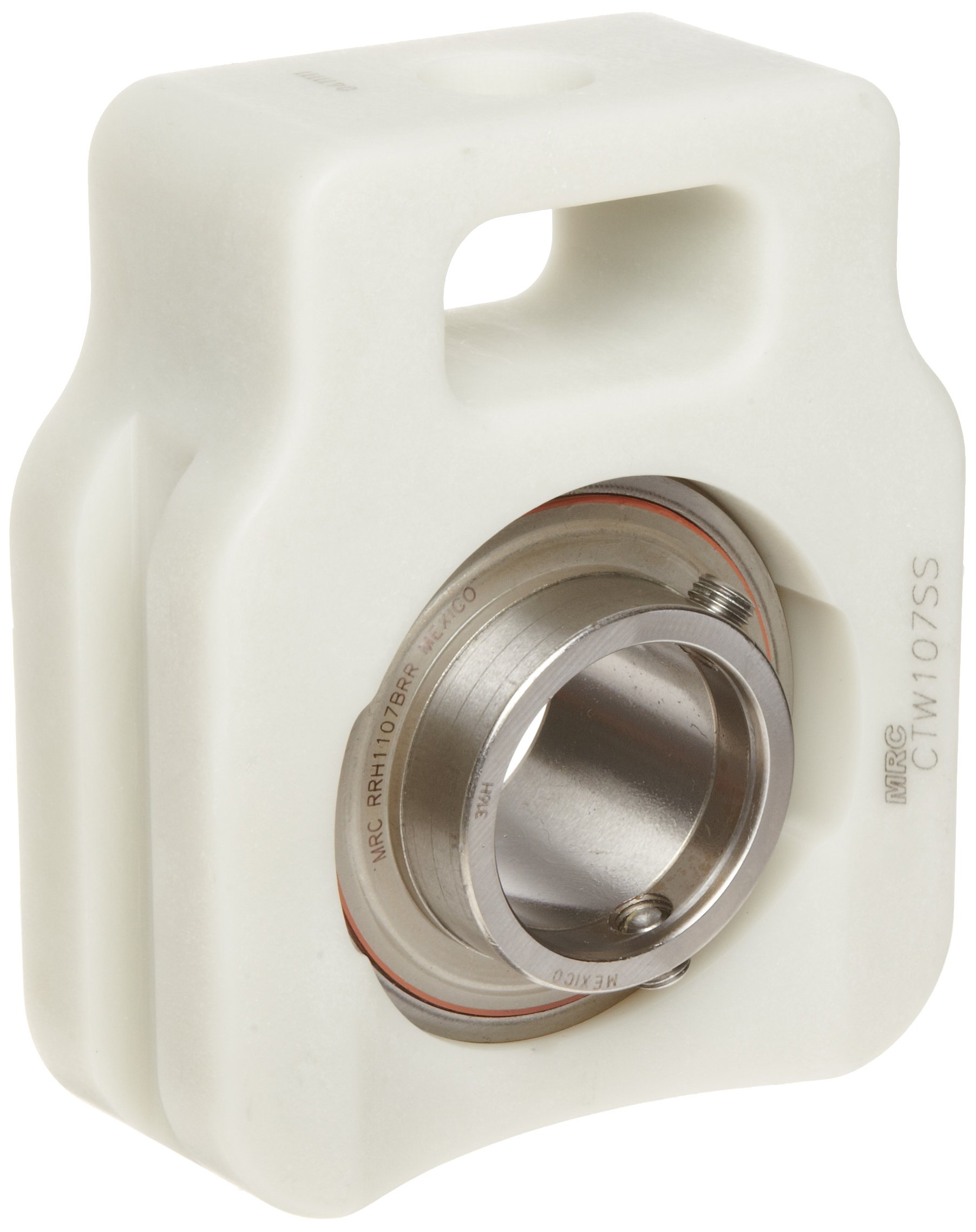

MRC Marathon Series Wide Slot Take-Up Unit, Stainless Steel Ball Bearing Insert, Set Screw Lock, Non-Relubricatable, Non-Expansion, Contact and Flinger Seals, Composite Housing, Inch

Be the first to review this item

ASIN B0071OUGFC

Specifications for this item
Manufacturer Series Number
Marathon
Number of Items
1
Material Type
Stainless Steel
UNSPSC Code
31171500
Outside Diameter
0  inches
Brand Name
MRC
System of Measurement
Inch

This item is no longer available

This item is NOT eligible for "Free Standard Shipping on orders over $50.00" promotion. (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Composite wide-slot take-up unit provides corrosion resistance in food and beverage conveyor applications
  • Stainless steel 420c ball bearing insert for corrosion and wear resistance in washdown environments
  • AISI 304 stainless steel double-lip contact seals help retain lubricant and prevent contamination and flingers provide extra sealing protection
  • Set screw lock for a three-point contact hold on the shaft
  • Polyamide cage spaces balls to help distribute the load and minimize friction, vibration, and noise

Product Description

This MRC Marathon series wide slot take-up unit with a stainless steel insert bearing, composite housing, and a set screw lock, is designed for use with take-up frames to adjust belt tension in food and beverage conveyor systems. The one-piece housing is made of a gray thermoplastic composite material for resistance to food and beverage processing chemicals, such as cooking fats and citric acids. The double-sealed, single-row ball bearing insert in the housing is made of American Iron and Steel Institute (AISI) 420c stainless steel for wear and corrosion resistance in heavy washdown environments. The bearing supports radial, thrust, and combined loads, and has a spherical outer surface that compensates for misalignments. American Iron and Steel Institute (AISI) 304 stainless steel double-lip contact seals on both sides of the bearing help keep contaminants out and retain United States Department of Agriculture (USDA)-approved food-grade grease applied at manufacture that lasts the lifetime of the bearing. For added protection, AISI 304 stainless steel flingers on the inner ring deflect contaminants away from the seals. The bearing locks onto the shaft with two set screws spaced 120 degrees apart for a three-point contact hold. This lock type minimizes ring distortion and vibration and is suitable for low- to moderate-speed applications where the shaft rotates in a single or reversing direction. A polyamide cage spaces the ball rollers for even load distribution and prevents contact to reduce friction, vibration, and noise. This take-up unit is suitable for use with take-up frames in conveyor systems operating in meat, poultry, fruit, beverage, and other food industries.

Mounted bearings combine a bearing mounted inside a housing unit. The bearing housing replaces the need for a casting or weldment to position the bearing securely for reliable operation, and its design determines the type of insert bearing. Insert bearings use rolling elements (ball, cylindrical, spherical, barrel, needle, spindled, or tapered) to maintain the separation between moving parts to reduce rotational friction, and to support radial and axial loads. Available in a variety of materials and mounting configurations, mounted bearings can be one- or two-piece, they can have an extended inner ring and locking device, and they can have seals and end caps that retain lubrication and protect the working parts of the bearing from environmental debris. Mounted bearings support shafts in a variety of mounting configurations (flange block, hanger, pillow block, and take-up block), and are used in a range of applications from light duty shaft guidance on conveyors to road building equipment and crushers.

MRC Bearing Services manufactures ball bearings for automotive, food and beverage, energy, aerospace, and other industrial and commercial applications. The company is headquartered in Jamestown, NY.
