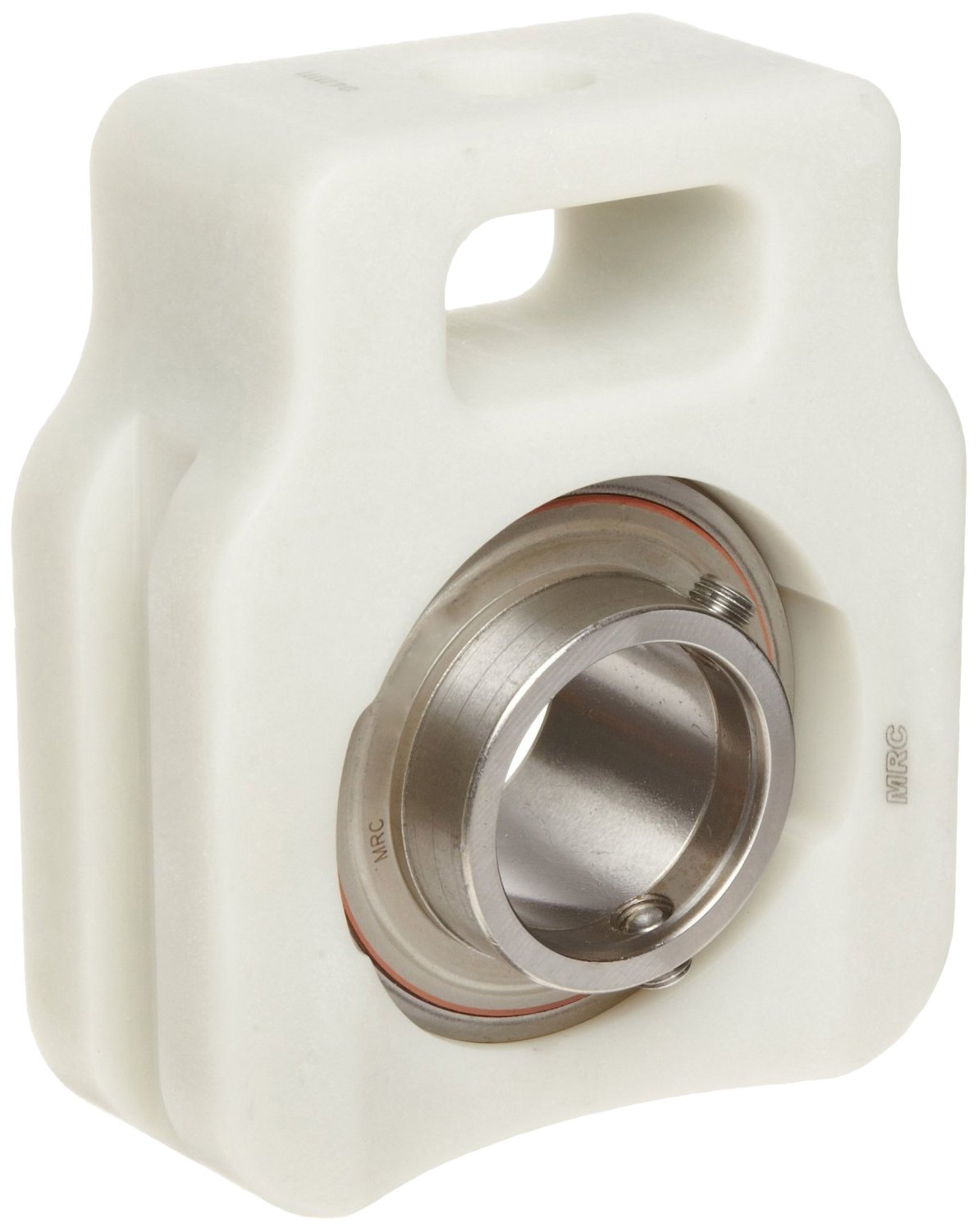

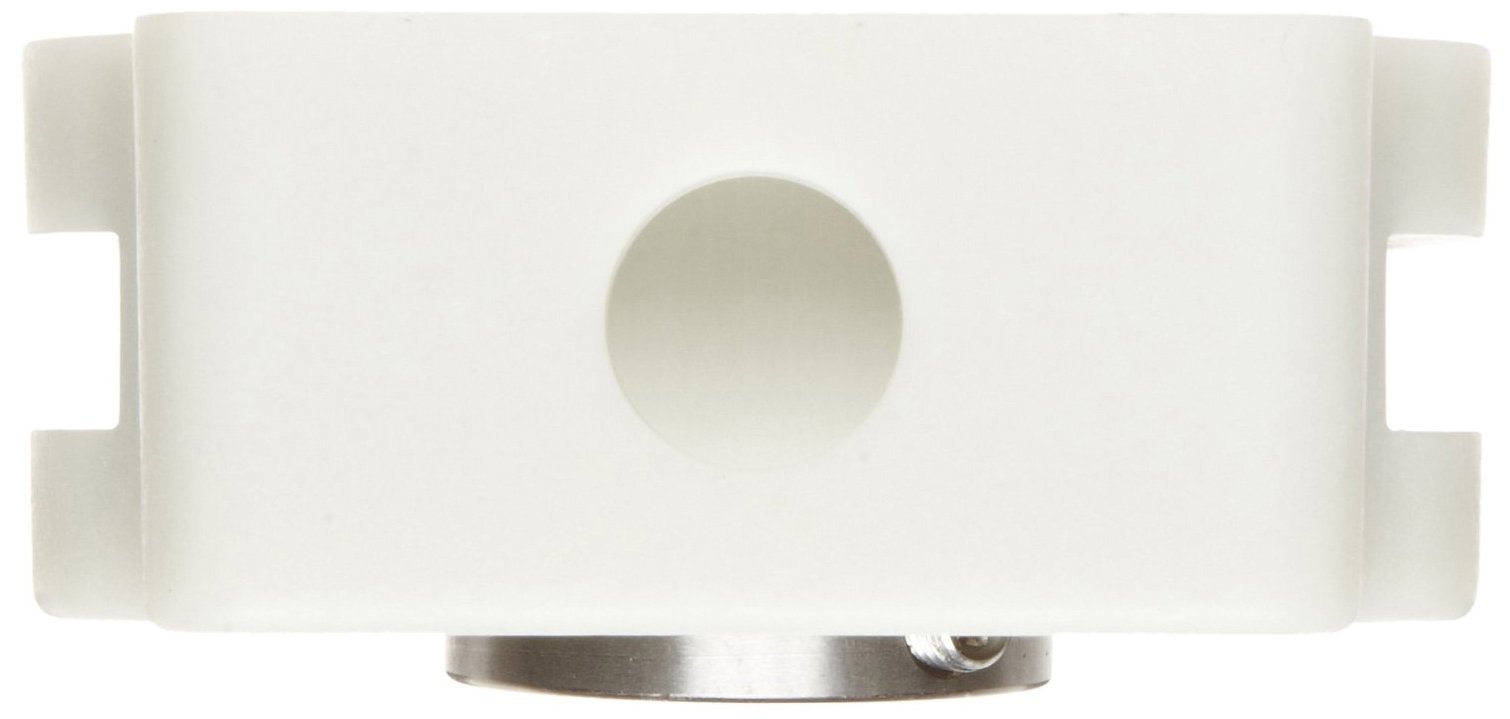

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

MRC Marathon Series Wide Slot Take-Up Unit, ZMaRC Coated Ball Bearing Insert, Set Screw Lock, Non-Relubricatable, Non-Expansion, Contact and Flinger Seals, Composite Housing, Inch

Be the first to review this item

Product Specifications
Manufacturer Series Number
Marathon
Number of Items
1
Material Type
ZMaRC
Outside Diameter
0  inches
Brand Name
MRC
System of Measurement
Inch

This item is no longer available

This item is NOT eligible for "Free Standard Shipping on orders over $50.00" promotion. (Details)

  • Share
Currently showing 1-0 of 0
Misalignment Angle ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price

Currently showing 1-0 of 0

No results match your selection criteria.

Key Features

  • Composite wide-slot take-up unit provides corrosion resistance in food and beverage conveyor applications
  • Ball bearing insert with a zinc-coating for resistance to chemicals used in washdown environments
  • AISI 304 stainless steel double-lip contact seals help retain lubricant and prevent contamination and flingers provide extra sealing protection
  • Set screw lock for a three-point contact hold on the shaft
  • Polyamide cage spaces balls to help distribute the load and minimize friction, vibration, and noise

Product Description

This MRC Marathon series CTW wide-slot take-up unit with a zinc-coated insert bearing, composite housing, and set screw lock, is designed for use with take-up frames to adjust belt tension in food and beverage conveyor systems. The one-piece housing is made of a gray thermoplastic composite material for resistance to food and beverage processing chemicals, such as cooking fats and citric acids. The double-sealed, single-row ball bearing insert in the housing is coated with MRC's proprietary zinc material (ZMaRC) for resistance to chemicals, water, and acids in heavy washdown applications. The bearing supports radial, thrust, and combined loads, and has a spherical outer surface that compensates for misalignments. American Iron and Steel Institute (AISI) 304 stainless steel double-lip contact seals on both sides of the bearing help keep contaminants out and hold in United States Department of Agriculture (USDA)-approved food-grade grease applied at manufacture that lasts the lifetime of the bearing. For added protection, AISI 304 stainless steel flingers on the inner ring deflect contaminants away from the seals. The bearing locks onto the shaft with two set screws spaced 120 degrees apart for a three-point contact hold. This lock type minimizes ring distortion and vibration and is suitable for low- to moderate-speed applications where the shaft rotates in a single or reversing direction. A polyamide cage spaces the ball rollers for even load distribution and prevents contact to reduce friction, vibration, and noise. This take-up unit is suitable for use with take-up frames in conveyor systems operating in meat, poultry, fruit, beverage, and other food industries.

Mounted bearings combine a bearing mounted inside a housing unit. The bearing housing replaces the need for a casting or weldment to position the bearing securely for reliable operation, and its design determines the type of insert bearing. Insert bearings use rolling elements (ball, cylindrical, spherical, barrel, needle, spindled, or tapered) to maintain the separation between moving parts to reduce rotational friction, and to support radial and axial loads. Available in a variety of materials and mounting configurations, mounted bearings can be one- or two-piece, they can have an extended inner ring and locking device, and they can have seals and end caps that retain lubrication and protect the working parts of the bearing from environmental debris. Mounted bearings support shafts in a variety of mounting configurations (flange block, hanger, pillow block, and take-up block), and are used in a range of applications from light duty shaft guidance on conveyors to road building equipment and crushers.

MRC Bearing Services manufactures ball bearings for automotive, food and beverage, energy, aerospace, and other industrial and commercial applications. The company is headquartered in Jamestown, NY.
