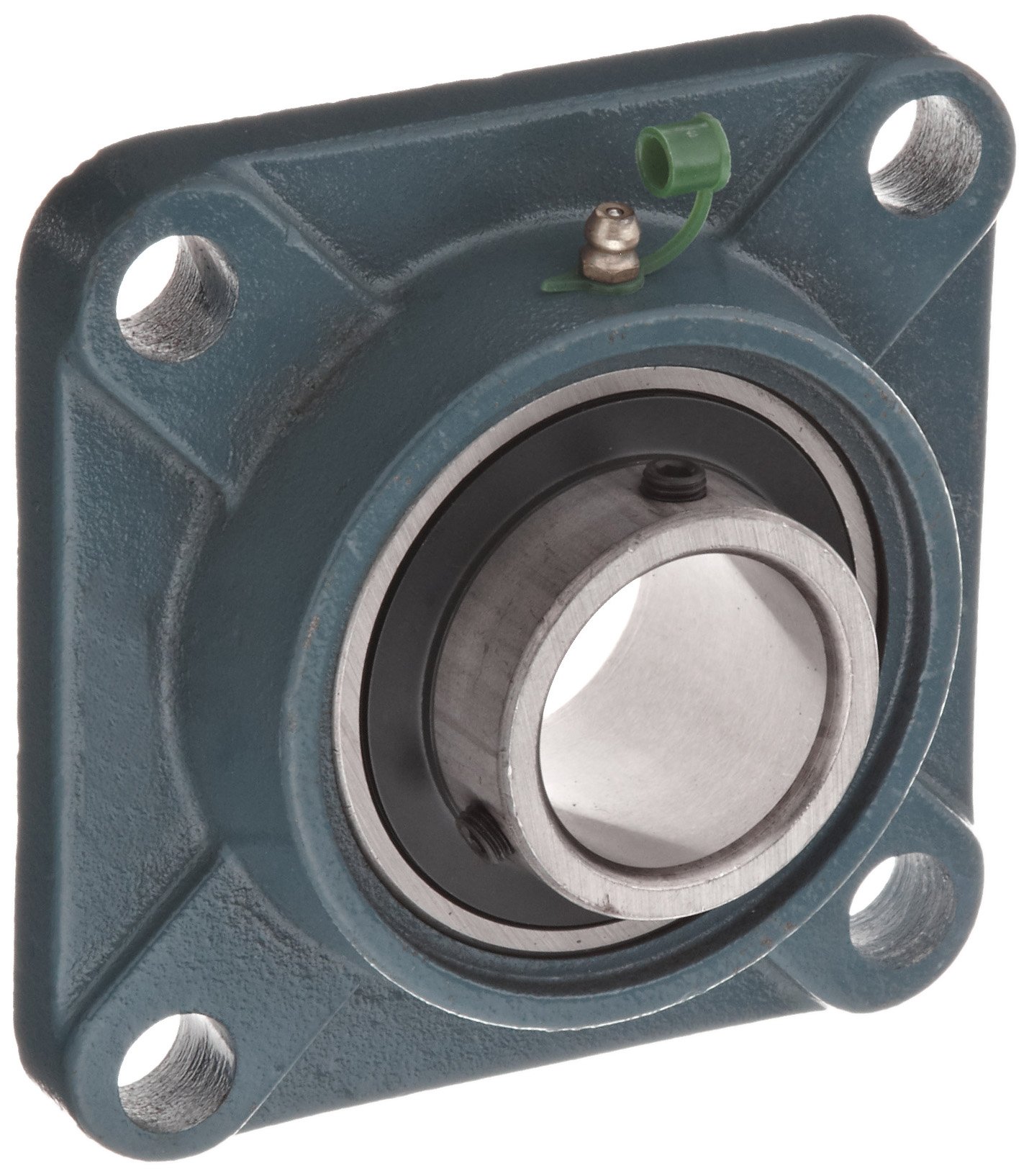

40mm Mounted Bearing UCF208 + Square Flanged Cast Housing

Be the first to review this item

ASIN B002BBH6UI

Specifications for this item
Number of Items
1
Part Number
Kit7348
Outside Diameter
40  millimeters
Brand Name
VXB
UNSPSC Code
31171509

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Sep 2? Order in-stock items in the next 1 day 1 hr 2 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Cast iron F204 flange block housing increases life of the bearing
  • UC208 chrome steel bearing for efficient operations at a wide range of speeds
  • Dynamic (radial) load rating of 29.1 kN and static (axial) load rating of 17.8 kN
  • Set screw prevents shaft slippage
  • 40 mm inside diameter fits conventional cylindrical shafts

Package Details

Shipping Weight: 3.6 pounds
Package Size: 10 x 7.1 x 2.5 inches

Product Description

This UCF208 bearing has a cast iron flange housing, four bolt holes, and a 40mm inside diameter. This ready-to-mount unit requires four M12 mounting bolts (sold separately). It has chrome steel bearings and is designed for efficient operation at a wide range of speeds. The bearing has a dynamic (radial) load rating of 29.1 kN and a static (axial) load rating of 17.8 kN. The unit is secured to the shaft with set screws to prevent slippage. This bearing is most commonly used in mechanical equipment that has moderate loads and shaft speeds and where the shaft and mounting surface are perpendicular to each other.

Mounted bearings combine a bearing mounted inside a housing unit. The bearing housing replaces the need for a casting or weldment to position the bearing securely for reliable operation, and its design determines the type of insert bearing. Insert bearings use rolling elements (ball, cylindrical, spherical, barrel, needle, spindled, or tapered) to maintain the separation between moving parts to reduce rotational friction, and to support radial and axial loads. Available in a variety of materials and mounting configurations, mounted bearings can be one- or two-piece, they can have an extended inner ring and locking device, and they can have seals and end caps that retain lubrication and protect the working parts of the bearing from environmental debris. Mounted bearings support shafts in a variety of mounting configurations (flange block, hanger, pillow block, and take-up block), and are used in a range of applications from light duty shaft guidance on conveyors to road building equipment and crushers.
