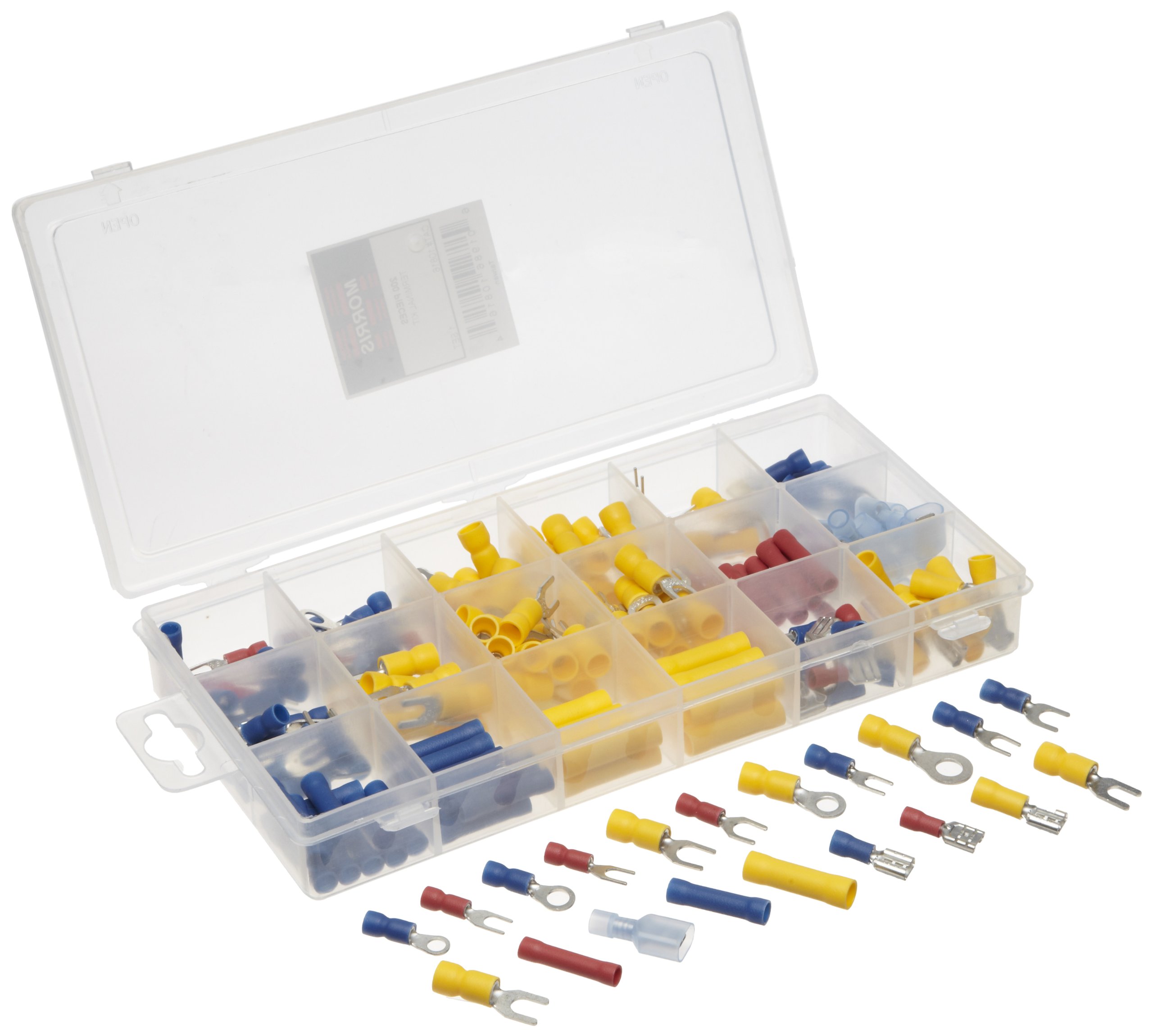

Morris Products 10816 Terminal Kit, 200 Pieces

Be the first to review this item

ASIN B005GDFMQ8

Specifications for this item
Number of Items
1
Catalog Number
Morris-10816 , 10816
Part Number
10816
UPC
601986108164
Brand Name
Morris Products
EAN
0601986108164
Price:
$23.51
Quantity:

In Stock (200)

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Apr 25? Order in-stock items in the next 8 hrs 18 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • 200-piece terminal kit includes vinyl-insulated ring and spade terminals, butt connectors, and male and female disconnects used in wire management
  • Color-coded insulation for ease of identification
  • Made of high-strength copper alloy for electrical conduction
  • Electro-tin plated for corrosion resistance
  • Serrated barrel provides electrical contact and resistance to pullout forces

Package Details

Shipping Weight: 0.9 pounds
Package Size: 8.1 x 4.2 x 1.3 inches

Product Description

The Morris Products 10816 is a 200-piece terminal kit that includes vinyl-insulated ring and spade terminals, butt connectors, and male and female disconnects that have color-coded insulation. The wire management devices also have electro-tin plating, serrated barrels, are made of high-strength copper alloy, and comes in a reusable plastic box. A terminal kit is used by electricians in wire-management applications.

This terminal kit features electrical wire-management components that have color-coded insulation for ease of identification, and are electro-tin plated for corrosion resistance. The serrated barrels provide electrical contact and resistance to pullout forces. The wire range is stamped on each surface for ease of interpretation. The expanded insulation provides an accessible entry and prevents strand hang-up. It can also increase crimping rates and provide relief for mechanical strain. Vinyl terminals have butted seams. The double-crimp disconnects have an extended copper sleeve for multiple crimps. Disconnectors operate at 167 degrees F (75 degrees C) and maximum input of 300V. Spade and ring terminals at 105 degrees F (40.5 degrees C) and 600V. Butt connectors at 167 degrees F (75 degrees C) and 600V. The 10816 terminal kit parts come in a reusable plastic box that provides high impact resistance. Kit components are CUL and UL listed for quality assurance.

Kit Contents

Quantity Item ID Item information
4 10034 Ring terminal 16-14 #8
6 10036 Ring terminal 16-14 #10
4 10062 Ring terminal 12-10 #8
10 10064 Ring terminal 12-10 #10
4 10066 Ring terminal 12-10 ¼”
4 10112 Spade terminal 22-18 #6
4 10114 Spade terminal 22-18 #8
4 10116 Spade terminal 22-18 #10
4 10132 Spade terminal 16-14 #6
11 10134 Spade terminal 16-14 #8
12 10136 Spade terminal 16-14 #10
10 10162 Spade terminal 12-10 #8
24 10164 Spade terminal 12-10 #10
4 10166 Spade terminal 12-10 ¼”
12 10182 Butt connector 22-18
20 10184 Butt connector 16-14
13 10186 Butt connector 12-10
4 10224 Male disconnect 16-14 .250
4 10232 Male disconnect 12-10 .250
5 10314 Female disconnect 22-18 .250
5 10322 Female disconnect 16-14 .187
10 10324 Female disconnect 16-14 .250
10 10332 Female disconnect 12-10 .250
8 10412 Female insulation disconnect 16-14 .250
4 10416 Male insulation disconnect 16-14 .250

Electrical and lighting products can work with organizational devices , such as terminals, connectors, ties, blocks, or markers that are used to connect, control, or identify wires. Electricians, automotive experts, and contractors use these products in electrical and lighting applications.

Morris Products manufactures electrical and lighting products such as meters and testers, tools, power connectors, and organizational devices. The company, founded in 1994, is headquartered in Queensboro, NY.
