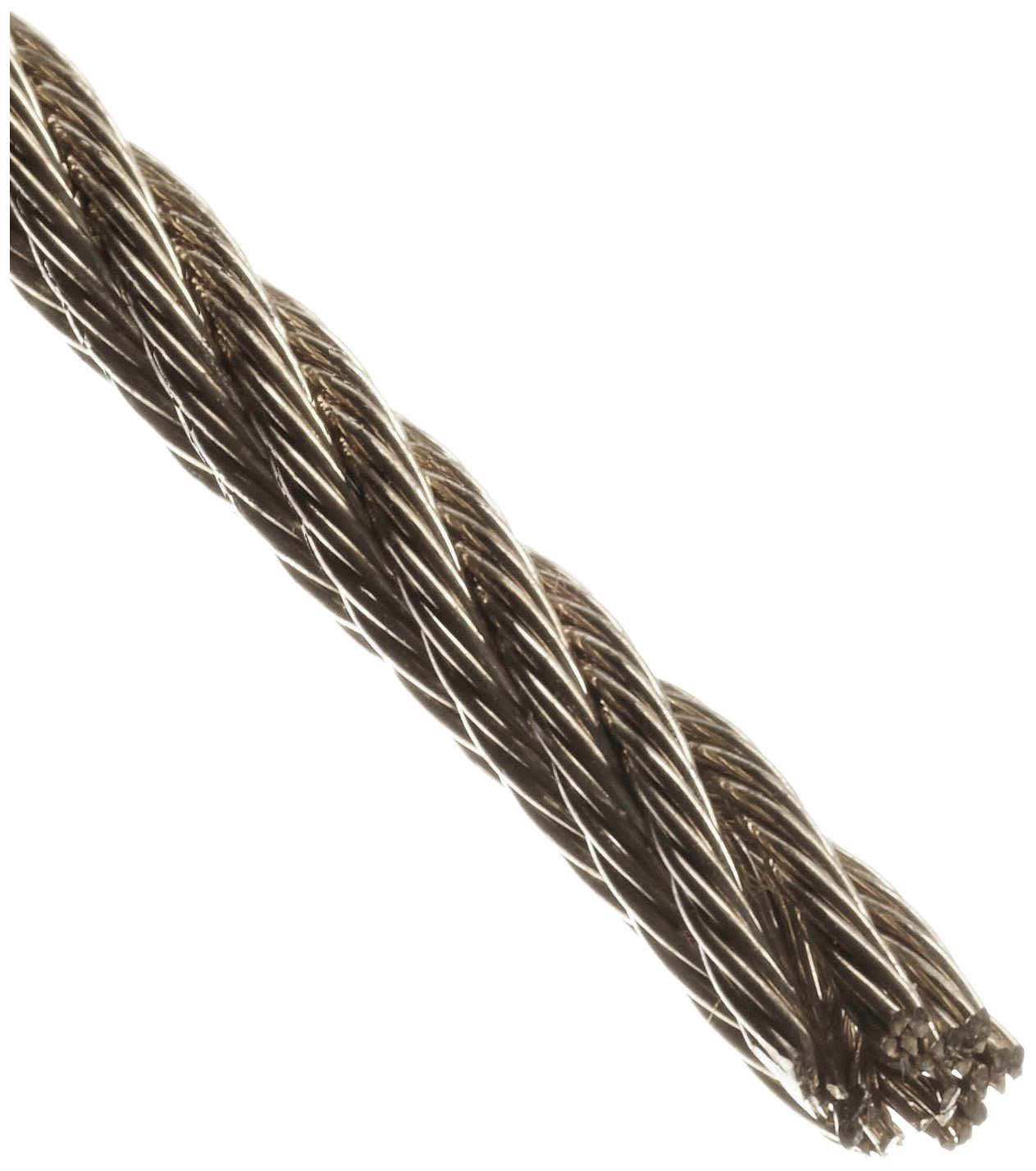

Loos Monel Wire Rope, 7x7 Strand Core

Be the first to review this item

Product Specifications
Number of Items
1
Exterior Finish
Bright
Standard Construction
7x7 Strand Core
Grade
400
Material Type
Nickel
Coated OD
[ N/A ]  inches
UNSPSC Code
31150000
Brand Name
Loos & Co.
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Nov 25? Order in-stock items in the next 1 day 7 hrs 33 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-8 of 8
Bare OD Length Breaking Strength ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All
Currently showing 1-8 of 8
3/64" 25 ft 135 lbs B0013HGOQ8 yes $12.46 Buy Options
3/64" 100 ft 135 lbs B0013HCHN2 yes $23.95 Buy Options
1/16" 10 ft 215 lbs B0013HIFEC yes $4.32 Buy Options
1/16" 250 ft 215 lbs B0013HK0MW yes $85.53 Buy Options
3/32" 25 ft 480 lbs B0013HGOMC yes $7.66 Buy Options
3/32" 100 ft 480 lbs B0013HGOM2 yes $80.79 Buy Options
1/8" 25 ft 850 lbs B0013HK0Q8 yes $16.27 Buy Options
1/8" 100 ft 850 lbs B0013HCHLE yes $160.94 Buy Options

Key Features

  • Monel, also known as nickel-copper alloy 400, resists heat and corrosion but is slightly magnetic
  • Monel is a strong material, especially well-suited for use near salt water
  • 7x7 strand core has seven strands of wire rope with 7 wires in each strand, formed helically around a strand core
  • 7x7 strand core is stronger but less flexible than the 6x19 and 6x36 class constructions
  • Can be used over pulleys, and in aircraft and automotive controls

Product Description

This wire rope can be used over pulleys, and in aircraft and automotive controls. Monel, also known as nickel-copper alloy 400, resists heat and corrosion but is slightly magnetic. This strong material is especially well-suited for use near salt water. 7x7 strand core has seven strands of wire rope with 7 wires in each strand, formed helically around a strand core. It is stronger, but less flexible than 6x19 and 6x36 class construction wire rope.

Wire rope, also called wire cable, is an assembly of wire strands formed helically around a central core. It is used for pulling, lifting, rigging, hoisting, and motion-control applications most commonly found in the manufacturing, marine, oil, mining, fiber-optics, aircraft, automotive accessory, and construction industries. A combination of characteristics including material, finish, construction, diameter, length, and breaking strength combines to give each rope its performance ability. Wire rope materials are selected for properties such as strength, elasticity, conductivity, and chemical- and weather-resistance. For strength purposes, most wire rope is made of bright (uncoated or bare) wire. However, it is also produced in a variety of finishes, such as polypropylene (PE), vinyl (PVC), or nylon. These coatings can increase overall durability and strength, and allow for specific use. The breaking strength for wire rope is the strength at which new wire rope will fail under a stationary load. Breaking strength is not considered safe working load (SWL) limit.
