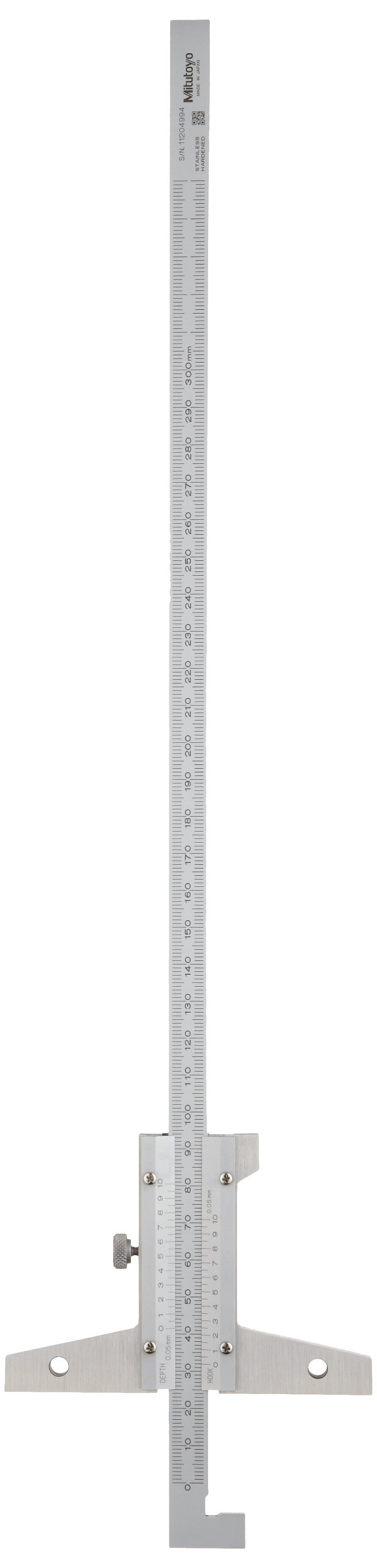

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Mitutoyo Series 527 Vernier Depth Gauges, Hook End Type, Metric

Be the first to review this item

Product Specifications
Manufacturer Series Number
Vernier Depth Gage
Style Name
Vernier
UNSPSC Code
41112401
Brand Name
Mitutoyo
System of Measurement
Metric

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Aug 28? Order in-stock items in the next 8 hrs 13 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-1 of 1
Range Accuracy Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All
Currently showing 1-1 of 1
0-150mm +/-0.05mm 527-401 B003U9W0QA yes $232.00 Buy Options

Key Features

  • Measurement range for series of 0 up to 300mm, and resolution of 0.02mm
  • Vernier scale for precise measurements in fine units
  • Can be used for standard depth measurements as well as depth and thickness measurements of a projection or lip in a hole
  • Made of hardened stainless steel
  • Optional wider extension base sold separately

Product Description

The Mitutoyo Series 527 Vernier Depth Gauges, Hook End Type, Metric, depending on the model, have a measurement range of 0 to 150mm, a resolution (or smallest graduation interval) of 0.05mm, with + or – 0.05mm of accuracy; 0 to 200mm, a resolution or 0.05mm, with + or – 0.05mm of accuracy; or a range of 0 to 300mm, a resolution of 0.05mm, with + or – 0.08mm of accuracy. The vernier scale provides precise measurements. The end of the main scale is hook-shaped to allow depth and thickness measurements of a projected portion or lip in a hole, in addition to standard depth measurements. These gauges are made of hardened stainless steel and the bases of the units (100mm long) and measuring faces are hardened and lapped for accuracy. An optional wider extension base is sold separately. Depth gauges are typically used in manufacturing, machining, and mechanical engineering.

Depth gauges are precision measuring instruments used to determine the depth of any shape that has a step, groove, or slot. These gauges often take the form of sliders that travel on a measuring beam or rods, are moved to position by hand, and then adjusted with a calibrated screw. The base of the gauge rests at the top of the shape whose recession is to be measured, while the beam or rods extend to the bottom of the recession to determine the measurement. Gauge position is read from a graduated scale, dial, counters, or an electronic display.

Mitutoyo manufactures precision measuring tools, metrology equipment, and related systems. The company, founded in Tokyo in 1934, formed Mitutoyo America Corporation in 1963 with headquarters in Aurora, IL.
