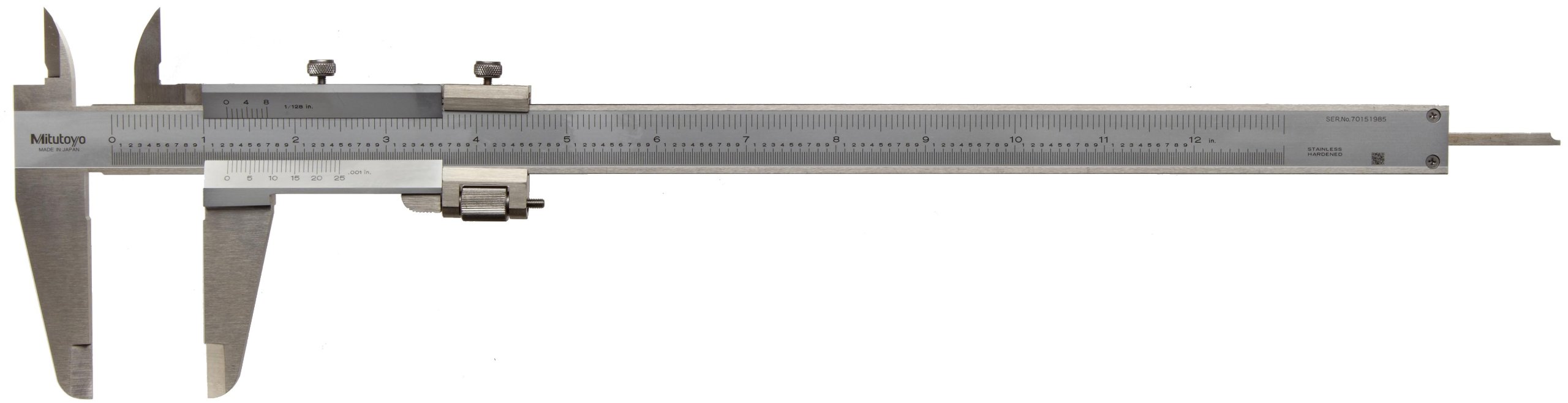

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Mitutoyo Vernier Caliper, With Fine Adjustment, Inch

Be the first to review this item

Product Specifications
Manufacturer Series Number
Vernier Caliper
Material Type
Stainless Steel
UNSPSC Code
41111621
Brand Name
Mitutoyo
System of Measurement
Inch

This item is no longer available

This item is NOT eligible for "Free Standard Shipping on orders over $50.00" promotion. (Details)

  • Share
Currently showing 1-0 of 0
Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price

Currently showing 1-0 of 0

No results match your selection criteria.

Key Features

  • Hardened stainless steel construction with satin chrome finish, for protection of caliper
  • Four-way measurement capability for outer dimension (OD), inner dimension (ID), depth, and step measurements
  • Fine adjustment carriage to control slider movement for precision measurements
  • Raised sliding surfaces for preventing defacement and wear of scale graduations
  • Meets Federal Accuracy Specifications GGG-C-111B

Product Description

The Mitutoyo 532 series vernier caliper has a fine adjustment carriage to precisely control movement of the vernier scale, and two sets of jaws and a depth bar for four-way measurement in inch units of outer dimension (OD), inner dimension (ID), step, and depth, for applications where the highest accuracy is required, especially in scientific research and in industries where parts must fit exactly.

The caliper has a dual vernier scale, with both the upper and lower scales measuring in inch units. A fine adjustment carriage feeds the slider to allow precise movement of the vernier scale. A 14-degree vernier face angle improves visibility and helps prevent parallax error in measurement reading. The caliper’s two sets of jaws provide the capability to make OD and ID measurements, as well as step measurements, where the butt end of the fixed jaw measures one end of a work piece before its upper/lower or inner/outer "steps" are measured. A depth measuring blade with rounded edges provides the ability to make depth measurements. The scales are raised to slide easily and protect the graduation markings. A thumbwheel permits fast and easy measuring. A clamping screw on the upper scale rotates to control scale movement and locks to hold the sliding jaw’s position. The caliper is made of hardened, corrosion-resistant stainless steel with a satin chrome finish that helps reduce glare. The caliper meets Federal Accuracy Specifications GGG-C-111B.

Calipers measure the distance between two opposing sides of an object. They make inside, outside, depth, or step measurements, according to their type. Calipers are commonly used in architecture, metalworking, mechanical engineering, and machining. The simplest calipers have two legs to mark the two points and require a ruler to take the measurement. More complex calipers use two sets of jaws instead of legs and have up to two graduated scales. Vernier, dial, and digital calipers give direct and accurate readings and are functionally identical, having a calibrated scale with a fixed jaw, and another jaw with a movable pointer that slides along the scale. The vernier caliper has a scale sliding parallel to the main scale for an additional, fractional reading to improve measurement precision. The dial caliper has a circular dial with a pointer on a toothed gear rack replacing the second vernier scale. As with the vernier, this second measurement is added to the reading from the main scale to obtain the result. The digital caliper takes a differential by zeroing the display at any point along the slide, with an LCD that displays a single value in English and/or metric units.

Mitutoyo manufactures precision measuring tools, metrology equipment, and systems. The company was founded in Tokyo in 1934 and formed Mitutoyo America Corporation in 1963, which is headquartered in Aurora, IL.
