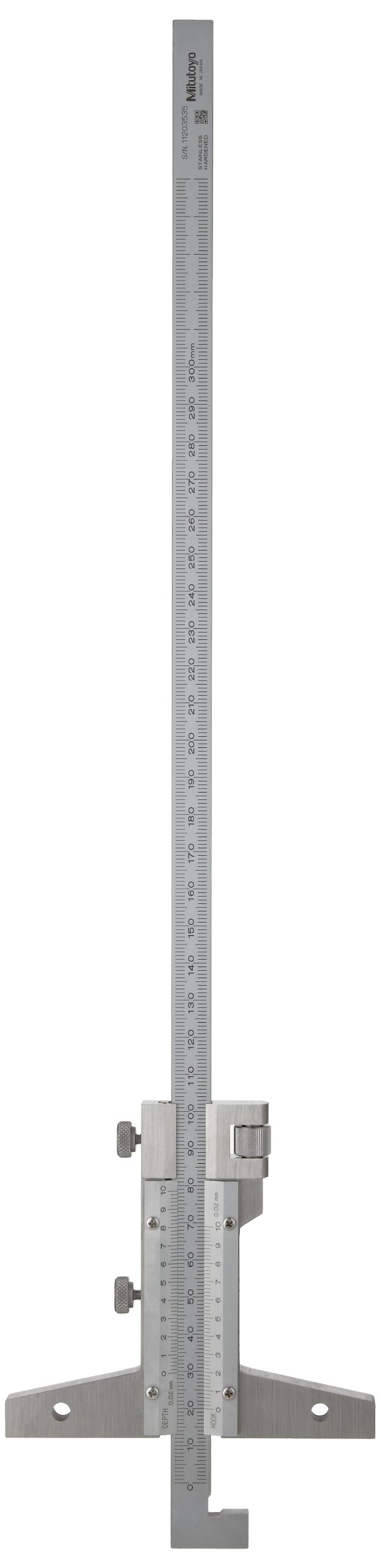

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Mitutoyo Series 527 Vernier Depth Gauges with Fine Adjustment, Hook End Type, Metric

Be the first to review this item

Product Specifications
Manufacturer Series Number
Vernier Depth Gage
Style Name
Brand Name
System of Measurement

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Apr 21? Order in-stock items in the next 2 days 2 hrs 44 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-3 of 3
Range Resolution Measurement accuracy Part number ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the (and Amazon) catalog.


If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

All All All All
Currently showing 1-3 of 3
0-150mm 0.02mm +/-0.03mm 527-411 B003U9W0R4 yes $283.00 Buy Options
0-200mm 0.02mm +/-0.03mm 527-412 B003U9W0RE yes $335.00 Buy Options
0-300mm 0.02mm +/-0.04mm 527-413 B003U9W0RY yes $180.25 Buy Options

Key Features

  • Measurement range for series of 0 up to 300mm, and resolution of 0.02mm
  • Vernier scale for precise measurements in fine units
  • Can be used for standard depth measurements as well as depth and thickness measurements of a projection or lip in a hole
  • Made of hardened stainless steel and has fine adjustment screw for precise measurements
  • Optional wider extension base sold separately

Product Description

The Mitutoyo Series 527 Vernier Depth Gauges with Fine Adjustment, Hook End Type, Metric, have a measurement range of 0 to 150mm, a resolution (or smallest graduation interval) of 0.02mm, with + or – 0.03mm of accuracy; 0 to 200mm, a resolution or 0.02mm, with + or – 0.03mm of accuracy; or a range of 0 to 300mm, a resolution of 0.02mm, with + or – 0.04mm of accuracy. The vernier scale provides precise measurements. The end of the main scale is hook-shaped to allow depth and thickness measurements of a projected portion or lip in a hole, in addition to standard depth measurements. These gauges are made of hardened stainless steel and the bases of the units (100mm long) and measuring faces are hardened and lapped for durability and accuracy. They have a fine adjustment screw for taking precise measurements. An optional wider extension base is sold separately. Depth gauges are typically used in manufacturing, machining, and mechanical engineering.

Depth gauges are precision measuring instruments used to determine the depth of any shape that has a step, groove, or slot. These gauges often take the form of sliders that travel on a measuring beam or rods, are moved to position by hand, and then adjusted with a calibrated screw. The base of the gauge rests at the top of the shape whose recession is to be measured, while the beam or rods extend to the bottom of the recession to determine the measurement. Gauge position is read from a graduated scale, dial, counters, or an electronic display.

Mitutoyo manufactures precision measuring tools, metrology equipment, and related systems. The company, founded in Tokyo in 1934, formed Mitutoyo America Corporation in 1963 with headquarters in Aurora, IL.
