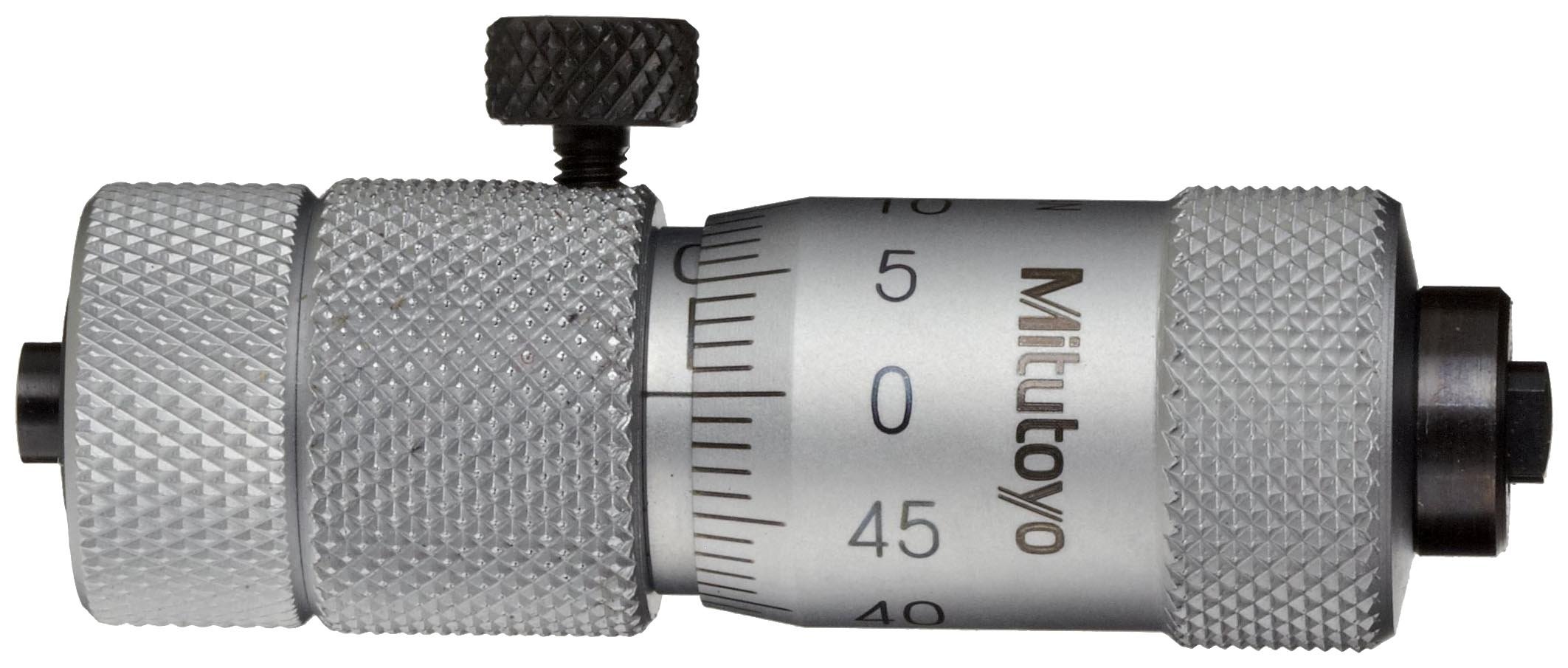

Mitutoyo Tubular Vernier Inside Micrometer, Extension Rod Type, Metric

Be the first to review this item

Product Specifications
Manufacturer Series Number
Series 137
UNSPSC Code
41111601
Brand Name
Mitutoyo
System of Measurement
Metric

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Oct 22? Order in-stock items in the next 4 hrs 4 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-6 of 6
Range Resolution Measurement accuracy Part number ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All
Currently showing 1-6 of 6
50-1000mm 0.01mm +/-0.031mm 137-204 B003MUSIP4 yes $519.57 Buy Options
50-1500mm 0.01mm +/-0.043mm 137-205 B003MUL4T6 yes $584.22 Buy Options
50-150mm 0.01mm +/-0.009mm 137-201 B003MUQ7JI yes $221.00 Buy Options
50-300mm 0.01mm +/-0.014mm 137-202 B003MUKWL2 yes $297.70 Buy Options
50-500mm 0.01mm +/-0.019mm 137-203 B003MUN64W yes $355.38 Buy Options
50-63mm 0.01mm +/-0.004mm 137-011 B003UATDJQ yes $134.00 Buy Options

Key Features

  • Tubular micrometer measures the inside dimensions of cylinders, rings, and parallel surfaces
  • Vernier scale in metric units for taking precise inside dimension (ID) measurements
  • Includes interchangeable extension rods for a diversified range of measurement
  • Slow head travel helps provide fine positioning
  • Solid extension rods help provide durability

Product Description

The Mitutoyo 137 series tubular vernier inside micrometer includes a set of extension rods with anvils for a diversified range of measurement measuring inside dimensions (ID) of cylinders, rings, and parallel surfaces. It has a vernier scale in metric units for taking precise ID measurements to 0.01mm, and a satin chrome rust- and glare-resistant finish. The micrometer head has a travel of 13mm per revolution that helps provide fine positioning. The solid extension rods help provide durability. A locking clamp helps hold measurements in place. The micrometer and accessories come with a fitted case for storage.

Micrometers are precision measuring instruments that use a calibrated screw to measure small distances. These measurements are translated into large rotations of the screw that are then able to be read from a scale or a dial. Micrometers are typically used in manufacturing, machining, and mechanical engineering. There are three types of micrometer: outside, inside, and depth. Outside micrometers may also be called micrometer calipers, and are used to measure the length, width, or outside diameter of an object. Inside micrometers are typically used to measure interior diameter, as in a hole. Depth micrometers measure the height, or depth, of any shape that has a step, groove, or slot.

Mitutoyo manufactures precision measuring tools, metrology equipment, and systems. The company was founded in Tokyo in 1934 and formed Mitutoyo America Corporation in 1963, which is headquartered in Aurora, IL.
