Mitutoyo Tubular Vernier Inside Micrometer, Inch

Be the first to review this item

Product Specifications
Manufacturer Series Number
Series 133
UNSPSC Code
41111601
Brand Name
Mitutoyo
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Dec 23? Order in-stock items in the next 14 hrs 2 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-10 of 10
Range Resolution Measurement accuracy Part number ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All
Currently showing 1-10 of 10
10-11" 0.001" +/-0.0003" 133-231 B003UATDI2 yes $234.00 Buy Options
11-12" 0.001" +/-0.0003" 133-232 B003UATDIC Temporarily out of stock. Order now and we'll deliver when available. $234.00 Buy Options
2-3" 0.001" +/-0.00015" 133-223 B003UATDFU yes $182.00 Buy Options
3-4" 0.001" +/-0.0002" 133-224 B003UATDG4 yes $182.00 Buy Options
4-5" 0.001" +/-0.00025" 133-225 B003UATDGE yes $186.00 Buy Options
5-6" 0.001" +/-0.00025" 133-226 B003UATDGO yes $186.00 Buy Options
6-7" 0.001" +/-0.00025" 133-227 B003UATDGY yes $152.12 Buy Options
7-8" 0.001" +/-0.00025" 133-228 B003UATDH8 yes $202.00 Buy Options
8-9" 0.001" +/-0.00025" 133-229 B003UATDHI yes $169.54 Buy Options
9-10" 0.001" +/-0.0003" 133-230 B003UATDHS yes $215.00 Buy Options

Key Features

  • Tubular micrometer measures the inside dimensions of cylinders, rings, and parallel surfaces
  • Vernier scale in inch units for taking precise inside dimension (ID) measurements
  • Adjustable zero-setting helps provide accuracy
  • Satin chrome finish on thimble and sleeve helps resist rust and reduce glare
  • Carbide measuring faces help provide wear resistance

Product Description

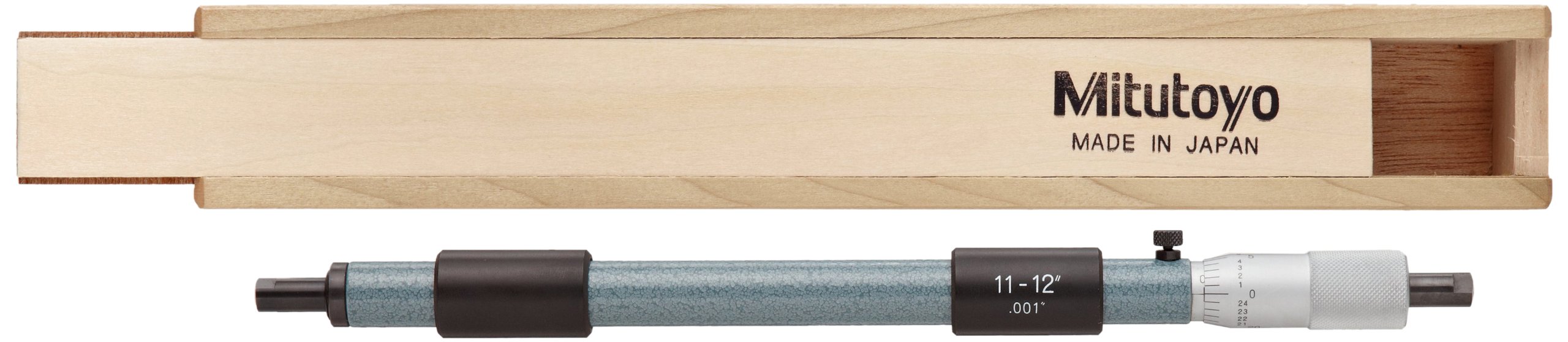

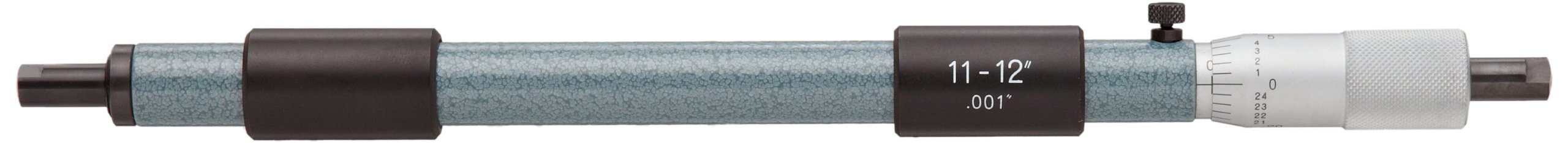

The Mitutoyo 133 series tubular vernier inside micrometer has a vernier scale in inch units for taking precise inside dimension (ID) measurements of the inside dimensions of cylinders, rings, and parallel surfaces. The micrometer head sleeve rotates to adjust the zero point to help provide accuracy. A locking clamp helps hold measurements in place. The vernier scale is graduated to 0.001”, and has a satin chrome rust- and glare-resistant finish. The measuring faces are carbide-tipped for wear resistance. The micrometer comes with a fitted case for storage.

Micrometers are precision measuring instruments that use a calibrated screw to measure small distances. These measurements are translated into large rotations of the screw that are then able to be read from a scale or a dial. Micrometers are typically used in manufacturing, machining, and mechanical engineering. There are three types of micrometer: outside, inside, and depth. Outside micrometers may also be called micrometer calipers, and are used to measure the length, width, or outside diameter of an object. Inside micrometers are typically used to measure interior diameter, as in a hole. Depth micrometers measure the height, or depth, of any shape that has a step, groove, or slot.

Mitutoyo manufactures precision measuring tools, metrology equipment, and systems. The company was founded in Tokyo in 1934 and formed Mitutoyo America Corporation in 1963, which is headquartered in Aurora, IL.
