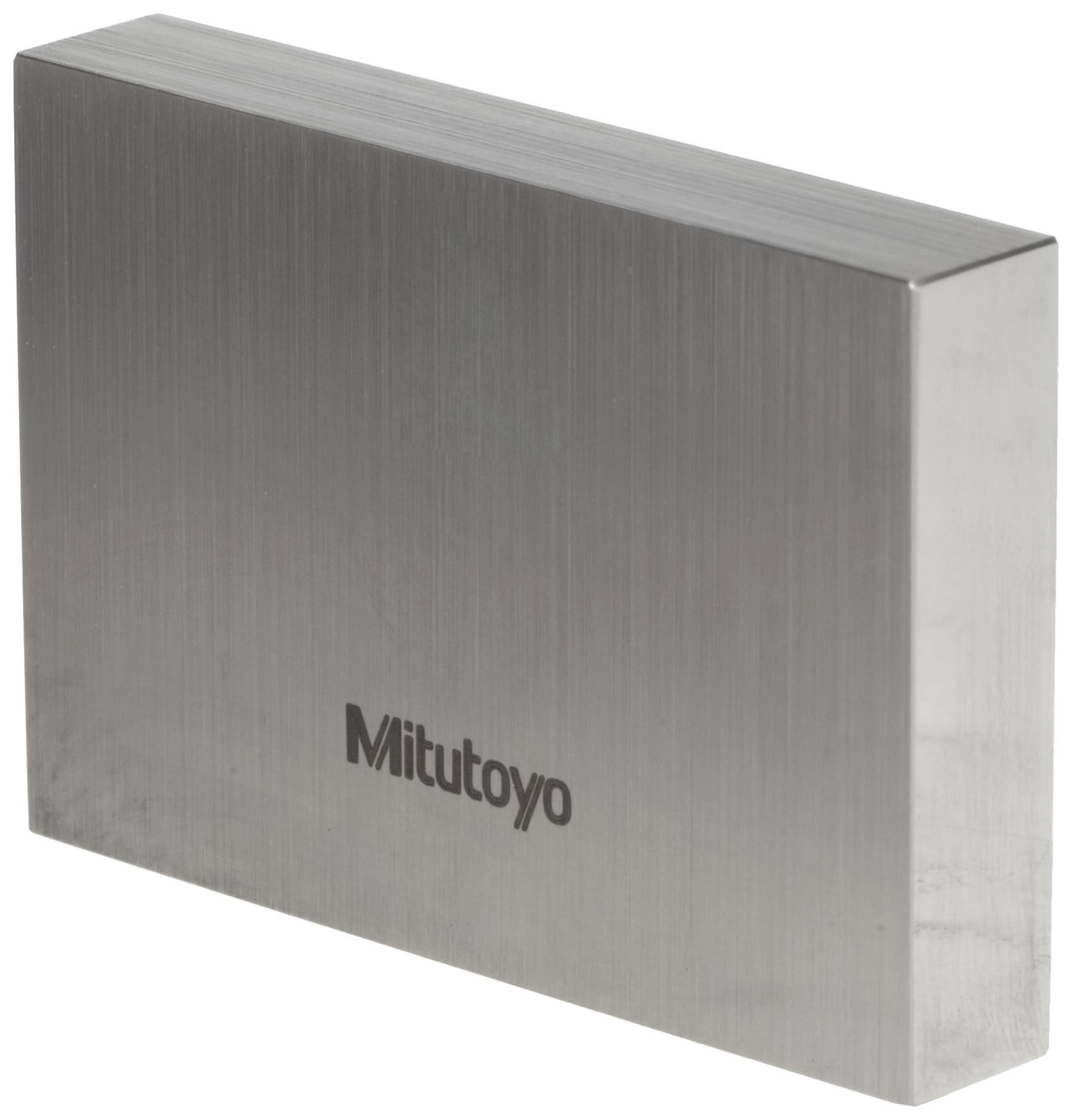

Mitutoyo Steel Rectangular Gage Block, ASME Grade 0, Inch

Be the first to review this item

Product Specifications
Item Shape
Rectangular
Grade
ASME Grade 0
Material Type
Steel
UNSPSC Code
41111618
Item Depth
0.355 inches
Brand Name
Mitutoyo
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Sep 24? Order in-stock items in the next 12 hrs 32 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 113 Next 20 »
Item thickness string Item width string Item length string Number of items ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All
Currently showing 1-20 of 113 Next 20 »
0.355 inches 1.181 inches 0.004 inches 1 B003U9WADI yes $118.00 Buy Options
0.355 inches 1.181 inches 0.005 inches 1 B003U9WAEW yes $118.00 Buy Options
0.355 inches 1.181 inches 0.007 inches 1 B003U9WAHO yes $118.00 Buy Options
0.355 inches 1.181 inches 0.008 inches 1 B003U9WAIS yes $100.00 Buy Options
0.355 inches 1.181 inches 0.009 inches 1 B003U9WAJW yes $98.35 Buy Options
0.355 inches 1.181 inches 0.01 inches 1 B003U9WALA yes $100.00 Buy Options
0.355 inches 1.181 inches 0.012 inches 1 B003U9WAO2 yes $92.95 Buy Options
0.355 inches 1.181 inches 0.013 inches 1 B003U9WAP6 yes $92.95 Buy Options
0.355 inches 1.181 inches 0.014 inches 1 B003U9WAQA yes $91.46 Buy Options
0.355 inches 1.181 inches 0.015 inches 1 B003U9WARY yes $92.95 Buy Options
0.355 inches 1.181 inches 0.017 inches 1 B003U9WAU6 yes $88.05 Buy Options
0.355 inches 1.181 inches 0.019 inches 1 B003U9WAWE yes $89.45 Buy Options
0.355 inches 1.181 inches 0.02 inches 1 B003U9WAXI Usually ships in 2 to 4 weeks $47.50 Buy Options
0.355 inches 1.181 inches 0.0201 inches 1 B003U9W9TS yes $47.50 Buy Options
0.355 inches 1.181 inches 0.0202 inches 1 B003U9W9W0 yes $47.50 Buy Options
0.355 inches 1.181 inches 0.0203 inches 1 B003U9W9XY yes $47.50 Buy Options
0.355 inches 1.181 inches 0.0204 inches 1 B003U9WA06 yes $47.50 Buy Options
0.355 inches 1.181 inches 0.0205 inches 1 B003U9WA1U yes $47.50 Buy Options
0.355 inches 1.181 inches 0.0206 inches 1 B003U9WA42 yes $47.50 Buy Options
0.355 inches 1.181 inches 0.0209 inches 1 B003U9WA9C yes $47.50 Buy Options

Key Features

  • Grade 0 gage block supplied with a Mitutoyo certificate of inspection that the block meets American Society of Mechanical Engineers (ASME) B89.1.9-2002 standard for flatness, length, parallelism, and surface finish
  • High-carbon, high-chrome steel provides high hardness and wear resistance
  • Rectangular base for accurate wringing
  • Nominal length (in inches) indicated with laser-etched, black characters
  • Identification number etched in block for traceability

Product Description

The Mitutoyo grade 0 rectangular gage block is made of steel, has its nominal length engraved in inches, and is supplied with a Mitutoyo inspection certificate that states that the block meets American Society of Mechanical Engineers (ASME) B89.1.9-2002 grade standard for flatness, length, parallelism, and surface finish. The inspection certificate specifies the deviation of the individual block from its nominal length. Gage blocks are commonly used to calibrate fixtures and precision instruments in workshop, inspection, and dimensional metrology applications, to inspect tools such as mounting tools, cutters, fixtures, and mechanical parts, and in the gage manufacturing process itself.

This grade 0 gage block is commonly used in workshop and inspection applications to calibrate and inspect mechanical parts and tools, to verify the accuracy of plug and snap gages, and to set electronic measuring devices. It is made of high-carbon, high-chrome steel which has a high hardness for minimum deterioration, and is selected for its wear resistance. This gage block has a rectangular base for accurate wringing. Nominal length is measured in inches, and is indicated with laser-etched, black characters. The length of a gage block is usually slightly shorter than its stamped nominal length, to account for the thin layer of oil or wring film used when two or more blocks are wrung together. An identification number is laser-etched on the block for traceability. The block has a depth of 0.355 inches. It comes in a carrying case with a padded, formed interior.

This gage block is supplied with a Mitutoyo inspection certificate [National Institute of Standards in Engineering (NIST)-traceable] that the block meets ASME B89.1.9-2002 standard for flatness, length, parallelism, and surface finish.

Gage blocks (also called gauge blocks, Hoke blocks, Jo blocks, slip gages, and Johansson gages) are blocks used to calibrate measuring equipment and to standardize the measurement of length in manufacturing industries. They are commonly made of precision-ground steel, ceramic, or carbide material, and have a square or rectangular base. Each block has a unique identification number. Length is in inch or millimeter measurement. They can be sold individually, and are also sold in sets with blocks of varying lengths. Gage blocks can be wrung together to create a required length. Wringing is the process of lapping blocks together with a small amount of oil. They are standardized by grade, which refers to the tolerance or deviation of an individual block from its nominal length. Gage block grades are defined for flatness, length, parallelism and surface finish. Some grades of gage blocks meet standards such as ASME, Association for Iron and Steel (AIST), and International Organization for Standards (ISO). Application and required level of accuracy dictate which grade of gage block should be used. Some manufacturers provide an internally-generated certificate of inspection to verify that a gage block meets grade standards. Gage blocks can also go through a calibration certification process to verify measurement accuracy. Calibration is performed by an accredited facility. Gage blocks are commonly recalibrated after use to ensure dimensional accuracy. If a gage block does not meet calibration standards, it should no longer be used. Both a certificate of inspection and a calibration certificate specify the deviation from the nominal length.

Mitutoyo manufactures precision measuring tools, metrology equipment, and systems. The company was founded in Tokyo in 1934 and formed Mitutoyo America Corporation in 1963, which is headquartered in Aurora, IL.
