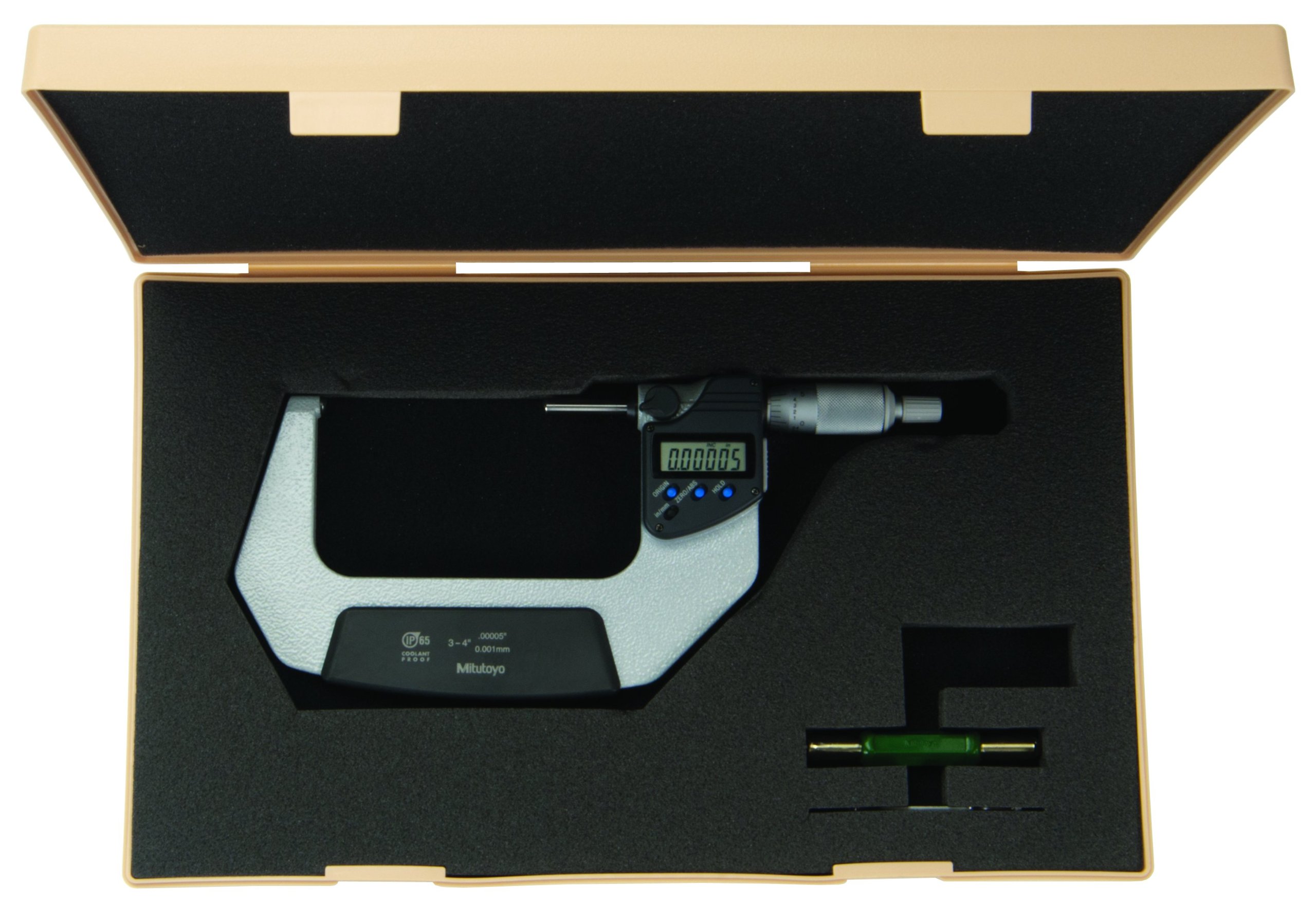

Mitutoyo Spherical LCD Face Micrometer, Ratchet Stop, Inch/Metric

Be the first to review this item

Product Specifications
Manufacturer Series Number
Spherical Face Micrometers
Material Type
Style Name
Brand Name
System of Measurement
Inch and Metric

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Jul 30? Order in-stock items in the next 18 hrs 10 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-8 of 8
Range Accuracy Graduation Specifications Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the (and Amazon) catalog.


If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

All All All All All
Currently showing 1-8 of 8
0-1"/0-25.4mm +/-0.0001" 0.00005"/0.001mm Spherical Spindle 395-371 B001OBQC9C 7 $372.92 Buy Options
0-1"/0-25.4mm +/-0.0001" 0.00005"/0.001mm Flat Spindle 395-351 B001VXSKMK 1 $332.15 Buy Options
1-2"/25.4-50.8mm +/-0.0001" 0.00005"/0.001mm Spherical Spindle 395-372 B003UATJ4U 1 $435.00 Buy Options
1-2"/25.4-50.8mm +/-0.0001" 0.00005"/0.001mm Flat Spindle 395-352 B003UATJ36 1 $415.00 Buy Options
2-3"/50.8-76.2mm +/-0.0001" 0.00005"/0.001mm Spherical Spindle 395-373 B003UATJ5E 3 $482.00 Buy Options
2-3"/50.8-76.2mm +/-0.0001" 0.00005"/0.001mm Flat Spindle 395-353 B003UATJ3G 1 $482.00 Buy Options
3-4"/76.2-101.6mm +/-0.00015" 0.00005"/0.001mm Spherical Spindle 395-374 B003UATJ68 1 $527.00 Buy Options
3-4"/76.2-101.6mm +/-0.00015" 0.00005"/0.001mm Flat Spindle 395-354 B003UATJ3Q 1 $516.00 Buy Options

Key Features

  • Spherical anvil and spindle faces for measuring tubing wall thickness
  • Digital, single-value readout LCD displays in inches and metric units for readability
  • Statistical Process Control (SPC) output transmits results to a computer or external device through an interface cable (sold separately)
  • Ratchet-stop mechanism helps provide uniform pressure for precise, repeatable measurements
  • Rated IP65 for resistance to penetration by dust and liquid up to the force of a low-pressure water jet

Product Description

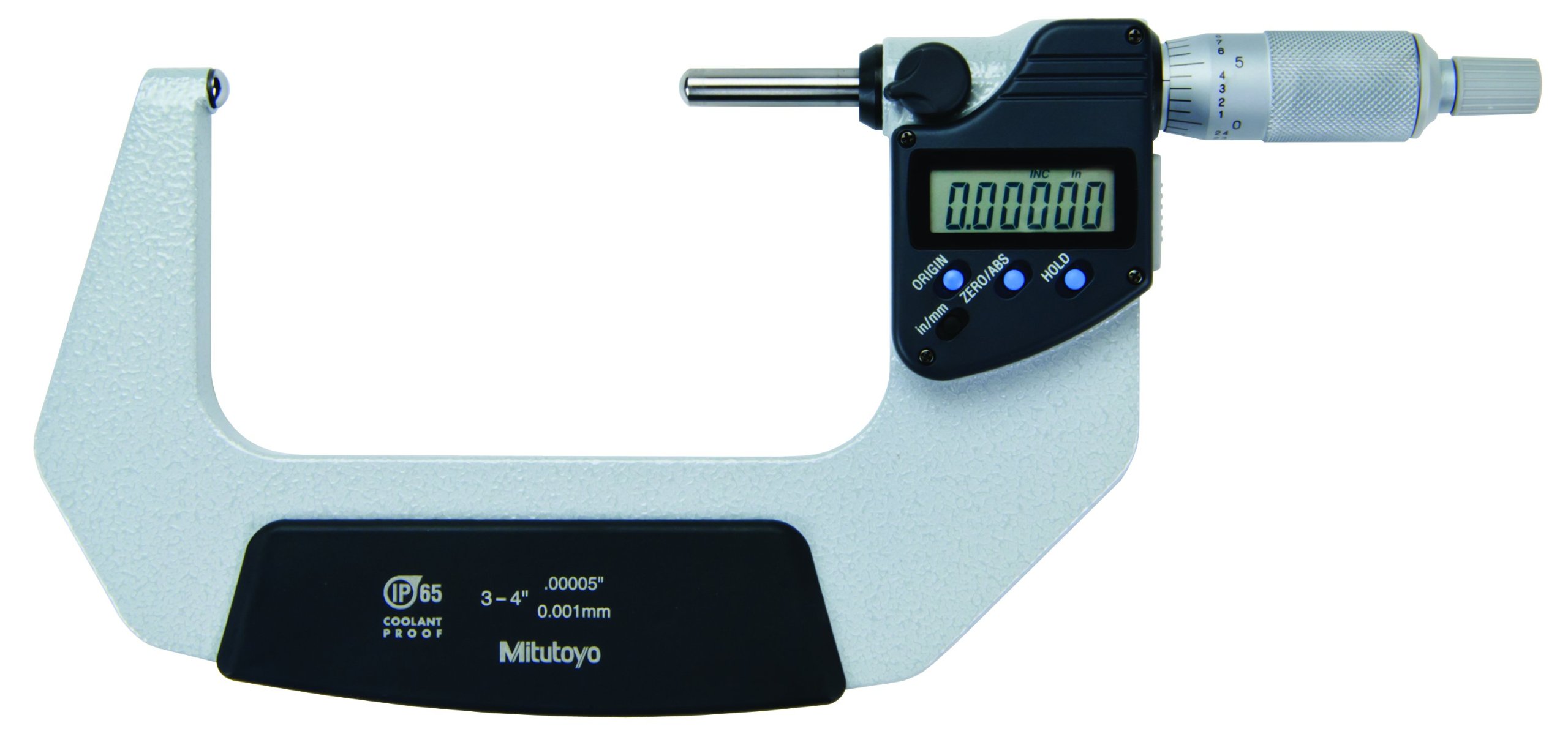

The Mitutoyo 395 series outside micrometer has spherical anvil and spindle faces appropriate for measuring the wall thickness of tubing. It also has a ratchet-stop mechanism, an LCD digital readout that converts between inches and metric with resolution to 0.00005” (0.001mm) for outside diameter (OD) measurement, and Statistical Process Control (SPC) data output to transmit results to a computer or external device. The output jack transmits SPC results to a computer through an interface cable (sold separately). The micrometer’s electronic microprocessor can hold measurements at any position, convert to absolute value, set a temporary zero position, and return to a true zero reading. The electronics housing has an Ingress Protection 65 (IP65) rating, for protection against penetration by dust, liquids, and coolant up to the force of a low-pressure (to 30 kilonewtons/meter-squared) water jet. The steel frame has a black, heat-insulated finish, and the thimble and sleeve have a glare-free, satin chrome rust- and glare-resistant finish. The micrometer’s knurled friction thimble and ratchet-stop mechanism to help provide uniform pressure for precise, repeatable measurement during adjustment. A lock nut helps ensure quick spindle locking. The unit comes with an SR44 battery and a fitted plastic case.

Micrometers are precision measuring instruments that use a calibrated screw to measure small distances. These measurements are translated into large rotations of the screw that are then able to be read from a scale or a dial. Micrometers are typically used in manufacturing, machining, and mechanical engineering. There are three types of micrometer: outside, inside, and depth. Outside micrometers may also be called micrometer calipers, and are used to measure the length, width, or outside diameter of an object. Inside micrometers are typically used to measure interior diameter, as in a hole. Depth micrometers measure the height, or depth, of any shape that has a step, groove, or slot.

Mitutoyo manufactures precision measuring tools, metrology equipment, and systems. The company was founded in Tokyo in 1934 and formed Mitutoyo America Corporation in 1963, which is headquartered in Aurora, IL.
