Mitutoyo Steel Rectangular Micrometer Inspection Gage Block Set, ASME Grade AS-1, 0.0625 - 2.0" Length (9 Blocks)

Be the first to review this item

ASIN B002SG7QSS

Specifications for this item
Inside Depth
3  inches
Overall Width
1.181  inches
Item Shape
Rectangular
Item Volume
108  Cubic Inches
Part Number
516-935-26
Item Depth
0.355 inches
Item Weight
1 pounds
Brand Name
Mitutoyo
Grade
ASME Grade AS-1
Number of Items
9
Specific Uses For Product
Gage Block Set
Material Type
Steel
UPC
603908370901 , 094706203247
EAN
0094706203247 , 0603908370901 , 4946368497631
UNSPSC Code
41111618
System of Measurement
Inch
Overall Length
0.0625 - 2.0  inches

This item is no longer available

Free Standard Shipping! on orders over $50.00.
(limited-time offer, certain restrictions apply) (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Can be used for checking spindle wear on outer diameter (OD) micrometers
  • Sized to check different degrees of spindle rotation
  • Steel blocks are made from high-carbon, high-chrome steel to reduce wear and corrosion
  • Thermally stabilized to reduce changes in gage block length over time
  • Laser-etched with individual serial number for traceability

Package Details

Shipping Weight: 1.9 pounds
Package Size: 9.8 x 5.1 x 1.7 inches

Product Description

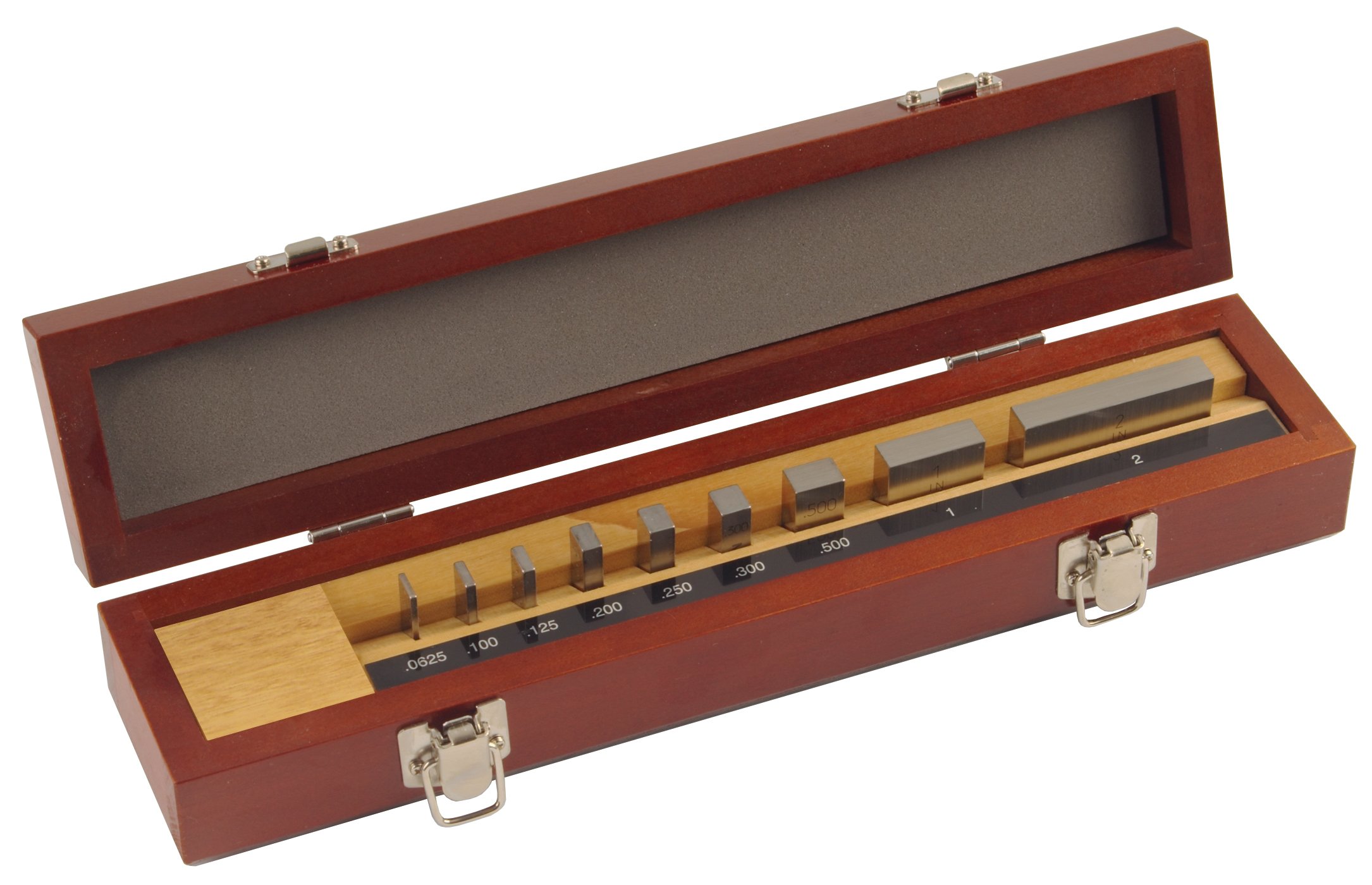

The Mitutoyo 516-935-26 gage block set includes 9 grade AS-1 steel rectangular gage blocks with nominal size engraved in inches.

Blocks included in the set measure .0625", .100", .125", .200", .250", .300", .500", 1", and 2". Grade AS-1 gage blocks are often used for calibrating and inspecting tools, instruments, and manufacturing gages.

Gage blocks (also called gauge blocks, Jo blocks, slip gauges, and Johansson gauges) are precision ground metal or ceramic blocks, used for calibrating measuring equipment and standardizing the measurement of length in manufacturing. Gauge blocks are square or rectangular in shape, with flat surfaces, and have an engraved unique identification number and length (provided in either inches or millimeters). They often come in sets with blocks of varying lengths, so that many different standard lengths can be created by stacking and wringing them. Wringing is the process of sliding blocks together with a small amount of oil, in order to create a longer surface.

The length of a gage block is usually slightly shorter than its stamped nominal length, to account for the thin layer of oil or wring film used when two or more blocks are wrung together. They are kept within a protective case, cleaned thoroughly between uses to prevent corrosion, and kept free of burrs and other damage that would decrease their accuracy. Temperature is another important consideration. Some gage blocks are vulnerable to thermal expansions and must be kept at room temperature (about 68 degrees F) to ensure their accuracy.

Gauge blocks are available in different grades, which refer to their tolerance or deviation from their nominal dimension. Grades are defined by the American National Standard for gauge blocks, the American Society of Mechanical Engineers (ASME) B89.1.9M for both length and flatness. Different grades are appropriate depending on the application and the required level of accuracy. ASME B89.1.9M also defines standards for parallelism and surface finish. A certificate of inspection and calibration is provided with each gauge block or set, specifying the deviation of the individual block from its nominal length.

Founded in Tokyo in 1934, Mitutoyo is a leader in the metrology field, producing high-quality measurement products including mechanical, dimensional gauging products, focusing on micrometers, calipers, indicators, and other measurement tools, as well as output gauges, interfaces, data collectors, and analysis software. Mitutoyo formed Mitutoyo America Corporation in 1963, which is headquartered in Aurora, Illinois, with additional locations in the U.S. and Canada.
