Mitutoyo Point Micrometer, Ratchet Stop, Inch

Be the first to review this item

Product Specifications
Manufacturer Series Number
Point Micrometers
Specification Met
IP65
Material Type
Carbide
UNSPSC Code
41111601
Brand Name
Mitutoyo
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Dec 19? Order in-stock items in the next 10 hrs 46 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-6 of 6
Range Resolution Measurement accuracy Part number ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All
Currently showing 1-6 of 6
0-1" 0.001" +/-0.00015" 112-189 B002SG7PTI yes $237.88 Buy Options
1-2" 0.001" +/-0.00015" 112-178 B003UATC6K yes $269.00 Buy Options
1-2" 0.001" +/-0.00015" 112-190 B003UATC6U Temporarily out of stock. Order now and we'll deliver when available. $299.00 Buy Options
1-2" 0.001" +/-0.00015" 112-226 B003UATC9C yes $192.00 Buy Options
1-2" 0.001" +/-0.00015" 112-238 B003UATC9M yes $239.00 Buy Options
2-3" 0.001" +/-0.00015" 112-191 B003UATC74 yes $252.00 Buy Options

Key Features

  • Pointed spindle and anvil for measuring grooves and keyways
  • Vernier scale in inch units for taking precise outside diameter (OD) measurements
  • Ratchet-stop mechanism helps provide uniform pressure for precise, repeatable measurements
  • Baked enamel finish for protection and durability of frame
  • High-grade tool steel construction for durability

Product Description

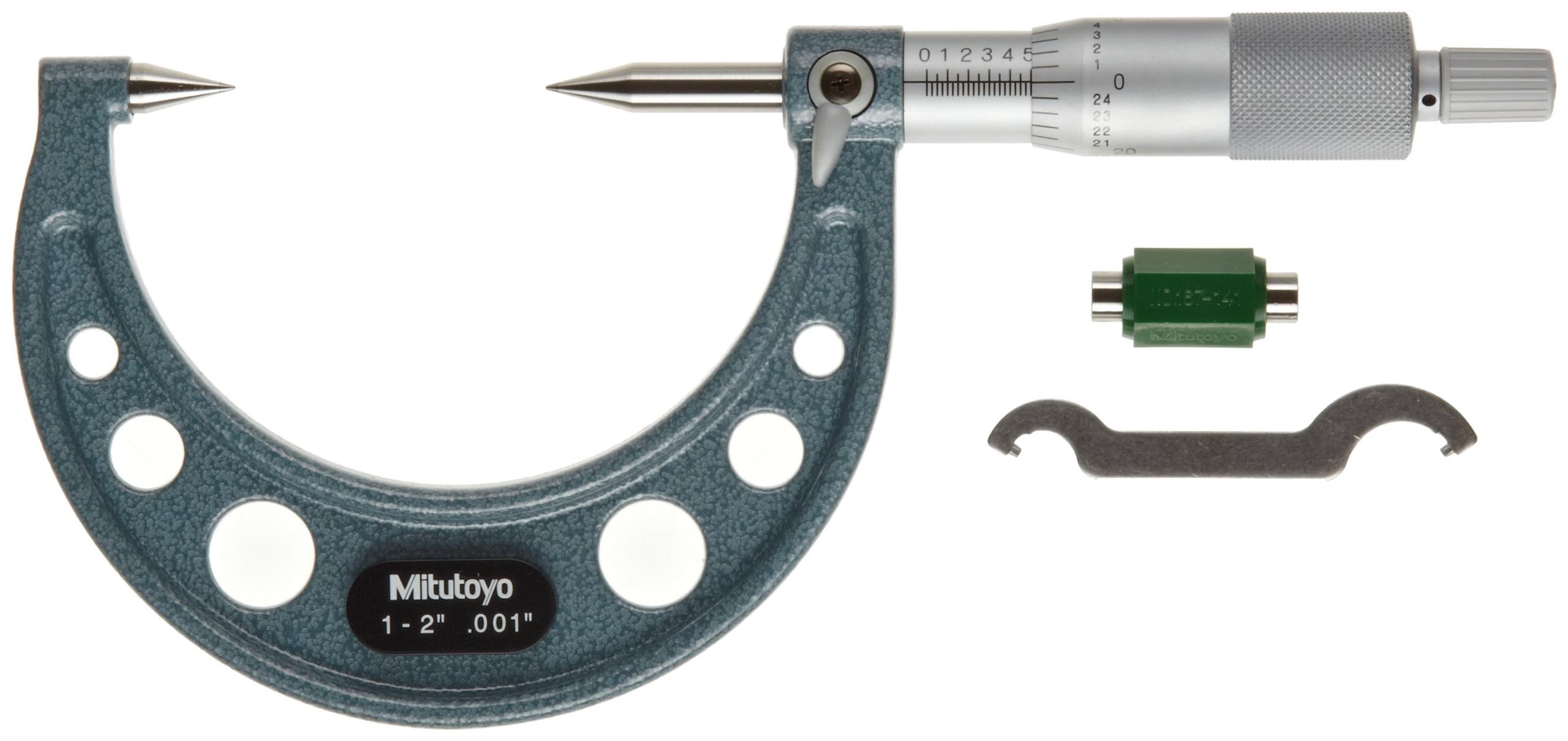

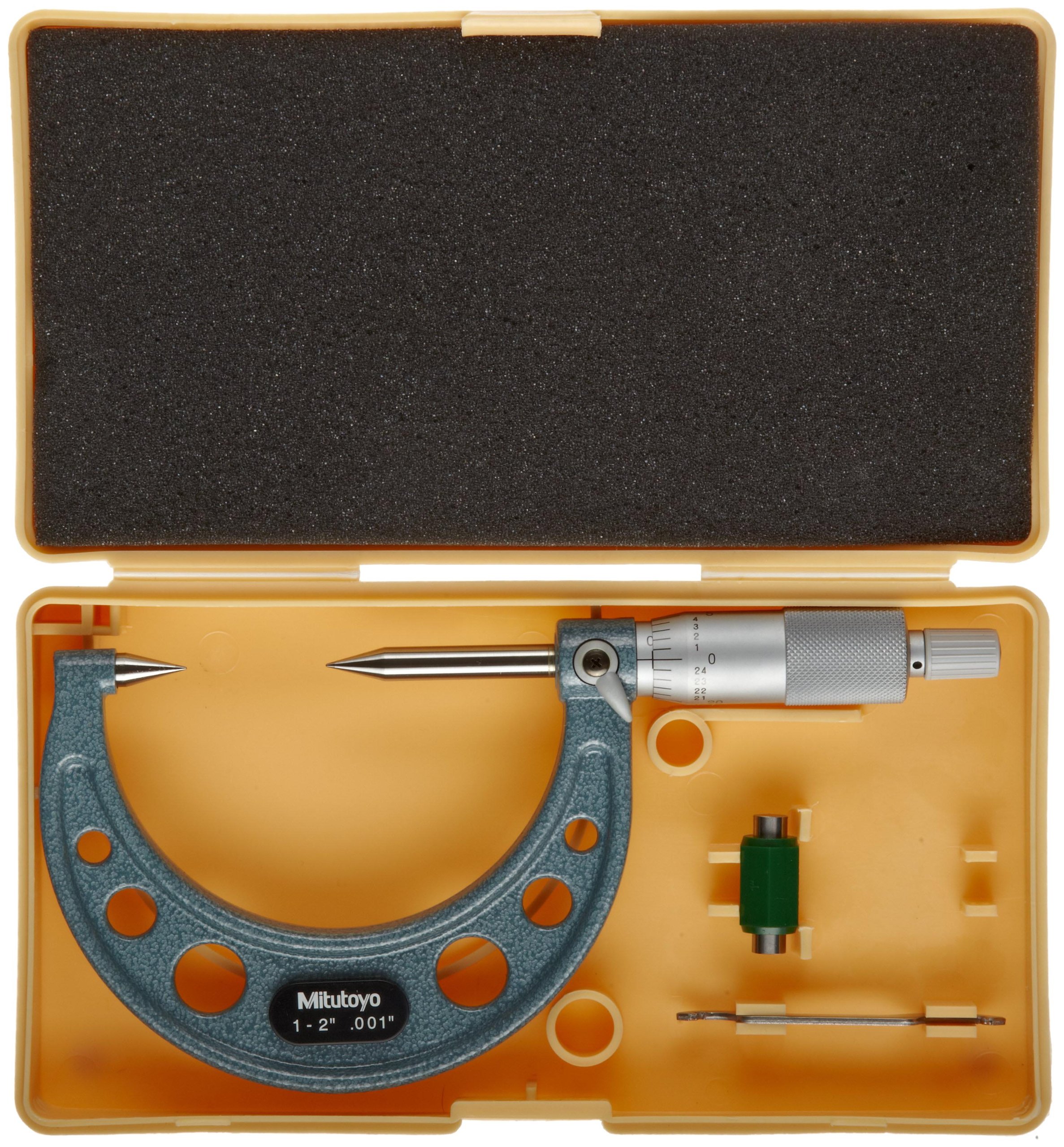

The Mitutoyo 112 series point micrometer has a pointed spindle and blade anvil for measuring grooves and keyways, a vernier scale in inch units graduated to 0.001” for taking precise outside diameter (OD) measurements and a ratchet-stop mechanism for uniform pressure during adjustment. The micrometer’s frame has a baked enamel finish for protection and durability. The spindle and anvil are made of hardened steel for durability. A spindle lock helps provide secure locking of the measurement position. The micrometer comes with a plastic case for storage.

Micrometers are precision measuring instruments that use a calibrated screw to measure small distances. These measurements are translated into large rotations of the screw that are then able to be read from a scale or a dial. Micrometers are typically used in manufacturing, machining, and mechanical engineering. There are three types of micrometer: outside, inside, and depth. Outside micrometers may also be called micrometer calipers, and are used to measure the length, width, or outside diameter of an object. Inside micrometers are typically used to measure interior diameter, as in a hole. Depth micrometers measure the height, or depth, of any shape that has a step, groove, or slot.

Mitutoyo manufactures precision measuring tools, metrology equipment, and systems. The company was founded in Tokyo in 1934 and formed Mitutoyo America Corporation in 1963, which is headquartered in Aurora, IL.
