Mitutoyo LCD Outside Micrometer, Interchangeable Anvils, Ratchet Stop, Inch/Metric

Be the first to review this item

Product Specifications
Manufacturer Series Number
Outside Micrometers
Material Type
Carbide
Output Type
SPC
Style Name
LCD
UNSPSC Code
41111601
Brand Name
Mitutoyo
System of Measurement
Inch and Metric

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Jul 28? Order in-stock items in the next 1 day 8 hrs 48 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-2 of 2
Range Accuracy Graduation Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All
Currently showing 1-2 of 2
0-6"/0-152.4mm +/-0.0002" 0.00005"/0.001mm 340-351-10 B002SG7QH4 2 $607.48 Buy Options
6-12"/152.4-304.8mm +/-0.0003" 0.0001"/0.001mm 340-352-10 B003UATHHY Usually ships in 1 to 2 months $749.68 Buy Options

Key Features

  • Bow-type micrometer for measurement of large outside dimensions
  • Includes interchangeable anvils for a diversified range of measurement
  • Digital, single-value readout LCD displays in inch and metric units for readability
  • Ratchet-stop mechanism helps provide uniform pressure for precise, repeatable measurements
  • Statistical Process Control (SPC) output transmits results to a computer or external device through an interface cable (sold separately)

Product Description

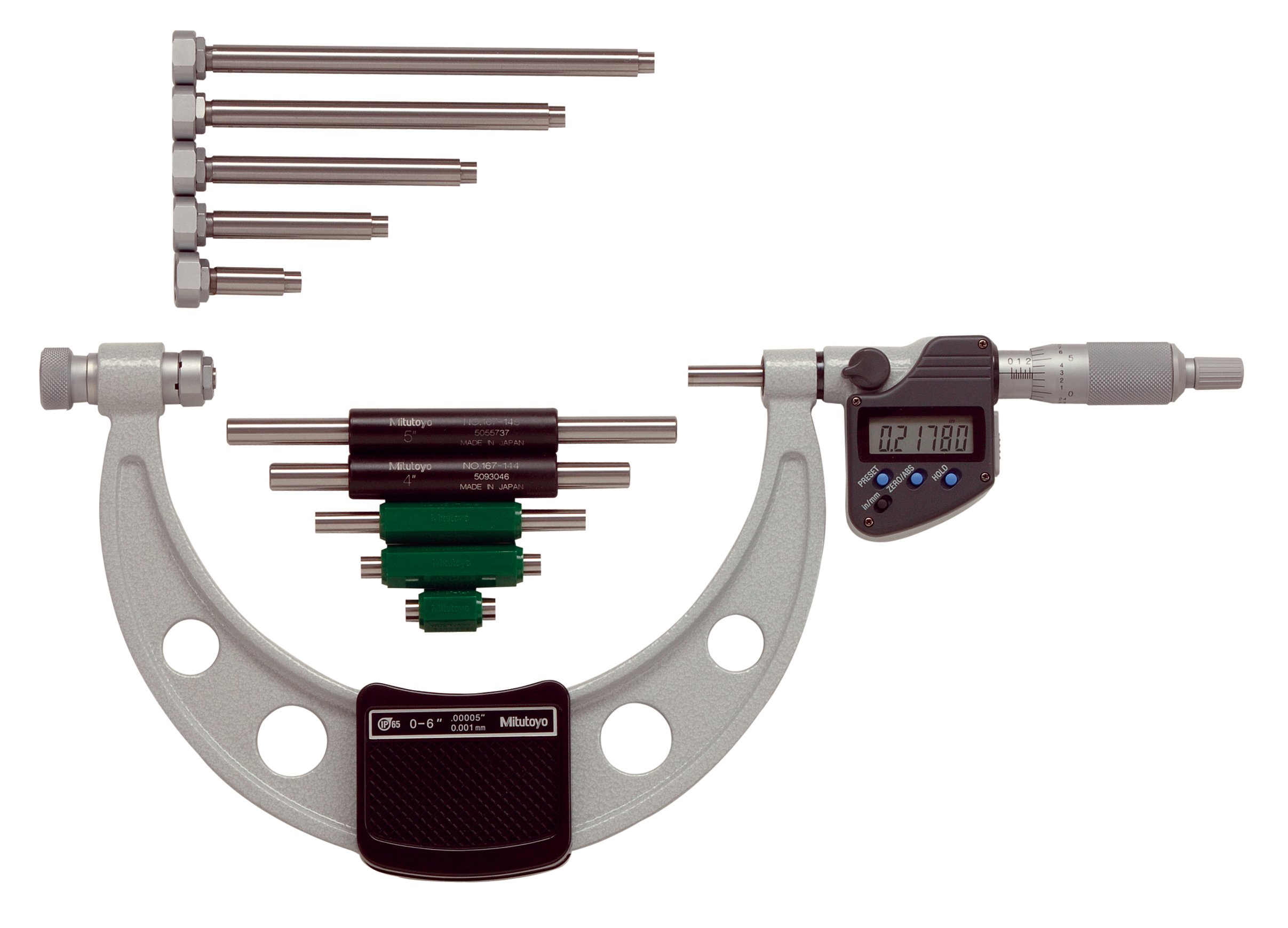

The Mitutoyo 340 series LCD outside micrometer has a bow-type frame and includes as set of six interchangeable anvils for a diversified range of measurement of large outside dimensions. It also has a ratchet-stop mechanism, an LCD digital readout that converts between inches and metric with resolution to 0.00005” (0.001mm) for outside diameter (OD) measurement, and Statistical Process Control (SPC) data output to transmit results to a computer or external device. The output jack transmits SPC results to a computer through an interface cable (sold separately).

The micrometer’s electronic microprocessor can hold measurements at any position, convert to absolute value, set a temporary zero position, and return to a true zero reading. The micrometer has an Ingress Protection 65 (IP65) rating, which means that components are resistant to penetration by dust and debris, and resistant to penetration by liquids and coolant up to the force of a low-pressure (to 30 kilonewtons/meter-squared) water jet. The frame has a baked enamel finish for protection and durability. A spindle lock helps provide secure locking of the measurement position. The unit comes with an SR44 battery, standards for zero-setting, and a fitted plastic case.

Micrometers are precision measuring instruments that use a calibrated screw to measure small distances. These measurements are translated into large rotations of the screw that are then able to be read from a scale or a dial. Micrometers are typically used in manufacturing, machining, and mechanical engineering. There are three types of micrometer: outside, inside, and depth. Outside micrometers may also be called micrometer calipers, and are used to measure the length, width, or outside diameter of an object. Inside micrometers are typically used to measure interior diameter, as in a hole. Depth micrometers measure the height, or depth, of any shape that has a step, groove, or slot.

Mitutoyo manufactures precision measuring tools, metrology equipment, and systems. The company was founded in Tokyo in 1934 and formed Mitutoyo America Corporation in 1963, which is headquartered in Aurora, IL.
