Mitutoyo LCD Blade Micrometer, Quickmike Type, Ratchet Stop, Inch/Metric

Be the first to review this item

Product Specifications
Manufacturer Series Number
Blade Micrometers
Material Type
Carbide
Style Name
LCD
UNSPSC Code
41111601
Brand Name
Mitutoyo
System of Measurement
Inch and Metric

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Jul 28? Order in-stock items in the next 1 day 12 hrs 44 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-2 of 2
Range Accuracy Graduation Specifications Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All
Currently showing 1-2 of 2
0-1.2"/0-30.48mm +/-0.00015" 0.00005"/0.001mm 0.75mm Tip 422-421 B003UATJFY 1 $913.48 Buy Options
1-2.2"/25.4-55.88mm +/-0.00015" 0.00005"/0.001mm 0.75mm Tip 422-422 B003UATJGI 1 $1,090.00 Buy Options

Key Features

  • Blade anvil and spindle for measurement of groove diameter of shafts and keyways
  • Digital, single-value readout LCD displays in inch and metric units for readability
  • Quickmike spindle feeds at a higher rate than conventional mechanism for productivity
  • Ratchet-stop mechanism helps provide uniform pressure for precise, repeatable measurement
  • High-grade tool steel construction for durability

Product Description

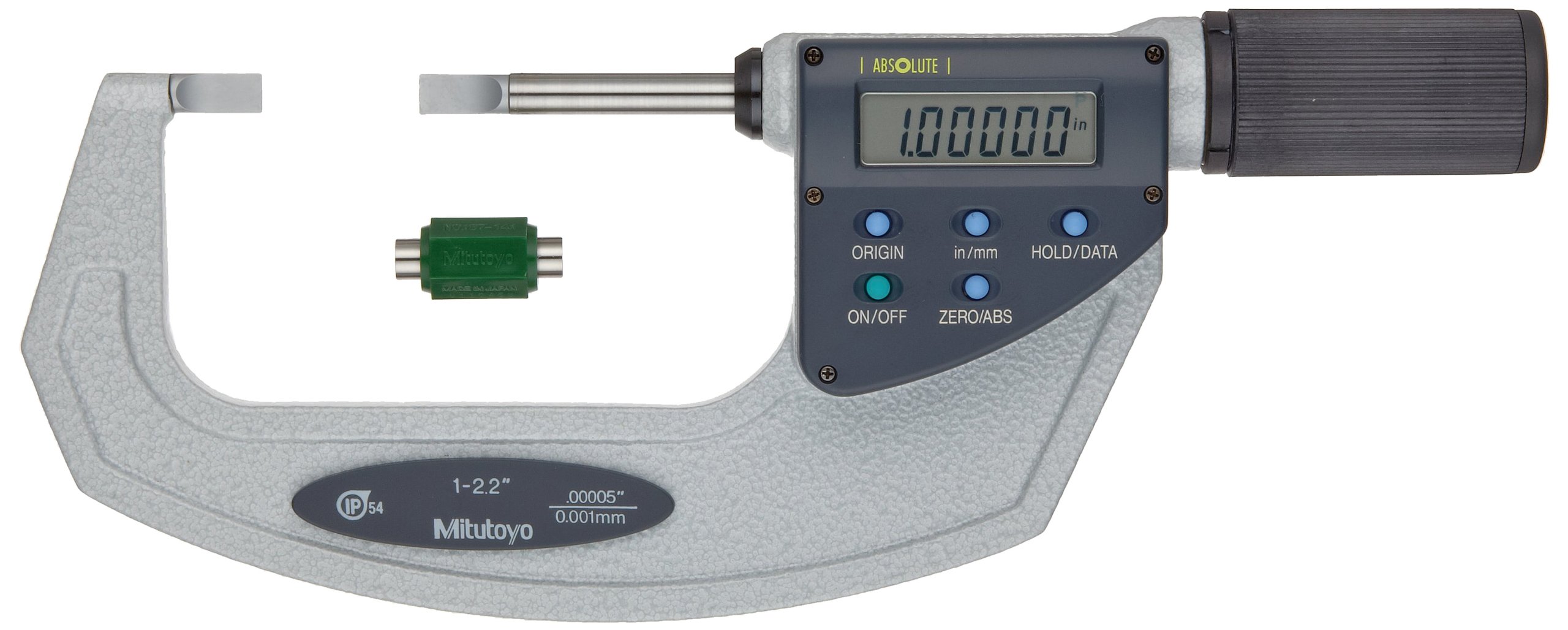

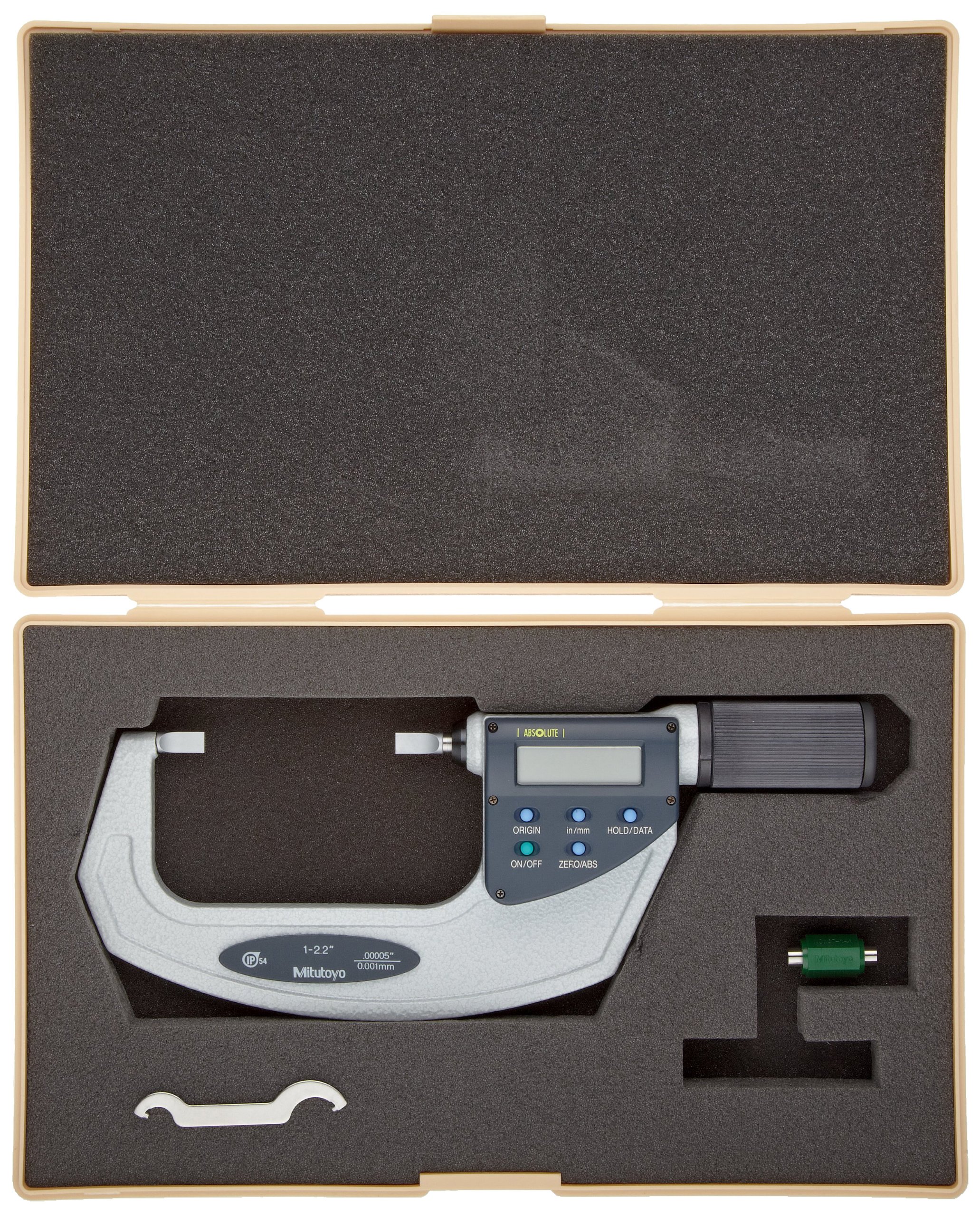

The Mitutoyo 422 series Quickmike-type LCD blade micrometer has a blade anvil and spindle for measurement of groove diameter of shafts and keyways. It also has a ratchet-stop mechanism for uniform adjustment, an LCD digital readout that converts between inches and metric with resolution to 0.00005” (0.001mm) for outside diameter (OD) measurement, and a spindle that feeds at a rate of 0.4” (10mm) per revolution for productivity. The micrometer’s electronic microprocessor can hold measurements at any position, convert to absolute value, set a temporary zero position, and return to a true zero reading. The frame is made of high-grade tool steel. The unit comes with an SR44 battery and a fitted plastic case.

Micrometers are precision measuring instruments that use a calibrated screw to measure small distances. These measurements are translated into large rotations of the screw that are then able to be read from a scale or a dial. Micrometers are typically used in manufacturing, machining, and mechanical engineering. There are three types of micrometer: outside, inside, and depth. Outside micrometers may also be called micrometer calipers, and are used to measure the length, width, or outside diameter of an object. Inside micrometers are typically used to measure interior diameter, as in a hole. Depth micrometers measure the height, or depth, of any shape that has a step, groove, or slot.

Mitutoyo manufactures precision measuring tools, metrology equipment, and systems. The company was founded in Tokyo in 1934 and formed Mitutoyo America Corporation in 1963, which is headquartered in Aurora, IL.
