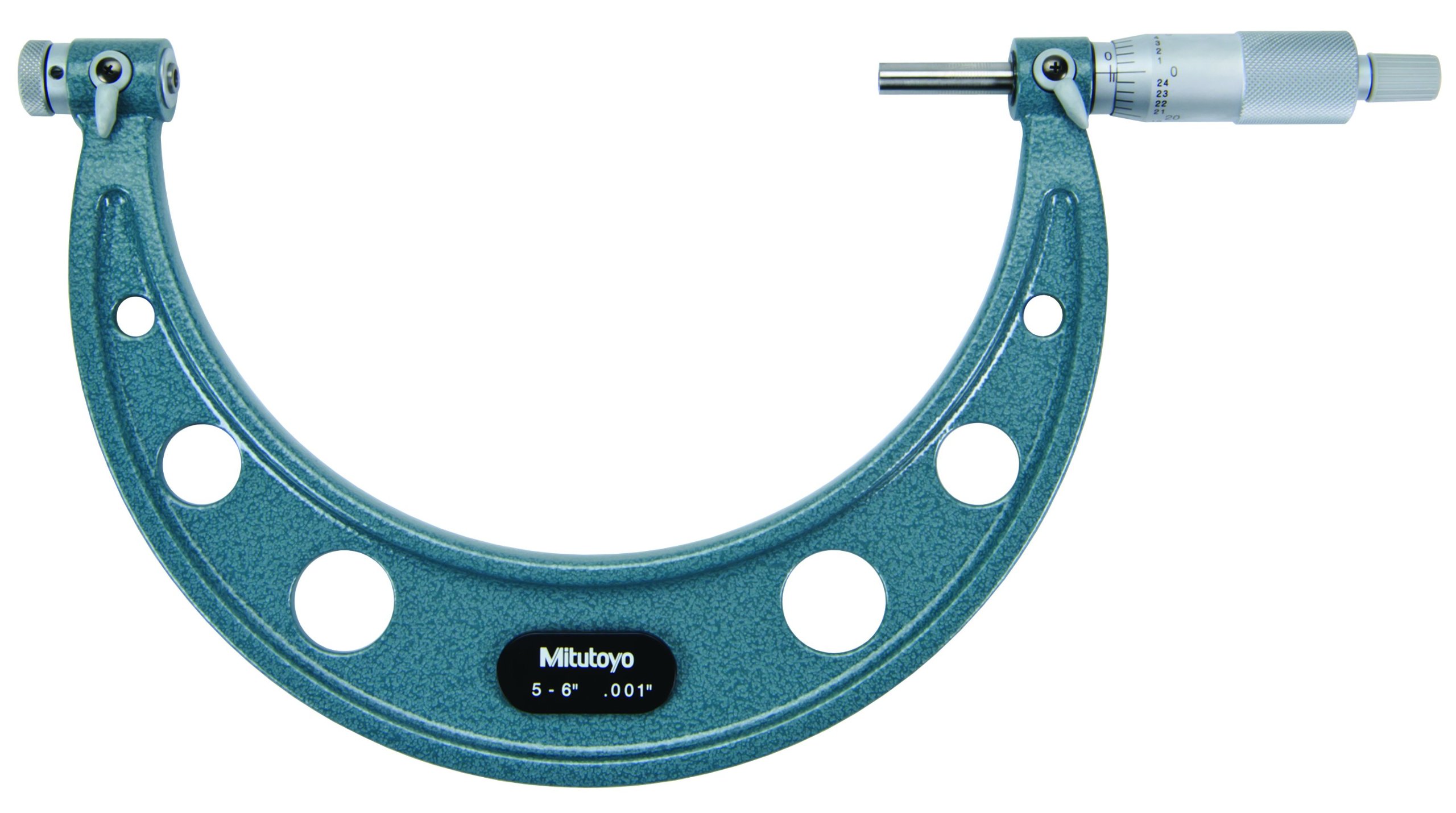

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Mitutoyo Screw Thread Micrometer, Interchangeable Anvil-Spindle Tip, Ratchet Stop, Inch

Be the first to review this item

Product Specifications
Manufacturer Series Number
Screw Thread Micrometers
Material Type
Steel
Style Name
Vernier
UNSPSC Code
41111601
Brand Name
Mitutoyo
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Jul 31? Order in-stock items in the next 9 hrs 37 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-3 of 3
Range Accuracy Graduation Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All
Currently showing 1-3 of 3
1-2" +/-0.0002" 0.001" 126-138 B0006J41U0 1 $444.28 Buy Options
4-5" +/-0.00025" 0.001" 126-141 B003UATD0U 1 $624.95 Buy Options
5-6" +/-0.00025" 0.001" 126-142 B003UATD14 1 $678.88 Buy Options

Key Features

  • For use with V-anvil and conical spindle inserts for measuring pitch diameters of screw threads (sold separately)
  • Vernier scale in inch units for taking precise outside diameter (OD) measurements
  • Ratchet-stop mechanism helps provide uniform pressure for precise, repeatable measurement
  • Satin chrome finish on thimble and sleeve helps resist rust and reduce glare
  • Hammertone, baked enamel finish for protection and durability of frame

Product Description

The Mitutoyo 126 series screw thread micrometer is for use with V-anvil and conical spindle inserts for measuring pitch diameters of screw threads (sold separately). It also has a vernier scale in inch units for taking precise outside diameter (OD) measurements, and a ratchet-stop mechanism to help provide uniform pressure for precise, repeatable measurement during adjustment.

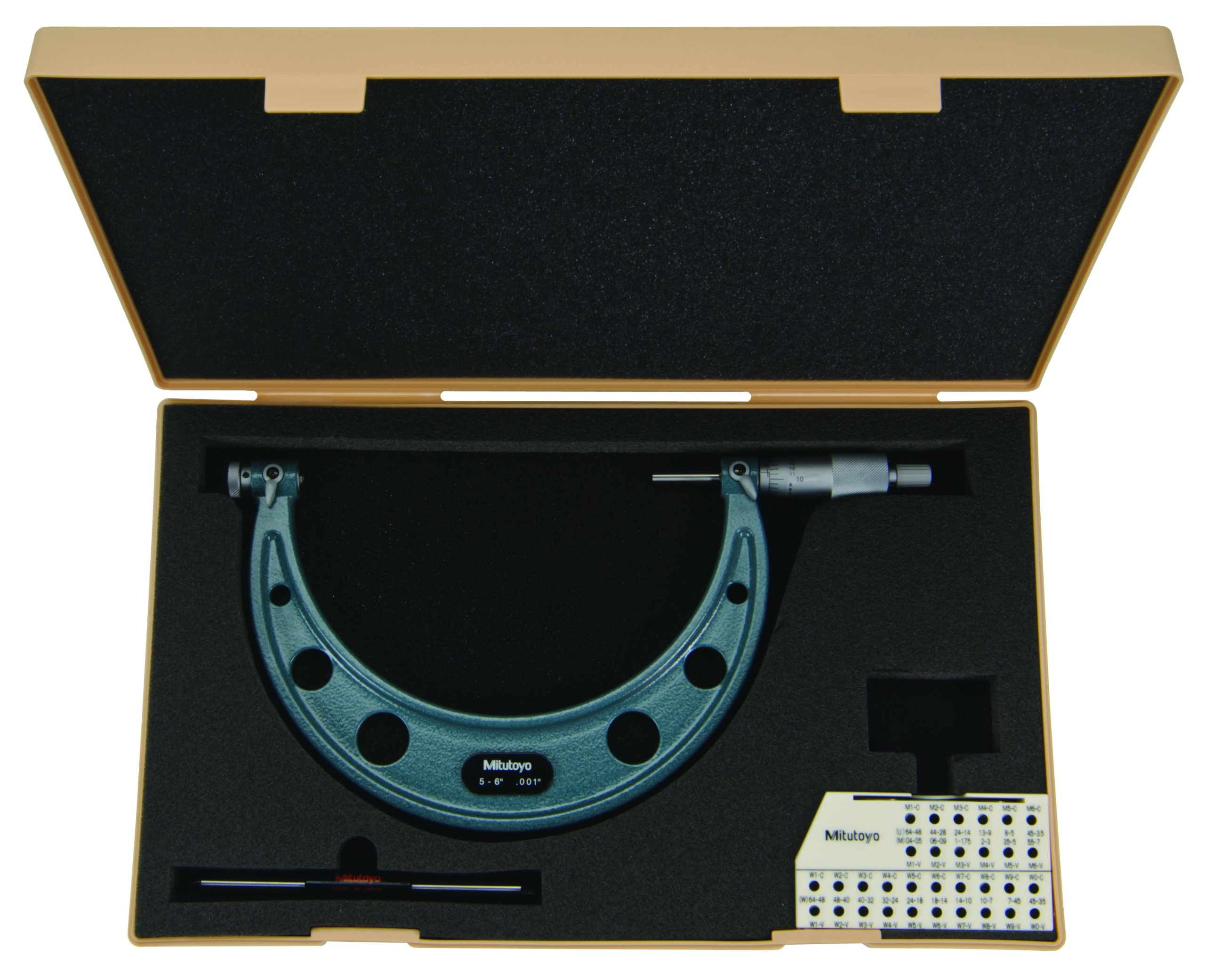

The micrometer’s frame has a Hammertone, baked enamel finish for protection and durability. The vernier scale on the thimble and sleeve is graduated to 0.001”, and a satin chrome rust- and glare-resistant finish. The micrometer’s ratchet-stop mechanism helps provide uniform pressure during adjustment for precise, repeatable measurement. A spindle lock helps provide secure locking of the measurement position, while the anvil holder has a fine screw adjustment and locking device. The micrometer comes with a plastic case for storage.

Micrometers are precision measuring instruments that use a calibrated screw to measure small distances. These measurements are translated into large rotations of the screw that are then able to be read from a scale or a dial. Micrometers are typically used in manufacturing, machining, and mechanical engineering. There are three types of micrometer: outside, inside, and depth. Outside micrometers may also be called micrometer calipers, and are used to measure the length, width, or outside diameter of an object. Inside micrometers are typically used to measure interior diameter, as in a hole. Depth micrometers measure the height, or depth, of any shape that has a step, groove, or slot.

Mitutoyo manufactures precision measuring tools, metrology equipment, and systems. The company was founded in Tokyo in 1934 and formed Mitutoyo America Corporation in 1963, which is headquartered in Aurora, IL.
