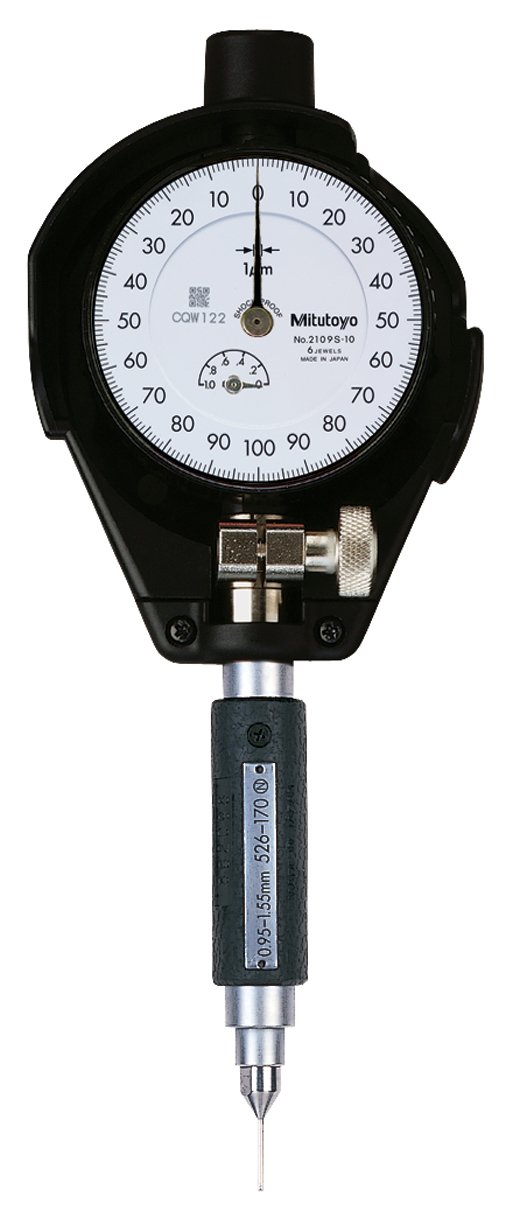

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Mitutoyo Dial Bore Gauge for Extra Small Holes, Metric

Be the first to review this item

Product Specifications
Manufacturer Series Number
Bore Gage
UNSPSC Code
41113901
Style Name
Dial
Brand Name
Mitutoyo
System of Measurement
Metric

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Aug 1? Order in-stock items in the next 17 hrs 13 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-13 of 13
Range Accuracy Graduation Specifications Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All
Currently showing 1-13 of 13
0.95-1.55mm +/-0.004mm 0.001mm - 526-172 B003U9VYB2 2 $2,890.00 Buy Options
0.95-1.55mm +/-0.004mm   Without Dial Gage or Protector Cover 526-170 B003M2MDIA Usually ships in 1 to 2 months $2,620.00 Buy Options
0.95-1.55mm +/-0.004mm 0.01mm - 526-173 B003U9VYBC Usually ships in 1 to 2 months $2,790.00 Buy Options
1.5-4mm +/-0.004mm 0.001mm - 526-162 B003U9VY9E Usually ships in 1 to 2 months $3,720.00 Buy Options
1.5-4mm +/-0.004mm   Without Dial Gage or Protector Cover 526-160 B003M2O9X2 Usually ships in 1 to 2 months $3,345.00 Buy Options
1.5-4mm +/-0.004mm 0.01mm - 526-163 B003U9VYA8 Usually ships in 1 to 2 months $3,630.00 Buy Options
3.7-7.3mm +/-0.004mm 0.01mm - 526-153 B003U9VY8K Usually ships in 1 to 2 months $2,280.00 Buy Options
3.7-7.3mm +/-0.004mm   Without Dial Gage or Protector Cover 526-150 B003M2JCYS 1 $2,015.00 Buy Options
3.7-7.3mm +/-0.004mm 0.001mm - 526-152 B003U9VY8A 1 $2,320.00 Buy Options
7-10mm +/-0.004mm 0.01mm - 526-126 B003U9VY7G 1 $461.00 Buy Options
7-10mm +/-0.004mm 0.001mm - 526-124 B003U9VY6M 1 $518.00 Buy Options
10-18mm +/-0.004mm 0.01mm - 526-127 B003U9VY7Q 4 $320.73 Buy Options
10-18mm +/-0.004mm 0.001mm - 526-125 B003U9VY76 2 $479.00 Buy Options

Key Features

  • Accurate to + or - 0.004 mm
  • Split ball design for inside diameter measurements and detection of out-of-roundness problems
  • Stainless steel contact points for high wear resistance

Product Description

The Mitutoyo Dial Bore Gauge for Extra Small Holes is accurate to + or - 0.004mm. This direct-measuring gauge uses a split ball design to measure the inside diameter of holes and identify out-of-roundness problems with stainless steel contact points for high wear resistance.

Bore gauges measure holes, or bores, in a workpiece. They can measure the interior diameter of a hole at any depth, while internal micrometers can only measure to the depth of their teeth. Bore gauges are typically calibrated with a setting ring and come in two types: simple and direct-measuring. Simple bore gauges are used with a caliper to transfer the hole measurement, while the more complex gauges take the measurement directly, and display it through a vernier, dial, or digital display. Bore gauges have a two- or three-point contact, indicating how many points on the gauge head touch the inside of the bore. Two-point contacts are better at measuring ovality, while three-point contacts are used to measure lobing or triangular form error. Pistol-grip bore gauges are used for fast, single-handed operation with repeatable results from one operator to another. Bore gauges can also be used in special applications, such as measuring threads, spline pitch diameters, and deep bores.

Mitutoyo manufactures precision measuring tools, metrology equipment, and related systems. The company, founded in Tokyo in 1934, formed Mitutoyo America Corporation in 1963 with headquarters in Aurora, IL.
